HEATING SYSTEM

Go to Split View

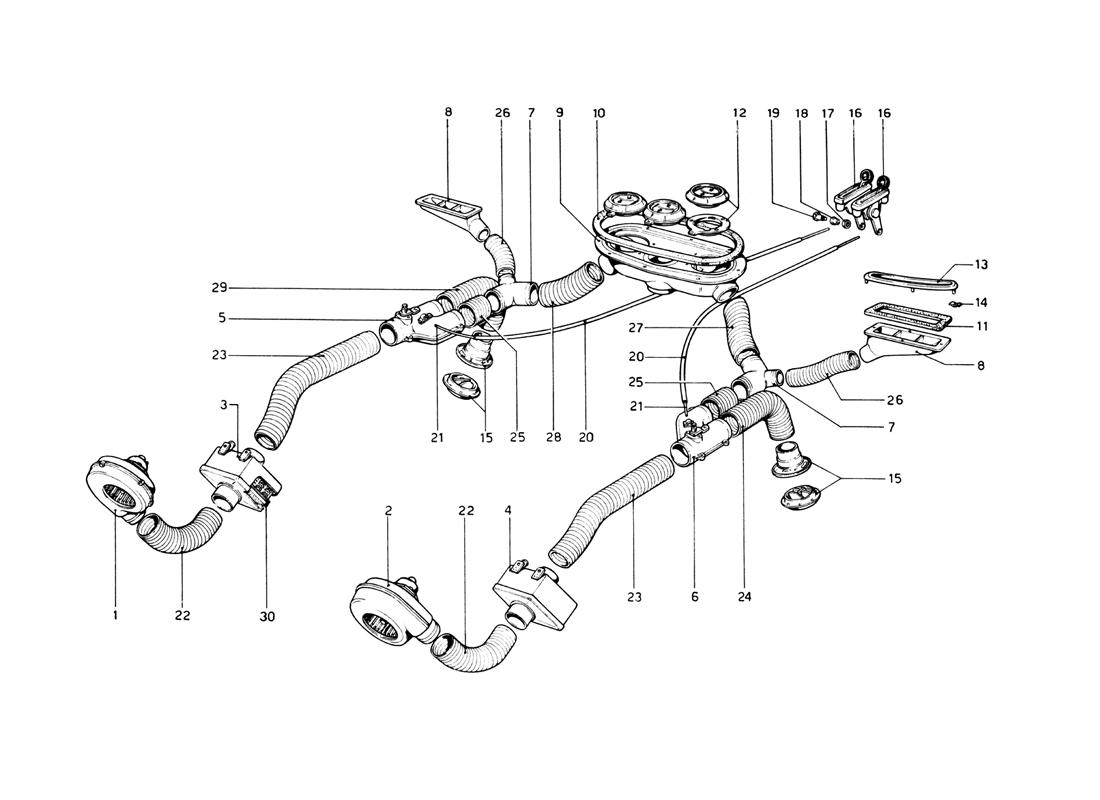

HEATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 50326206 *Qty: 1 Elettroventilatore Dx $339.60
Location: 2 Prev | Next Part: 50326305 *Qty: 1 Elettroventilatore Sx $339.60
Location: 3 Prev | Next Part: 50329903 *Qty: 1 Riscaldatore Dx $507.12
Location: 4 Prev | Next Part: 50330000 *Qty: 1 Riscaldatore Sx $801.45
Location: 5 Prev | Next Part: 50021708 *Qty: 1 Deviatore Dx $253.56
Location: 6 Prev | Next Part: 50021807 *Qty: 1 Deviatore Sx Call
Location: 7 Prev | Next Part: 60153608 *Qty: 2 Raccordo $17.89
Location: 8 Prev | Next Part: 50022904 *Qty: 2 Bocchetta uscita aria laterale $174.54
Location: 9 Prev | Next Part: 20142709 *Qty: 1 Distributore aria Call
Location: 10 Prev | Next Part: 50091503 *Qty: 1 Guarnizione $4.08
Location: 11 Prev | Next Part: 50091602 *Qty: 2 Guarnizione $4.52
Location: 12 Prev | Next Part: 50318302 *Qty: 3 Diffusore Call
Location: 13 Prev | Next Part: 50030105 *Qty: 2 Diffusore laterale $47.09
Location: 14 Prev | Next Part: 20043204 *Qty: 8 Molletta Call
Location: 15 Prev | Next Part: 50318807 *Qty: 2 Diffusore inferiore Superseded
Location: 16 Prev | Next Part: 50127406 *Qty: 2 Levetta comando defroster $86.26
Location: 17 Prev | Next Part: 10794011 *Qty: 2 Dado $0.90
Location: 18 Prev | Next Part: 20046900 *Qty: 2 Boccola $3.17
Location: 19 Prev | Next Part: 20091609 *Qty: 2 Vite $3.63
Location: 20 Prev | Next Part: 50100908 *Qty: 2 Guaina per cavo $16.76
Location: 21 Prev | Next Part: 50101104 *Qty: 2 Cavo comando defroster $9.96
Location: 22 Prev | Next Part: 50019207 *Qty: 2 Tubo $19.68
Location: 23 Prev | Next Part: 50019603 *Qty: 2 Tubo $125.87
Location: 24 Prev | Next Part: 50019405 *Qty: 1 Tubo Sx $35.54
Location: 25 Prev | Next Part: 50021906 *Qty: 2 Tubo $21.04
Location: 26 Prev | Next Part: 50019108 *Qty: 2 Tubo $7.00
Location: 27 Prev | Next Part: 50347103 *Qty: 1 Tubo Sx $54.80
Location: 28 Prev | Next Part: 50019207 *Qty: 1 Tubo Dx $19.68
Location: 29 Prev | Next Part: 50347202 *Qty: 1 Tubo Dx $54.80
Location: 30 Prev | Next Part: 60151909 *Qty: 2 Filtro riscaldatore Superseded

* Quantity shown indicates the number of pieces used in the diagram.
