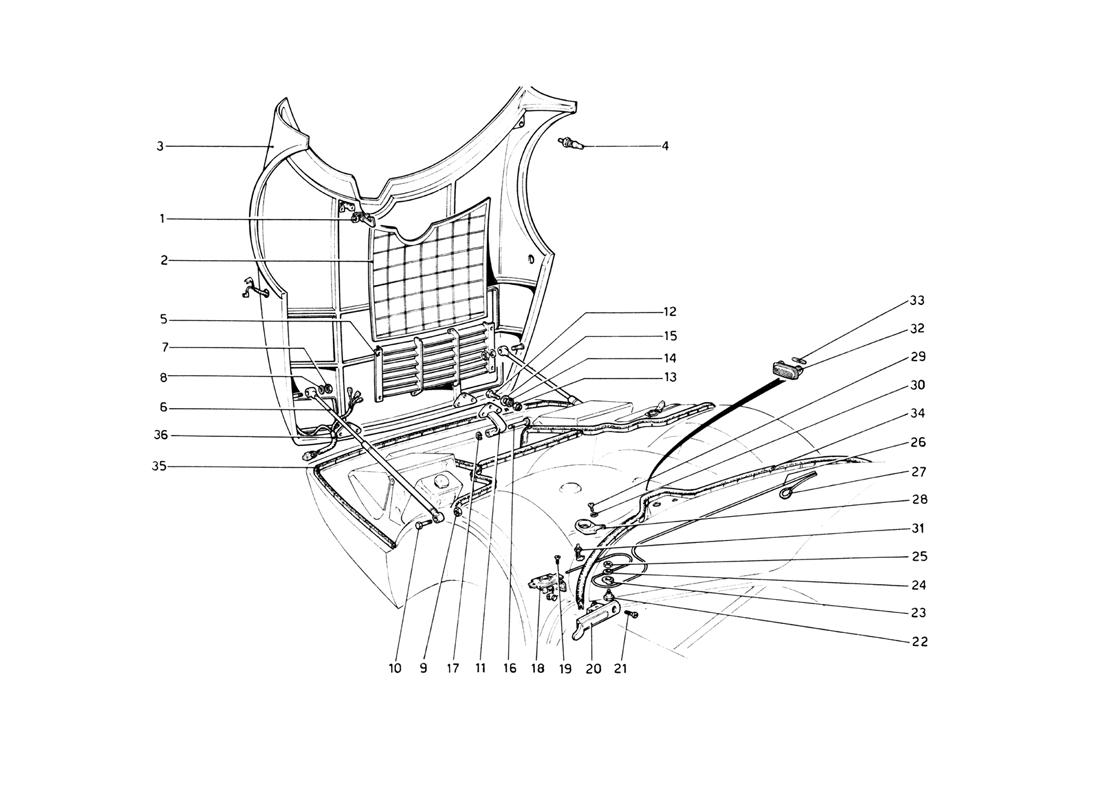

FRONT COMPARTMENT LID

Go to Split View

FRONT COMPARTMENT LID

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 50097509 *Qty: 1 Gancio di sicurezza Call
Location: 2 Prev | Next Part: 50200807 *Qty: 1 Tappeto cofano
Non vale per GD
Call
Location: 2 Prev | Next Part: 50201201 *Qty: 1 Tappeto cofano
Vale per GD
$401.85
Location: 3 Prev | Next Part: 50012202 *Qty: 1 Cofano anteriore
Non vale per GD
Call
Location: 3 Prev | Next Part: 50165000 *Qty: 1 Cofano anteriore
Vale per GD
Superseded
Location: 4 Prev | Next Part: 50035708 *Qty: 2 Perno per serratura Call
Location: 5 Prev | Next Part: 50006204 *Qty: 1 Griglia cofano anteriore $1,731.36
Location: 6 Prev | Next Part: 50014604 *Qty: 2 Ammortizzatore Superseded
Location: 7 Prev | Next Part: 16104111 *Qty: 2 Dado Superseded
Location: 8 Prev | Next Part: 20149100 *Qty: 2 Rondella Call
Location: 9 Prev | Next Part: 12574221 *Qty: 2 Dado Superseded
Location: 10 Prev | Next Part: 10903026 *Qty: 2 Vite Call
Location: 11 Prev | Next Part: 50028208 *Qty: 2 Cerniera Superseded
Location: 12 Prev | Next Part: 16043211 *Qty: 6 Vite $0.90
Location: 13 Prev | Next Part: 16100811 *Qty: 6 Dado Superseded
Location: 14 Prev | Next Part: 10516670 *Qty: 6 Rondella spaccata $0.90
Location: 15 Prev | Next Part: 10519621 *Qty: 6 Rondella tranciata $0.90
Location: 16 Prev | Next Part: 50097707 *Qty: 2 Perno Call
Location: 17 Prev | Next Part: 11065675 *Qty: 2 Seeger Superseded
Location: 18 Prev | Next Part: 50112507 *Qty: 2 Serratura cofano anteriore Call
Location: 19 Prev | Next Part: 20148201 *Qty: 4 Vite Call
Location: 20 Prev | Next Part: 50036508 *Qty: 1 Maniglia apertura cofano Call
Location: 21 Prev | Next Part: 13274006 *Qty: 2 Vite Call
Location: 22 Prev | Next Part: 50093509 *Qty: 1 Perno $8.60
Location: 23 Prev | Next Part: 50093400 *Qty: 1 Boccola $3.85
Location: 24 Prev | Next Part: 11196270 *Qty: 1 Rondella Call
Location: 25 Prev | Next Part: 10794011 *Qty: 1 Dado $0.90
Location: 26 Prev | Next Part: 50036805 *Qty: 1 Cavo $22.20
Location: 27 Prev | Next Part: 50036904 *Qty: 2 Cavo emergenza $15.12
Location: 28 Prev | Next Part: 50097400 *Qty: 1 Staffa per gancio di sicurezza Call
Location: 29 Prev | Next Part: 10979411 *Qty: 2 Vite Superseded
Location: 30 Prev | Next Part: 10615470 *Qty: 2 Rondella Call
Location: 31 Prev | Next Part: 20069704 *Qty: 1 Pulsante plafoniera Superseded
Location: 32 Prev | Next Part: 20144309 *Qty: 1 Plafoniera Call
Location: 33 Prev | Next Part: 50100205 *Qty: 2 Lampada Call
Location: 34 Prev | Next Part: 50044502 *Qty: 1 Guarnizione Call
Location: 35 Prev | Next Part: 50156108 *Qty: 1 Guarnizione $122.37
Location: 36 Prev | Next Part: 50145101 *Qty: 1 Cavo collegamento luci ant. Sx
Non vale per GD-D
Call
Location: 36 Prev | Next Part: 50179506 *Qty: 1 Cavo collegamento luci ant. Sx
Vale per GD-D
Call
Location: 36 Prev | Next Part: 50145002 *Qty: 1 Cavo collegamento luci ant. Dx
Non vale per GD-D
$43.25
Location: 36 Prev | Next Part: 50179407 *Qty: 1 Cavo collegamento luci ant. Dx
Vale per GD-D
$109.23

* Quantity shown indicates the number of pieces used in the diagram.
