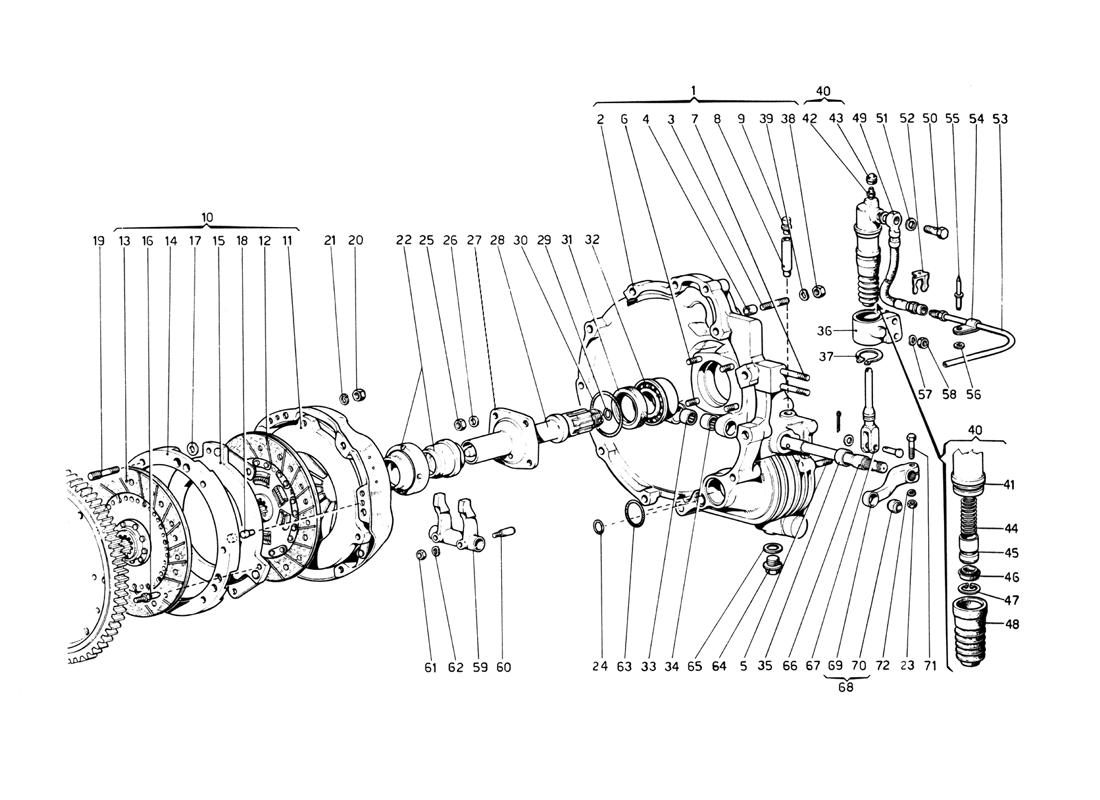

CLUTCH AND CONTROLS

Go to Split View

CLUTCH AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 111304 *Qty: 1 Campana frizione completa $6,675.48
Location: 2 Prev | Next Part: 109338 *Qty: 1 Carnpana frizione Call
Location: 3 Prev | Next Part: 13544221 *Qty: 2 THREADED STUD Superseded
Location: 4 Prev | Next Part: 102704 *Qty: 2 Grano $2.18
Location: 5 Prev | Next Part: 13544021 *Qty: 8 THREADED STUD $1.65
Location: 6 Prev | Next Part: 13543021 *Qty: 4 THREADED STUD $1.32
Location: 7 Prev | Next Part: 13544121 *Qty: 2 THREADED STUD Superseded
Location: 8 Prev | Next Part: 109789 *Qty: 1 Prolunga per sfiatatoio $40.69
Location: 9 Prev | Next Part: 13411990 *Qty: 1 Sfiatatoio $4.25
Location: 10 Prev | Next Part: 109460 *Qty: 1 Frizione da 8? completa $2,213.06
Location: 11 Prev | Next Part: 109461 *Qty: 1 Spingidisco frizione Superseded
Location: 12 Prev | Next Part: 109463 *Qty: 1 Disco frizione con molle parastrappi Superseded
Location: 13 Prev | Next Part: 109462 *Qty: 1 Disco frizione senza molle parastrappi Superseded
Location: 14 Prev | Next Part: 108515 *Qty: 1 Anello distanziale $539.96
Location: 15 Prev | Next Part: 109464 *Qty: 1 Anello intermedio $679.71
Location: 16 Prev | Next Part: 109465 *Qty: 3 Colonnetta filettata $20.83
Location: 17 Prev | Next Part: 109466 *Qty: 6 Rondella distanziale Call
Location: 18 Prev | Next Part: 109880 *Qty: 3 Grano centraggio spingidisco $27.03
Location: 19 Prev | Next Part: 110019 *Qty: 6 Prigioniero fissaggio frizione al volano $34.41
Location: 20 Prev | Next Part: 16100821 *Qty: 6 Dado $3.46
Location: 21 Prev | Next Part: 10516670 *Qty: 6 Rondella $0.90
Location: 22 Prev | Next Part: 111307 *Qty: 1 Reggispinta frizione completo $659.81
Location: 23 Prev | Next Part: 10516671 *Qty: 1 Rondella Superseded
Location: 24 Prev | Next Part: 104747 *Qty: 1 Anello di tenuta $1.48
Location: 25 Prev | Next Part: 16102321 *Qty: 4 Dado $0.90
Location: 26 Prev | Next Part: 10516671 *Qty: 4 Rondella Superseded
Location: 27 Prev | Next Part: 109333 *Qty: 1 Flangia con manicotto Superseded
Location: 28 Prev | Next Part: 109341 *Qty: 1 Albero frizione $1,265.40
Location: 29 Prev | Next Part: 109342 *Qty: 1 Anello di spallamento $1.07
Location: 30 Prev | Next Part: 109334 *Qty: 1 Anello di tenuta $4.41
Location: 31 Prev | Next Part: 109340 *Qty: 1 Anello di tenuta $32.55
Location: 32 Prev | Next Part: 103042 *Qty: 1 Cuscinetto $242.28
Location: 33 Prev | Next Part: 107926 *Qty: 1 Astuccio a rullini $6.33
Location: 34 Prev | Next Part: 107925 *Qty: 1 Astuccio a rullini $21.76
Location: 35 Prev | Next Part: 107924 *Qty: 1 Astuccio a rullini Call
Location: 36 Prev | Next Part: 109496 *Qty: 1 Supporto cilindretto $655.61
Location: 37 Prev | Next Part: 11068475 *Qty: 1 Seeger arresto cilindretto al supporto $2.48
Location: 38 Prev | Next Part: 16100821 *Qty: 10 Dado $3.46
Location: 39 Prev | Next Part: 12601371 *Qty: 10 Rondella Superseded
Location: 40 Prev | Next Part: 107867 *Qty: 1 Cilindretto comando frizione ? 13/16" completo $537.94
Location: 41 Prev | Next Part: 111272 *Qty: 1 Corpo cilindretto Call
Location: 42 Prev | Next Part: 111271 *Qty: 1 Valvola di spurgo $24.45
Location: 43 Prev | Next Part: 111271 *Qty: 1 Cappuccio valvola di spurgo $24.45
Location: 44 Prev | Next Part: 111273 *Qty: 1 Molla $12.23
Location: 45 Prev | Next Part: 111274 *Qty: 1 Cilindretto Call
Location: 46 Prev | Next Part: 111275 *Qty: 1 Anello tenuta sul cilindretto Call
Location: 47 Prev | Next Part: 111277 *Qty: 1 Seeger $1.32
Location: 48 Prev | Next Part: 111276 *Qty: 1 Soffietto Call
Location: 49 Prev | Next Part: 108865 *Qty: 1 Tubo flessibile $222.98
Location: 50 Prev | Next Part: 108868 *Qty: 1 Bocchettone $51.18
Location: 51 Prev | Next Part: 10298460 *Qty: 2 Guarnizione $0.90
Location: 52 Prev | Next Part: 110810 *Qty: 1 Piastrina elastica $1.55
Location: 53 Prev | Next Part: 108864 *Qty: 1 Tubo comando frizione Call
Location: 54 Prev | Next Part: 10115300 *Qty: 2 Fascetta
Vale dopo esaur. n. 105933
$0.97
Location: 54 Prev | Next Part: 105933 *Qty: 2 Fascetta
Vale fino esaurimento
Superseded
Location: 55 Prev | Next Part: 100033 *Qty: 2 Rivetto $0.90
Location: 56 Prev | Next Part: 12642801 *Qty: 2 Rondella $0.90
Location: 57 Prev | Next Part: 12601371 *Qty: 2 Rondella Superseded
Location: 58 Prev | Next Part: 16100821 *Qty: 2 Dado $3.46
Location: 59 Prev | Next Part: 108428 *Qty: 1 Leva comando frizione Superseded
Location: 60 Prev | Next Part: 108429 *Qty: 2 Spina conica $58.30
Location: 61 Prev | Next Part: 12574121 *Qty: 1 Dado Superseded
Location: 62 Prev | Next Part: 108430 *Qty: 2 Rondella $6.33
Location: 63 Prev | Next Part: 104756 *Qty: 1 Anello di tenuta $9.44
Location: 63 Prev | Next Part: 109489 *Qty: 1 Leva disinnesto frizione completa $444.03
Location: 64 Prev | Next Part: 14326540 *Qty: 1 Tappo scarico olio Call
Location: 65 Prev | Next Part: 108427 *Qty: 1 Alberino disinnesto frizione Call
Location: 65 Prev | Next Part: 10263460 *Qty: 1 Guarnizione Superseded
Location: 67 Prev | Next Part: 109527 *Qty: 1 Puntalino Call
Location: 69 Prev | Next Part: 109488 *Qty: 1 Leva disinnesto frizione Call
Location: 70 Prev | Next Part: 100860 *Qty: 1 Snodo sferico $86.93
Location: 71 Prev | Next Part: 16043921 *Qty: 1 Bullone $0.90
Location: 72 Prev | Next Part: 16100821 *Qty: 1 Dado $3.46

* Quantity shown indicates the number of pieces used in the diagram.
