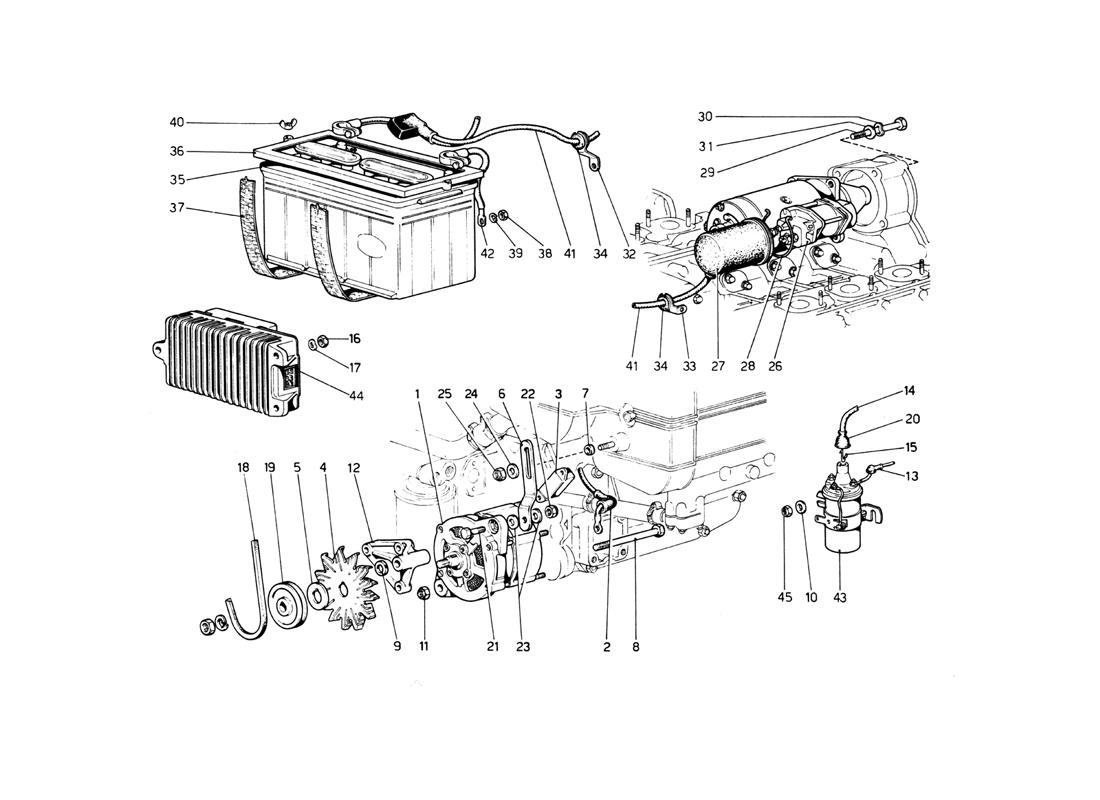

ALTERNATOR, STARTER AND BATTERY

Go to Split View

ALTERNATOR, STARTER AND BATTERY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 110073 *Qty: 1 Generatore Call
Location: 2 Prev | Next Part: 107003 *Qty: 1 Coprimorsetto $6.90
Location: 3 Prev | Next Part: 107396 *Qty: 1 Regolatore a transistor $92.13
Location: 4 Prev | Next Part: 110111 *Qty: 1 Ventola per generatore $8.13
Location: 5 Prev | Next Part: 106543 *Qty: 1 Rondella di spallamento $1.66
Location: 6 Prev | Next Part: 106760 *Qty: 1 Staffa di regolazione $22.64
Location: 7 Prev | Next Part: 106759 *Qty: 1 Distanziale $32.36
Location: 8 Prev | Next Part: 15541821 *Qty: 1 Bullone $3.17
Location: 9 Prev | Next Part: 106426 *Qty: 1 Rondella $3.04
Location: 10 Prev | Next Part: 12646701 *Qty: 2 Rondella Superseded
Location: 11 Prev | Next Part: 16105011 *Qty: 1 Dado autobloccante Superseded
Location: 12 Prev | Next Part: 106762 *Qty: 1 Supporto inferiore $228.67
Location: 13 Prev | Next Part: 100285 *Qty: 3 Cappuccio per cavi bassa tensione Superseded
Location: 14 Prev | Next Part: 110908 *Qty: 1 Cavo collegamento bobina distributore $22.64
Location: 15 Prev | Next Part: - *Qty: 1 Spillo per terminale Call
Location: 16 Prev | Next Part: 15896211 *Qty: 3 Dado Superseded
Location: 17 Prev | Next Part: 12601271 *Qty: 3 Rondella Superseded
Location: 18 Prev | Next Part: 102918 *Qty: 1 Cinghia comando generatore $42.52
Location: 19 Prev | Next Part: 106758 *Qty: 1 Puleggia comando generatore $152.81
Location: 20 Prev | Next Part: 103006 *Qty: 1 Cappuccio di protezione Superseded
Location: 20 Prev | Next Part: 12056286 *Qty: 1 Cappuccio di protezione
In alternativa con n. 103006
Superseded
Location: 21 Prev | Next Part: 15970921 *Qty: 1 Bullone $0.90
Location: 22 Prev | Next Part: 12575611 *Qty: 1 Dado Superseded
Location: 23 Prev | Next Part: 12646801 *Qty: 2 Rondella $1.65
Location: 24 Prev | Next Part: 12646801 *Qty: 1 Rondella $1.65
Location: 25 Prev | Next Part: 12575611 *Qty: 1 Dado Superseded
Location: 26 Prev | Next Part: 102914 *Qty: 1 Motorino avviamento Superseded
Location: 27 Prev | Next Part: 106287 *Qty: 1 Cappuccio di protezione Call
Location: 28 Prev | Next Part: 106288 *Qty: 1 Anello di fermo $7.47
Location: 29 Prev | Next Part: 104189 *Qty: 3 Bullone $10.71
Location: 30 Prev | Next Part: 11198071 *Qty: 3 Rondella Superseded
Location: 31 Prev | Next Part: 10519621 *Qty: 1 Rondella $0.90
Location: 32 Prev | Next Part: 105902 *Qty: 1 Staffa sostegno cavo sul carter $15.85
Location: 33 Prev | Next Part: 100289 *Qty: 2 Staffa sostegno cavo sul basamento $18.79
Location: 34 Prev | Next Part: 100286 *Qty: 3 Passafilo Superseded
Location: 35 Prev | Next Part: 105686 *Qty: 1 Batteria Call
Location: 36 Prev | Next Part: 105692 *Qty: 1 Telaietto di fermo batteria Call
Location: 37 Prev | Next Part: 105694 *Qty: 2 Nastro di sollevamento batteria Call
Location: 38 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 39 Prev | Next Part: 10516670 *Qty: 1 Rondella $0.90
Location: 40 Prev | Next Part: 10101140 *Qty: 2 Dado a galletto Call
Location: 41 Prev | Next Part: 105816 *Qty: 1 Cavi collegamento batteria Call
Location: 42 Prev | Next Part: 107329 *Qty: 1 Cavo massa batteria Superseded
Location: 43 Prev | Next Part: 105452 *Qty: 1 Bobina d''accensione Call
Location: 44 Prev | Next Part: 105453 *Qty: 1 Centralina di accensione elettrohica Call
Location: 45 Prev | Next Part: 16104111 *Qty: 2 Dado Superseded

* Quantity shown indicates the number of pieces used in the diagram.
