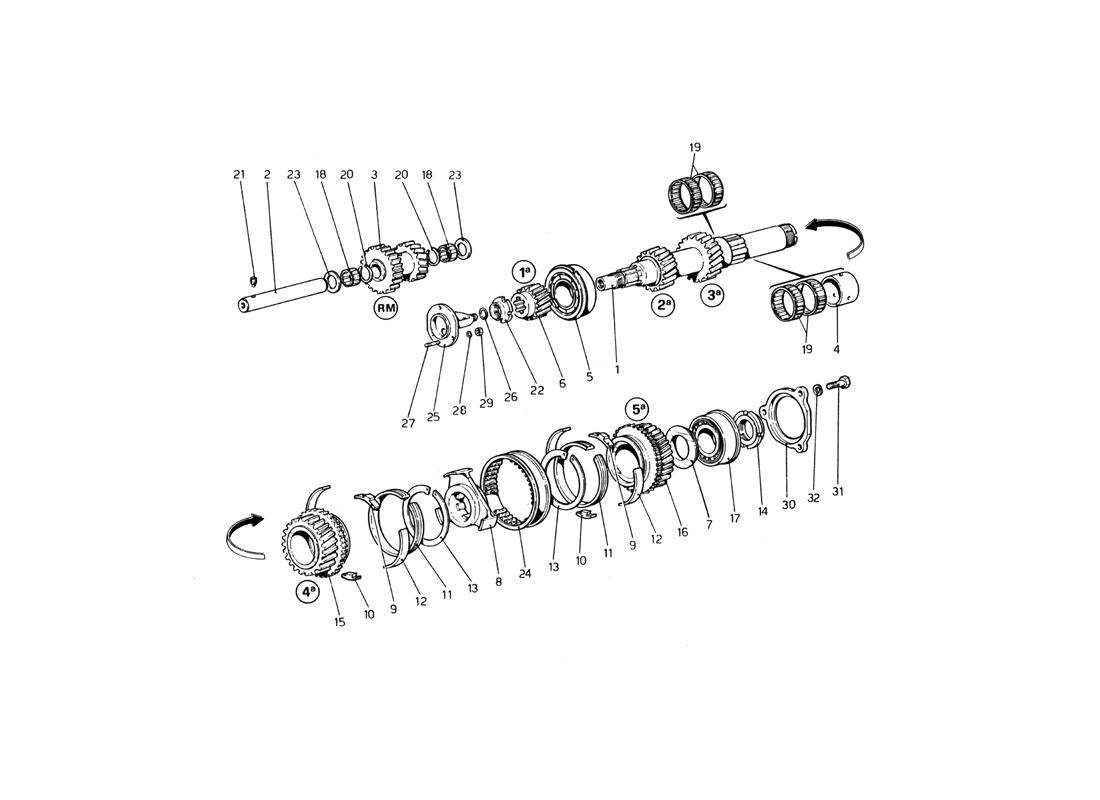

MAIN SHAFT GEARS (UP TO CAR NO. 17535)

Go to Split View

MAIN SHAFT GEARS (UP TO CAR NO. 17535)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 105397 *Qty: 1 Albero primario cambio $2,151.43
Location: 2 Prev | Next Part: 102967 *Qty: 1 Perno per ingranaggio folle - retromarcia Call
Location: 3 Prev | Next Part: 106406 *Qty: 1 Ingranaggio folle retromarcia Call
Location: 4 Prev | Next Part: 102975 *Qty: 1 Pista a rullini ingranaggio 5? velocita Call
Location: 5 Prev | Next Part: 103030 *Qty: 1 Cuscinetto anteriore $273.23
Location: 6 Prev | Next Part: 105404 *Qty: 1 Ingranaggio 1? velocita Call
Location: 7 Prev | Next Part: 102985 *Qty: 1 Distanziale $118.83
Location: 8 Prev | Next Part: 102988 *Qty: 1 Nucleo di guida 4? e 5? velocity $621.03
Location: 9 Prev | Next Part: 100718 *Qty: 2 Tassello per 4? e 5? velocita $184.21
Location: 10 Prev | Next Part: 100719 *Qty: 2 Settore arresto tassello Call
Location: 11 Prev | Next Part: 100720 *Qty: 2 Anello sincronizzatore $300.25
Location: 12 Prev | Next Part: 100721 *Qty: 4 Anello di arresto Call
Location: 13 Prev | Next Part: 100722 *Qty: 2 Anello di fermo $163.19
Location: 14 Prev | Next Part: 100729 *Qty: 1 Ghiera autobloccante Superseded
Location: 15 Prev | Next Part: 105410 *Qty: 1 Ingranaggio 4? velocita $733.09
Location: 16 Prev | Next Part: 106411 *Qty: 1 Ingranaggio 5? velocita $851.25
Location: 17 Prev | Next Part: 103042 *Qty: 1 Cuscinetto posteriore $242.28
Location: 18 Prev | Next Part: 101606 *Qty: 2 Gabbia a rullini per ingranaggio folle R.M. $5.45
Location: 19 Prev | Next Part: 103032 *Qty: 4 Gabbia a rullini per 4? e 5? velocita $51.06
Location: 20 Prev | Next Part: 102681 *Qty: 2 Anello di arresto Call
Location: 21 Prev | Next Part: 103035 *Qty: 1 Grano fissaggio perno per ingranaggio folle R.M. $0.93
Location: 22 Prev | Next Part: 103073 *Qty: 1 Ghiera $36.68
Location: 23 Prev | Next Part: 100703 *Qty: 2 Distanziale $28.44
Location: 24 Prev | Next Part: 104972 *Qty: 1 Manicotto di comando per 4? e 5? vel $561.44
Location: 26 Prev | Next Part: 100317 *Qty: 1 Anello di tcnuta $1.46
Location: 26 Prev | Next Part: 102702 *Qty: 1 Vaschetta superiore recupero olio Call
Location: 27 Prev | Next Part: 11500021 *Qty: 3 Prigioniero sul coperchio anteriore Superseded
Location: 28 Prev | Next Part: 12601271 *Qty: 3 Rondella Superseded
Location: 29 Prev | Next Part: 15896211 *Qty: 3 Dado Superseded
Location: 30 Prev | Next Part: 103072 *Qty: 1 Coperchio ritegno cuscinetto Call
Location: 31 Prev | Next Part: 15970721 *Qty: 3 Vite $0.90
Location: 32 Prev | Next Part: 10616870 *Qty: 3 Rondella Call

* Quantity shown indicates the number of pieces used in the diagram.
