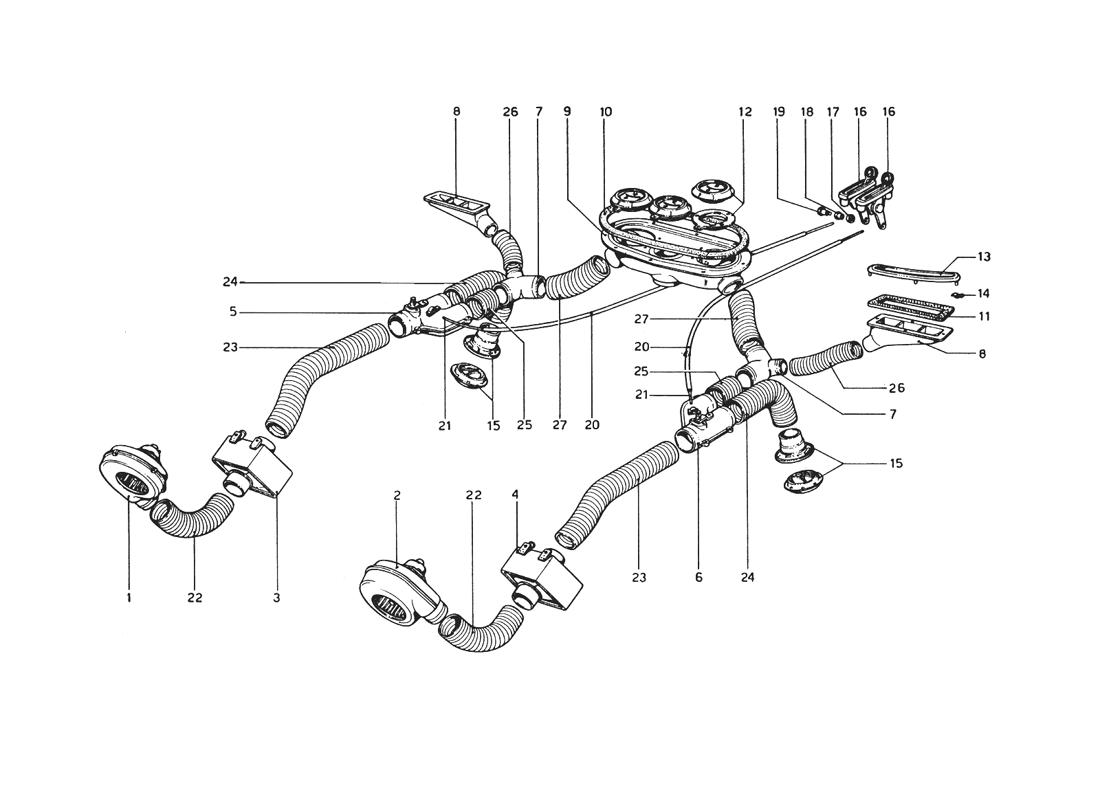

HEATING SYSTEM

Go to Split View

HEATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 200944 *Qty: 1 Elettroventilatore Dx $726.00
Location: 2 Prev | Next Part: 200945 *Qty: 1 Elettroventilatore Sx $795.15
Location: 3 Prev | Next Part: 201670 *Qty: 1 Riscaldatore Dx Call
Location: 4 Prev | Next Part: 500212 *Qty: 1 Riscaldatore Sx Call
Location: 5 Prev | Next Part: 500217 *Qty: 1 Deviatore Dx Call
Location: 6 Prev | Next Part: 500218 *Qty: 1 Deviatore Sx Call
Location: 7 Prev | Next Part: 500220 *Qty: 2 Raccordo Call
Location: 8 Prev | Next Part: 500229 *Qty: 2 Bocchetta uscita aria laterale Call
Location: 9 Prev | Next Part: 500228 *Qty: 1 Distributore aria Call
Location: 10 Prev | Next Part: 500915 *Qty: 1 Guarnizione Call
Location: 11 Prev | Next Part: 500916 *Qty: 2 Quarnizione Call
Location: 12 Prev | Next Part: 500710 *Qty: 3 Diffusore Call
Location: 13 Prev | Next Part: 500301 *Qty: 2 Diffusore laterale Call
Location: 14 Prev | Next Part: 200432 *Qty: 8 Molletta Call
Location: 15 Prev | Next Part: 500711 *Qty: 2 Diffusore inferiore Call
Location: 16 Prev | Next Part: 601274 *Qty: 2 Levetta comando defroster Call
Location: 17 Prev | Next Part: 10794011 *Qty: 2 Dado $0.90
Location: 18 Prev | Next Part: 200469 *Qty: 2 Boccota Call
Location: 19 Prev | Next Part: 200916 *Qty: 2 Vite Call
Location: 20 Prev | Next Part: 501009 *Qty: 2 Guaina per cavo Call
Location: 21 Prev | Next Part: 601011 *Qty: 2 Cavo comando defroster Call
Location: 22 Prev | Next Part: 500192 *Qty: 2 Tubo Superseded
Location: 23 Prev | Next Part: 600196 *Qty: 2 Tubo Call
Location: 24 Prev | Next Part: 600194 *Qty: 2 Tubo Call
Location: 25 Prev | Next Part: 600219 *Qty: 2 Tubo Call
Location: 26 Prev | Next Part: 500191 *Qty: 2 Tubo Call
Location: 27 Prev | Next Part: 500192 *Qty: 2 Tubo Superseded

* Quantity shown indicates the number of pieces used in the diagram.
