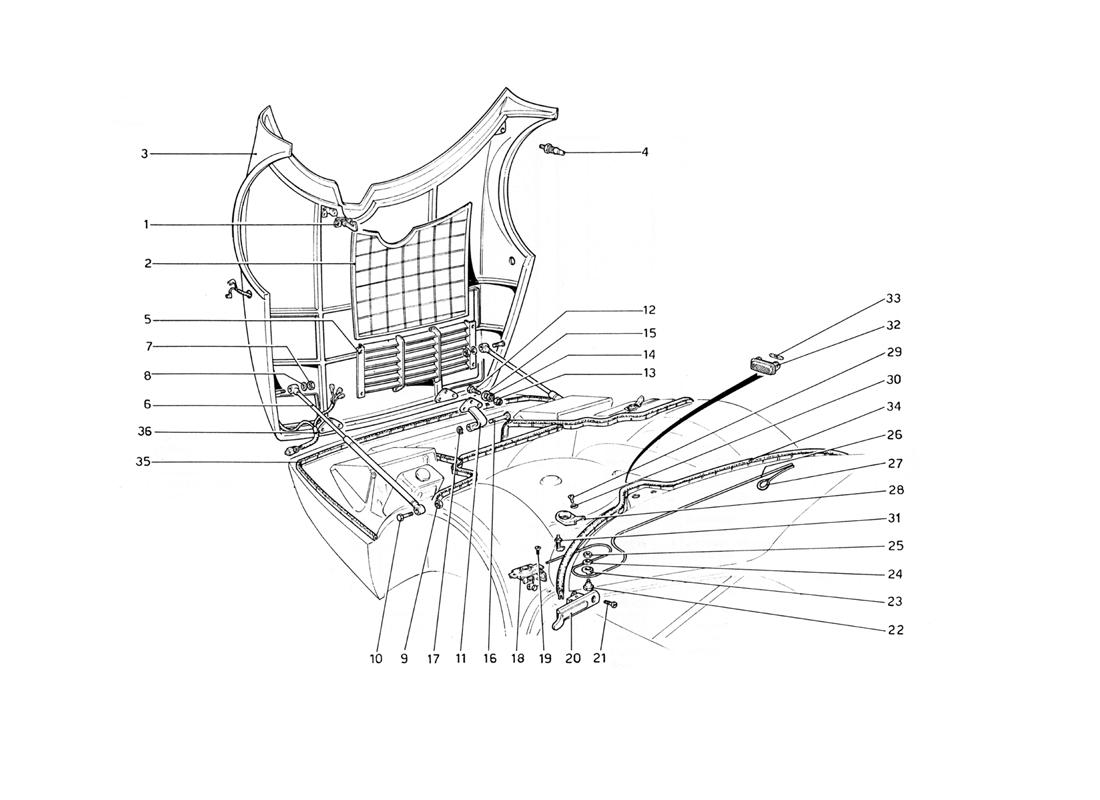

FRONT COMPARTMENT LID

Go to Split View

FRONT COMPARTMENT LID

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 501443 *Qty: 1 Cofano ant.completo di cerniera Call
Location: - Prev | Next Part: 501652 *Qty: 1 Cofano ant.completo di cerniere Call
Location: 1 Prev | Next Part: 500975 *Qty: 1 Gancio di sicurezza Call
Location: 2 Prev | Next Part: 502008 *Qty: 1 Tappeto cofano Call
Location: 2 Prev | Next Part: 502012 *Qty: 1 Tappeto cofano Call
Location: 3 Prev | Next Part: 500122 *Qty: 1 Cofano anteriore Call
Location: 3 Prev | Next Part: 501650 *Qty: 1 Cofano anteriore Call
Location: 4 Prev | Next Part: 500357 *Qty: 2 Perno per serratura Call
Location: 5 Prev | Next Part: 500062 *Qty: 1 Griglia cofano anteriore Call
Location: 6 Prev | Next Part: 500146 *Qty: 2 Ammortizzatore Call
Location: 7 Prev | Next Part: 16104111 *Qty: 2 Dado Superseded
Location: 8 Prev | Next Part: 201491 *Qty: 2 Rondella Call
Location: 9 Prev | Next Part: 1257422 *Qty: 2 Dado Call
Location: 10 Prev | Next Part: 10903026 *Qty: 2 Vite Call
Location: 11 Prev | Next Part: 500282 *Qty: 2 Cerniera Call
Location: 12 Prev | Next Part: 16043211 *Qty: 6 Vite $0.90
Location: 13 Prev | Next Part: 16100811 *Qty: 6 Dado Superseded
Location: 14 Prev | Next Part: 10516670 *Qty: 6 Rondella spaccata $0.90
Location: 15 Prev | Next Part: 10519621 *Qty: 6 Rondella tranciata $0.90
Location: 16 Prev | Next Part: 500977 *Qty: 2 Perno Call
Location: 17 Prev | Next Part: 11065675 *Qty: 2 Seeger Superseded
Location: 18 Prev | Next Part: 501125 *Qty: 2 Serratura cofano anteriore Call
Location: 19 Prev | Next Part: 1201482 *Qty: 4 Vite Call
Location: 20 Prev | Next Part: 500365 *Qty: 1 Maniglia apertura cofano Call
Location: 21 Prev | Next Part: 13274006 *Qty: 2 Vite Call
Location: 22 Prev | Next Part: 500935 *Qty: 1 Perno Call
Location: 23 Prev | Next Part: 500934 *Qty: 1 Boccola Call
Location: 24 Prev | Next Part: 11196270 *Qty: 1 Rondella Call
Location: 25 Prev | Next Part: 10794011 *Qty: 1 Dado $0.90
Location: 26 Prev | Next Part: 500368 *Qty: 1 Cavo Call
Location: 27 Prev | Next Part: 500369 *Qty: 2 Cavo emergenza Call
Location: 28 Prev | Next Part: 500974 *Qty: 1 Staffa per gancio di sicurezza Call
Location: 29 Prev | Next Part: 10979411 *Qty: 2 Vite Superseded
Location: 30 Prev | Next Part: 10615470 *Qty: 2 Rondella Call
Location: 31 Prev | Next Part: 200697 *Qty: 1 Pulsante plafoniera Call
Location: 32 Prev | Next Part: 201443 *Qty: 1 Plafoniera Call
Location: 33 Prev | Next Part: 501002 *Qty: 2 Lampada Call
Location: 34 Prev | Next Part: 500445 *Qty: 1 Guarnizione Call
Location: 35 Prev | Next Part: 501561 *Qty: 1 Guarnizione Call
Location: 36 Prev | Next Part: 501794 *Qty: 1 Cavo collegamento luci ant. Dx
Vale per GD - D
Call
Location: 36 Prev | Next Part: 501450 *Qty: 1 Cavo collegamento luci ant. Dx Call
Location: 36 Prev | Next Part: 501451 *Qty: 1 Cavo collegamento luci ant. Sx
Non vale per GD - D
Call
Location: 36 Prev | Next Part: 501795 *Qty: 1 Cavo collegamento luci ant. Sx
Vale per GD - D
Call

* Quantity shown indicates the number of pieces used in the diagram.
