TIMING SYSTEM - TAPPETS AND SHAFTS

Go to Split View

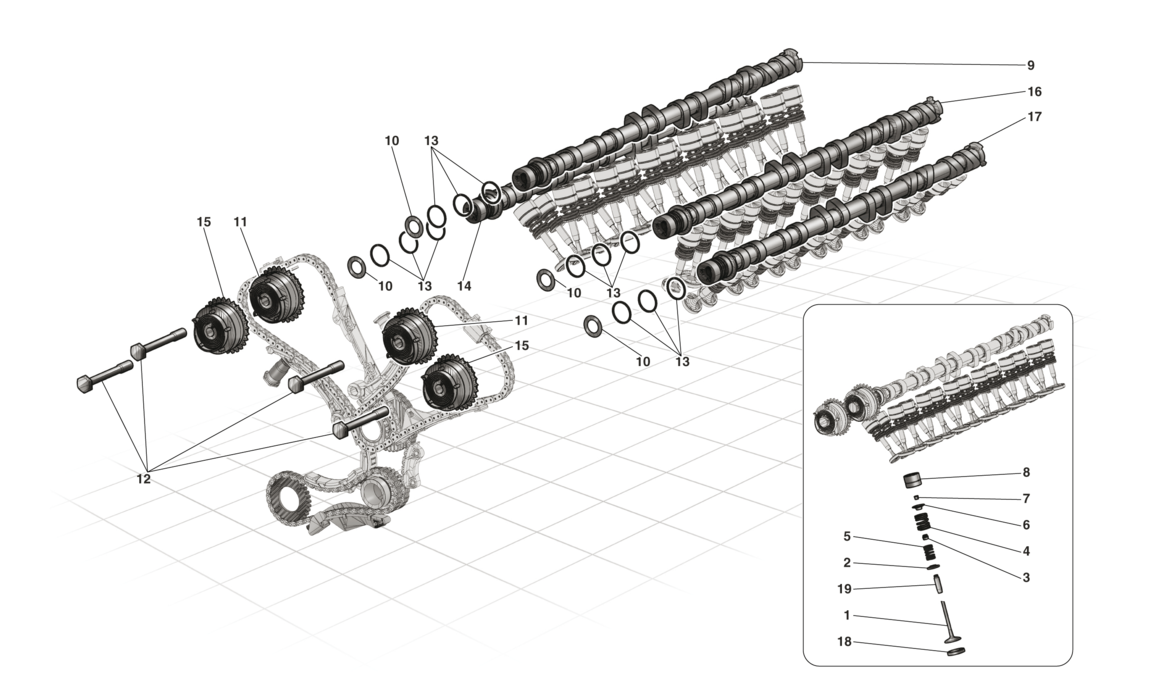

TIMING SYSTEM - TAPPETS AND SHAFTS

Location Part # Quantity* Description Price Add To Cart
1 198581 24 INTAKE VALVE $16.02
1 198582 24 EXHAUST VALVE $38.41
2 247484 24 LOWER VALVE SPRING CAP, INTAKE SIDE $5.99
2 242574 24 LOWER VALVE SPRING CAP, EXHAUST SIDE $11.00
3 221473 48 OIL SEAL $1.75
4 238640 48 EXTERNAL VALVE RETURN SPRING $12.50
5 238641 48 INTERNAL VALVE RETURN SPRING $8.91
6 237390 48 UPPER VALVE SPRING CAP $9.85
7 179763 96 VALVE SPRING HALF-CONE Unavailable
8 255431 48 HYDRAULIC TAPPET $47.95
9 286638 1 RH INTAKE CAMSHAFT $882.83
10 240559 4 DIAMOND COATED WASHER $11.27
11 241906 4 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $494.75
12 254892 4 VARIABLE TIMING ADJUSTER SCREW $16.54
13 197975 12 SEAL RING $8.99
14 286639 1 RH EXHAUST CAMSHAFT $882.83
15 248020 2 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $496.88
16 286640 1 LH INTAKE CAMSHAFT $882.83
17 286641 1 LH EXHAUST CAMSHAFT $882.83
18 6222847 24 INTAKE VALVE SEAT $9.38
18 6222848 24 EXHAUST VALVE SEAT $10.07
19 6213498 48 VALVE GUIDE Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
