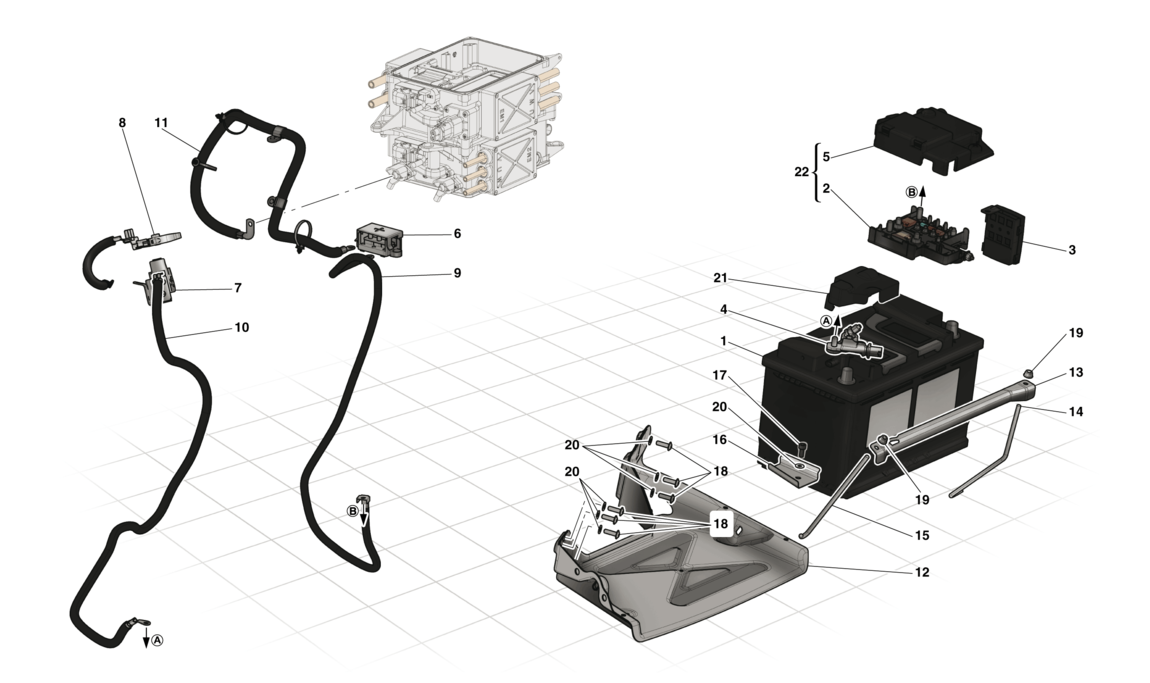

STARTER BATTERY

Go to Split View

STARTER BATTERY

Location Part # Quantity* Description Price Add To Cart
1 283032 1 12V BATTERY Unavailable
2 292621 1 BATTERY ECU -After depletion, order compl. 292456 ref. 22- -Applicable until depletion- Unavailable
3 302147 1 CFO ECU $120.46
4 274661 1 BATTERY SENSOR Unavailable
5 251161 1 COVER -After depletion, order compl. 292456 ref. 22- -Applicable until depletion- $125.11
6 170114 1 TERMINAL BLOCK $52.78
7 302277 1 COMPL. REMOTE NEGATIVE POLE $101.13
8 301416 1 BATTERY MASTER SWITCH AND GROUND CABLE ASSEMBLY Unavailable
9 299891 1 BATTERY CABLE $176.29
10 292784 1 GROUND CABLES FROM SENSOR TO FALSE POLE $140.11
11 299892 1 CABLE FROM INVERTER TO BATTERY Unavailable
12 85597700 1 BATTERY CARRIER TRAY $5,036.65
13 85598000 1 UPPER BATTERY RETAINER BRACKET $40.82
14 85597900 1 REAR BATTERY FASTENER TIE-ROD $200.36
15 85597800 1 FRONT BATTERY FASTENER TIE-ROD $32.40
16 85598100 1 LOWER BATTERY RETAINER BRACKET -No longer supplied- -Replaced by 86204900- Unavailable
16 86204900 1 LOWER BATTERY RETAINER BRACKET $1,319.48
17 14305725 1 SCREW -No longer supplied- -Replaced by 14305224- Unavailable
17 14305224 1 SCREW Unavailable
18 85629300 6 SCREW -M6 X 20- Unavailable
19 14058419 2 NUT $1.02
20 13550224 7 WASHER $1.56
21 307021 1 BATTERY SENSOR PROTECTION $33.19
22 292456 1 COMPL. BATTERY ECU $180.79

* Quantity shown indicates the number of pieces used in the diagram.
