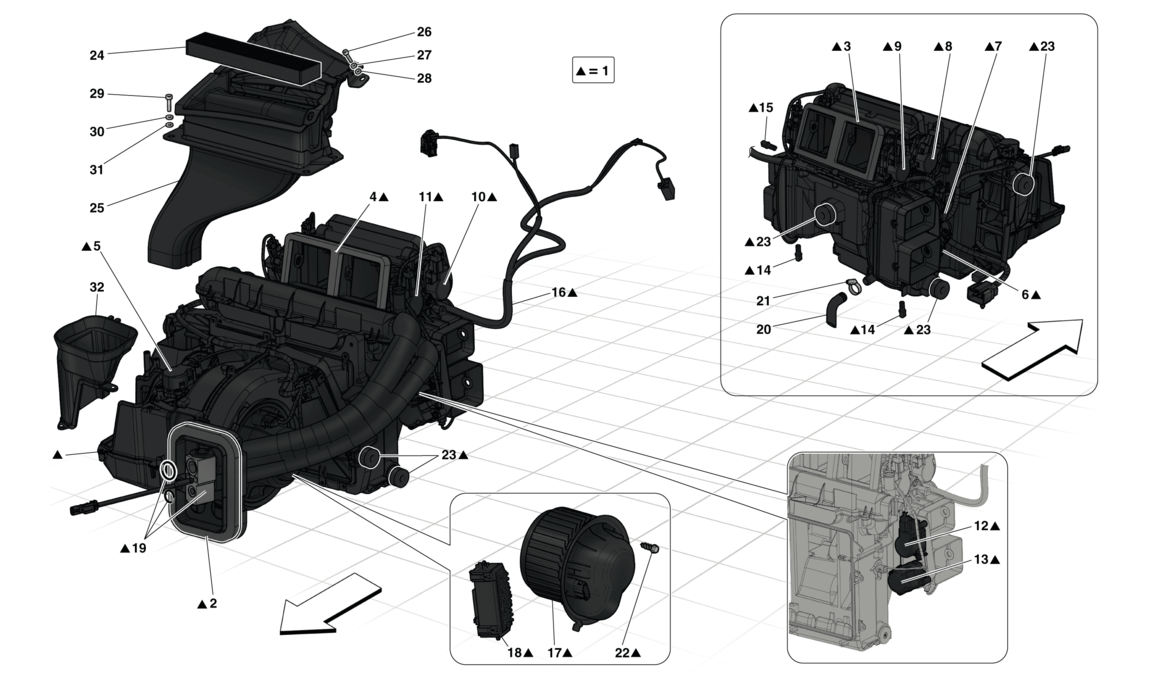

EVAPORATOR UNIT

Go to Split View

EVAPORATOR UNIT

Location Part # Quantity* Description Price Add To Cart
1 300920 1 HVAC UNIT, MAIN MODULE $7,892.78
2 86057000 1 FIREWALL FLANGE GASKET $78.44
3 82046600 1 DEFROSTER DUCT FILLER FOAM $187.98
4 82046800 1 FRONT FILLER FOAM $210.98
5 264869 1 LIN BUS RECIRCULATION ACTUATOR $199.43
6 264870 1 LIN BUS RH FOOTWELL ACTUATOR Unavailable
7 264871 1 LIN BUS RH LATERAL ACTUATOR Unavailable
8 264872 1 LIN BUS RH DEFROSTER ACTUATOR Unavailable
9 264873 1 LIN BUS RH FAN ACTUATOR Unavailable
10 264874 1 LIN BUS LH FAN ACTUATOR Unavailable
11 264875 1 LIN BUS LH DEFROSTER ACTUATOR Unavailable
12 264876 1 LIN BUS LH LATERAL ACTUATOR Unavailable
13 264877 1 LIN BUS LH FOOTWELL ACTUATOR Unavailable
14 68390100 2 AIR SENSOR $14.43
15 83749200 1 EVAPORATOR SENSOR $215.77
16 86057100 1 AC WIRING HARNESS $2,145.28
17 264880 1 FAN $864.13
18 264881 1 SPEED REGULATOR $438.11
19 86652000 1 TXV SERVICE KIT $587.18
20 293254 1 HVAC CONDENSATION DRAIN HOSE CONNECTOR $51.87
21 296778 1 COLLAR $8.81
22 68391900 0 SCREW $3.71
23 68389800 5 RUBBER PAD $7.51
24 82295100 1 ANTI-POLLEN FILTER $62.89
25 85800600 1 COMPLETE INLET ASSEMBLY $4,195.56
26 14304624 2 SCREW Unavailable
27 12620374 2 WASHER $0.90
28 12638101 2 WASHER Superseded
29 14304321 4 SCREW $0.90
30 12620374 4 WASHER $0.90
31 12638101 4 WASHER Superseded
32 302068 1 DYNAMIC INTAKE, LOWER PART $402.67

* Quantity shown indicates the number of pieces used in the diagram.
