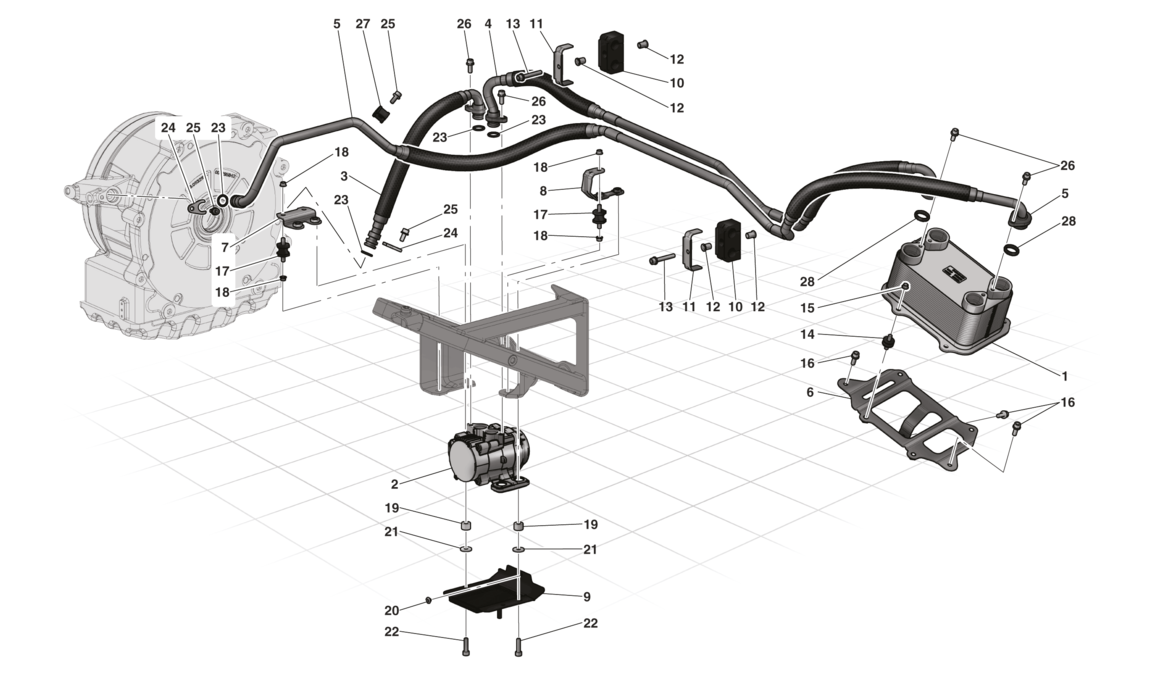

ELECTRIC MOTOR COOLING

Go to Split View

ELECTRIC MOTOR COOLING

Location Part # Quantity* Description Price Add To Cart
1 286140 1 OIL-WATER HEAT EXCHANGER $1,113.03
2 283006 1 OIL PUMP $2,460.77
3 299894 1 OIL PICKUP PIPE FROM ME1 TO PUMP $596.09
4 299896 1 OIL DELIVERY PIPE FROM PUMP TO HEAT EXCHANGER $1,040.78
5 304337 1 OIL RETURN PIPE FROM HEAT EXCHANGER TO ME1 $1,038.81
6 299749 1 BRACKET -No longer supplied- -Replaced by 307940- Unavailable
6 307940 1 BRACKET $74.87
7 299463 1 REAR ME1 OIL PUMP BRACKET $38.87
8 301751 1 FRONT ME1 OIL PUMP BRACKET $45.39
9 299623 1 ME1 PUMP OIL COLLECTOR RESERVOIR $155.58
10 243396 2 FRONT RUBBER PILLORY BLOCK $25.19
11 243398 2 PLATE $13.70
12 243399 4 BUSHING Unavailable
13 231623 2 SCREW -M6 X 40- Unavailable
14 225408 4 CYLINDRICAL BUSHING $8.06
15 132877 4 NUT Superseded
16 231617 3 SCREW -M6 X 18- Unavailable
17 284347 3 POWER STEERING PUMP FASTENER BUSH $19.45
18 132877 6 NUT Superseded
19 299624 4 BUSHING $5.87
20 14622589 1 CAP -No longer supplied- -Replaced by 14622387- Unavailable
20 14622387 1 CAP $3.63
21 10523424 4 WASHER $0.90
22 14432224 4 SCREW Superseded
23 286421 4 GASKET $1.20
24 293386 2 FORK FOR ME1 COOLING PIPE $42.98
25 231616 3 SCREW -M6 X 14- Unavailable
26 248334 4 SCREW $0.90
27 10441490 1 BRACKET WITH SHEATH Unavailable
28 122791 2 GASKET $2.48

* Quantity shown indicates the number of pieces used in the diagram.
