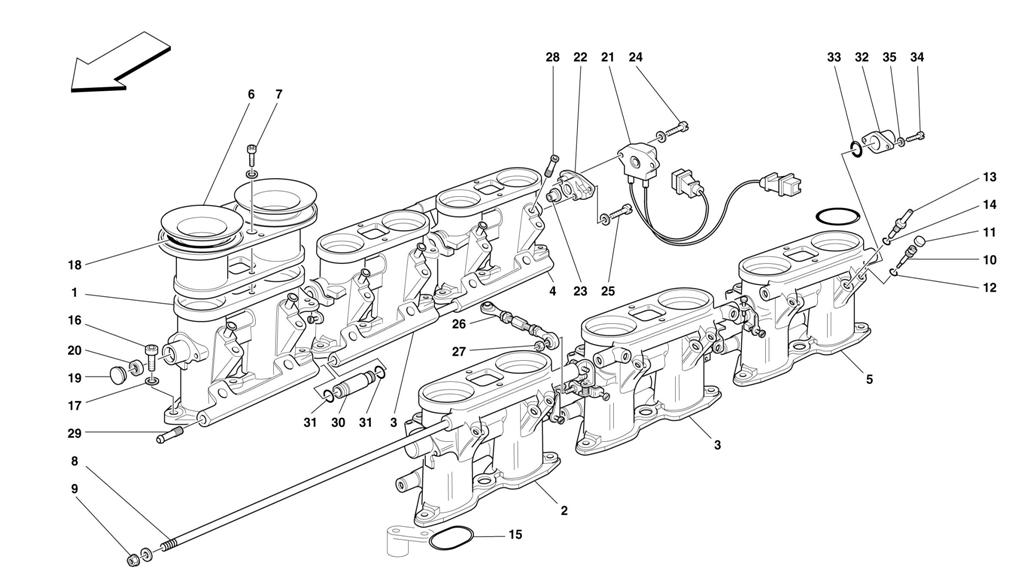

THROTTLE HOLDERS

Go to Split View

THROTTLE HOLDERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 160691 *Qty: 1 R.H. FRONT THROTTLE HOLDER Call
Location: 2 Prev | Next Part: 160690 *Qty: 1 L.H. FRONT THROTTLE HOLDER Call
Location: 3 Prev | Next Part: 160692 *Qty: 2 INTERMEDIATE THROTTLE HOLDER Call
Location: 4 Prev | Next Part: 160690 *Qty: 1 R.H. REAR THROTTLE HOLDER Call
Location: 5 Prev | Next Part: 160691 *Qty: 1 L.H. REAR THROTTLE HOLDER Call
Location: 6 Prev | Next Part: 162704 *Qty: 6 COMPLETE FLANGE $255.39
Location: 7 Prev | Next Part: 162742 *Qty: 12 SCREW $2.25
Location: 8 Prev | Next Part: 162719 *Qty: 2 THREADED TIE ROD $98.95
Location: 9 Prev | Next Part: 162720 *Qty: 4 NUT $0.95
Location: 10 Prev | Next Part: 162700 *Qty: 12 ADJUSTMENT SCREW $4.92
Location: 11 Prev | Next Part: 162701 *Qty: 12 PLUG $1.00
Location: 12 Prev | Next Part: 166485 *Qty: 12 OR-RING $0.90
Location: 13 Prev | Next Part: 162694 *Qty: 12 SYNCHRONIZER CONNECTION $10.55
Location: 14 Prev | Next Part: 168105 *Qty: 12 OR-RING $1.18
Location: 15 Prev | Next Part: 154140 *Qty: 12 OR-RING $5.41
Location: 16 Prev | Next Part: 14306424 *Qty: 18 SCREW $0.90
Location: 17 Prev | Next Part: 12601374 *Qty: 18 WASHER $0.90
Location: 18 Prev | Next Part: 149666 *Qty: 12 O.R. GASKET $3.67
Location: 19 Prev | Next Part: 162708 *Qty: 2 PLUG $86.19
Location: 20 Prev | Next Part: 162709 *Qty: 12 BEARING $27.40
Location: 21 Prev | Next Part: 167278 *Qty: 1 POTENTIOMETER $334.52
Location: 22 Prev | Next Part: 162721 *Qty: 1 FLANGE $197.92
Location: 23 Prev | Next Part: 162725 *Qty: 1 BUSHING $63.99
Location: 24 Prev | Next Part: 162722 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 162723 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 162716 *Qty: 2 THREADED TIE ROD $670.39
Location: 27 Prev | Next Part: 162731 *Qty: 2 NUT $1.58
Location: 28 Prev | Next Part: 162741 *Qty: 12 PIPE CONNECTION $1.86
Location: 29 Prev | Next Part: 162707 *Qty: 4 CONNECTION $2.95
Location: 30 Prev | Next Part: 162718 *Qty: 4 SPECIAL CONNECTION $73.01
Location: 31 Prev | Next Part: 162717 *Qty: 8 OR-RING $1.93
Location: 32 Prev | Next Part: 168070 *Qty: 1 PROTECTION $77.12
Location: 33 Prev | Next Part: 142599 *Qty: 1 GASKET $1.39
Location: 34 Prev | Next Part: 14303024 *Qty: 2 SCREW $1.09
Location: 35 Prev | Next Part: 12604079 *Qty: 2 WASHER $1.83

* Quantity shown indicates the number of pieces used in the diagram.
