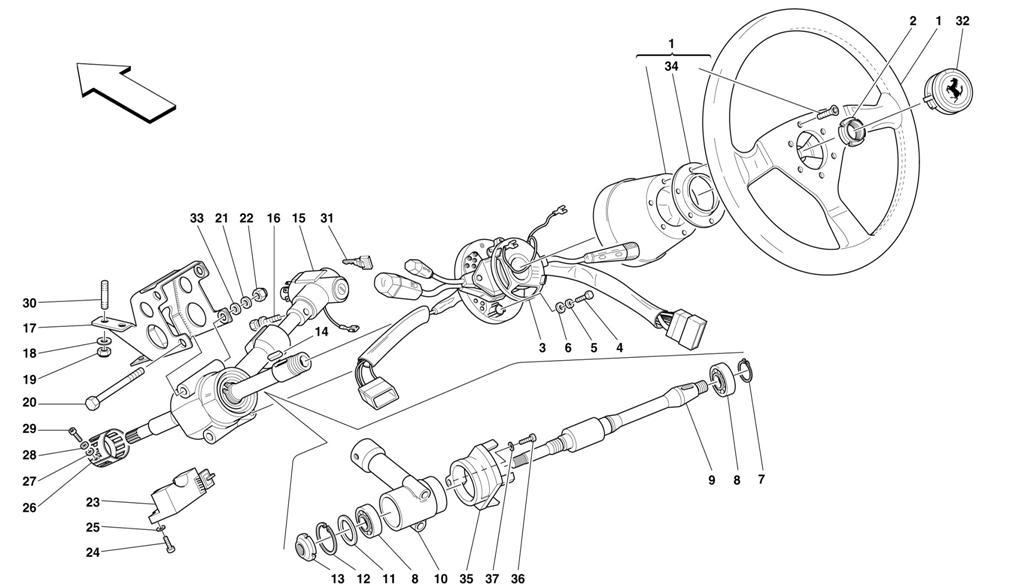

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155962 *Qty: 1 COMPLETE STEERING WHEEL Call
Location: 2 Prev | Next Part: 106610 *Qty: 1 RING NUT $99.77
Location: 3 Prev | Next Part: 162792 *Qty: 1 UNHOOK DEVIATION ASSEMBLY Call
Location: 4 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 5 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 6 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 11067376 *Qty: 1 SEEGER RING $2.28
Location: 8 Prev | Next Part: 101104 *Qty: 2 BEARING $17.76
Location: 9 Prev | Next Part: 161511 *Qty: 1 UPPER SHAFT FOR STEERING CONTROL $787.20
Location: 10 Prev | Next Part: 106611 *Qty: 1 SHAFT SUPPORT $1,021.92
Location: 11 Prev | Next Part: 107489 *Qty: 4 WASHER Th. mm. 0,3 -Possible mounting $13.91
Location: 11 Prev | Next Part: 107490 *Qty: 4 WASHER Th. mm. 0,2 -Possible mounting $13.91
Location: 12 Prev | Next Part: 11060576 *Qty: 1 SEEGER RING $1.94
Location: 13 Prev | Next Part: 106610 *Qty: 1 RING NUT $99.77
Location: 14 Prev | Next Part: 101106 *Qty: 1 KEY $0.90
Location: 15 Prev | Next Part: 168785 *Qty: 1 COMPLETE ANTI-THEFT DEVICE Call
Location: 16 Prev | Next Part: 168045 *Qty: 1 SCREW -Valid after stock exhaustion of 106615 $59.20
Location: 17 Prev | Next Part: 151096 *Qty: 1 COLUMN SUPPORT $359.77
Location: 18 Prev | Next Part: 12638524 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 133215 *Qty: 4 NUT $3.75
Location: 20 Prev | Next Part: 103576 *Qty: 2 SCREW $21.87
Location: 21 Prev | Next Part: 10519624 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 23 Prev | Next Part: 171835 *Qty: 1 STEERING SENSOR $115.30
Location: 23 Prev | Next Part: 150943 *Qty: 1 STEERING SENSOR -Not as spare part now -Replaced by 171835 Call
Location: 24 Prev | Next Part: 14303024 *Qty: 2 SCREW $1.13
Location: 25 Prev | Next Part: 12604079 *Qty: 2 WASHER $1.30
Location: 26 Prev | Next Part: 150945 *Qty: 1 TOOTHED WHEEL $139.67
Location: 27 Prev | Next Part: 14497701 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 12604079 *Qty: 1 WASHER $1.30
Location: 29 Prev | Next Part: 14303324 *Qty: 1 SCREW $0.90
Location: 30 Prev | Next Part: 13543224 *Qty: 1 STUD Call
Location: 31 Prev | Next Part: 168786 *Qty: 1 BLANK KEY Call
Location: 32 Prev | Next Part: 169881 *Qty: 1 ELECTRIC HORN PUSH BUTTON $70.49
Location: 33 Prev | Next Part: 10615674 *Qty: 2 WASHER Superseded
Location: 34 Prev | Next Part: 169883 *Qty: 1 PUSH OLDER RING $23.26
Location: 35 Prev | Next Part: 64638600 *Qty: 1 COLUMN COVER SLEEVE $316.05
Location: 36 Prev | Next Part: 14305224 *Qty: 1 SCREW $0.90
Location: 37 Prev | Next Part: 11181874 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
