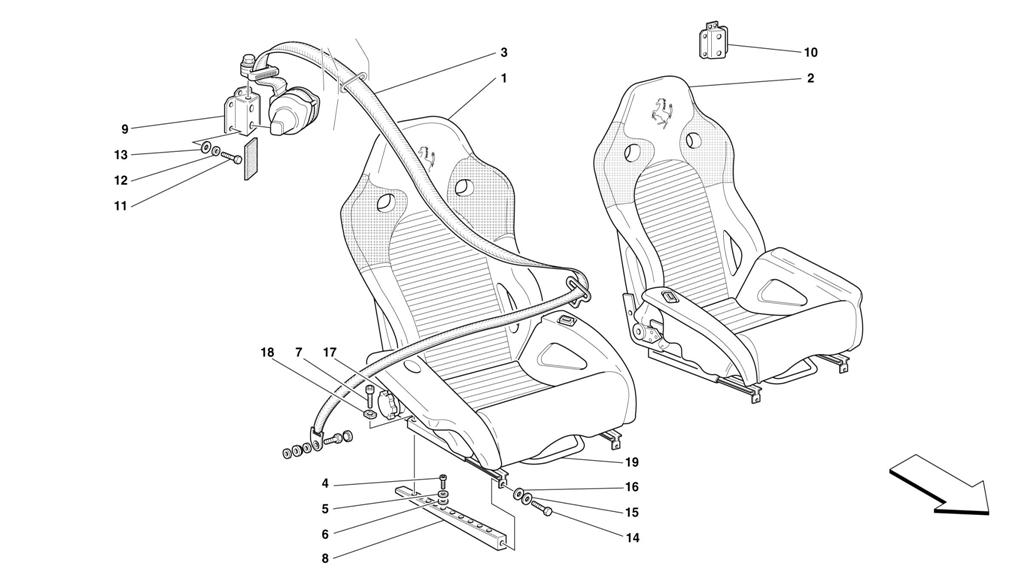

SEATS AND SAFETY BELTS -NOT FOR USA

Go to Split View

SEATS AND SAFETY BELTS -NOT FOR USA

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65096100 *Qty: 1 R.H. SEAT COMPLETE WITH GUIDES -Large Type -Black/Red cover Call
Location: 1 Prev | Next Part: 65096200 *Qty: 1 R.H. SEAT COMPLETE WITH GUIDES -Narrow Type -Black cover Call
Location: 1 Prev | Next Part: 65096300 *Qty: 1 R.H. SEAT COMPLETE WITH GUIDES -Narrow Type -Black/Red cover $18,365.28
Location: 1 Prev | Next Part: 63531500 *Qty: 1 R.H. SEAT COMPLETE WITH GUIDES -Not as spare part Call
Location: 1 Prev | Next Part: 65096000 *Qty: 1 R.H. SEAT COMPLETE WITH GUIDES -Large Type -Black cover Call
Location: 2 Prev | Next Part: 65096400 *Qty: 1 L.H. SEAT COMPLETE WITH GUIDES -Large Type -Black cover Call
Location: 2 Prev | Next Part: 65096500 *Qty: 1 L.H. SEAT COMPLETE WITH GUIDES -Large Type -Black/Red cover Call
Location: 2 Prev | Next Part: 65096600 *Qty: 1 L.H. SEAT COMPLETE WITH GUIDES -Narrow Type -Black cover Call
Location: 2 Prev | Next Part: 65096700 *Qty: 1 L.H. SEAT COMPLETE WITH GUIDES -Narrow Type -Black/Red cover $18,365.28
Location: 2 Prev | Next Part: 63531600 *Qty: 1 L.H. SEAT COMPLETE WITH GUIDES -Not as spare part Call
Location: 3 Prev | Next Part: 63531700 *Qty: 1 SAFETY BELTS ASSEMBLY - ALLIED SIGNAL type $467.47
Location: 3 Prev | Next Part: 65082900 *Qty: 1 SAFETY BELTS ASSEMBLY - TRW type $273.73
Location: 4 Prev | Next Part: 14306424 *Qty: 8 SCREW $0.90
Location: 5 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 7 Prev | Next Part: 13029024 *Qty: 4 SCREW $39.14
Location: 8 Prev | Next Part: 151329 *Qty: 4 SEAT GUIDE CONNECTION $650.25
Location: 9 Prev | Next Part: 63670400 *Qty: 1 R.H. ROLLING DEVICE FASTENING BRACKET $125.01
Location: 10 Prev | Next Part: 63670500 *Qty: 1 L.H. ROLLING DEVICE FASTENING BRACKET $126.29
Location: 11 Prev | Next Part: 16043434 *Qty: 12 SCREW $0.90
Location: 12 Prev | Next Part: 127496 *Qty: 12 WASHER $0.90
Location: 13 Prev | Next Part: 10519624 *Qty: 12 WASHER $0.90
Location: 14 Prev | Next Part: 14306326 *Qty: 4 SCREW $1.20
Location: 15 Prev | Next Part: 12034574 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 64601200 *Qty: 2 KNOB $433.45
Location: 18 Prev | Next Part: 63395300 *Qty: 4 ELASTIC PLATE Call
Location: 19 Prev | Next Part: 62532000 *Qty: 2 SLIDING CONTROL KNOB $76.48

* Quantity shown indicates the number of pieces used in the diagram.
