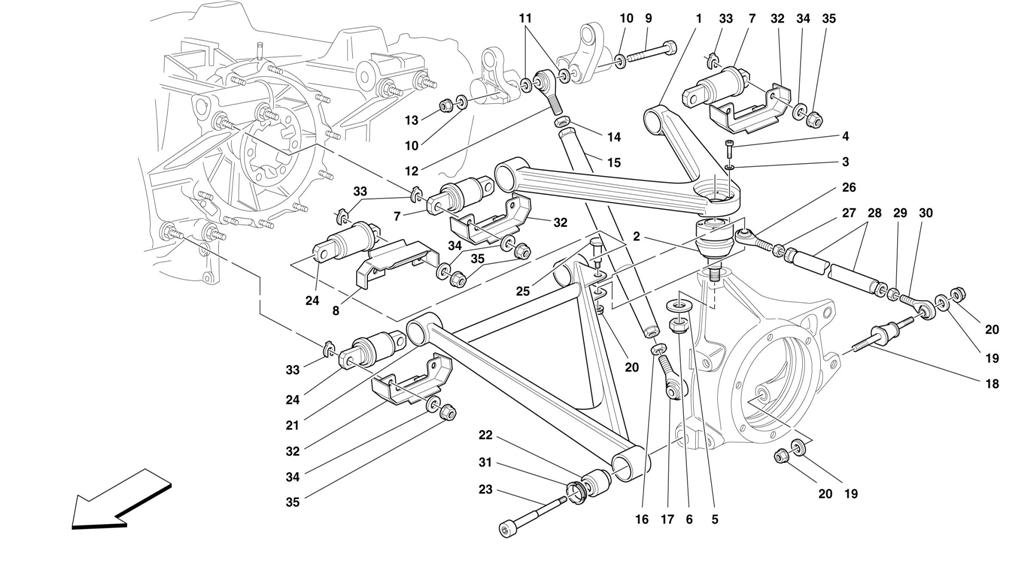

REAR SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 171105 *Qty: 1 R.H. REAR UPPER LEVER $4,196.06
Location: 1 Prev | Next Part: 161959 *Qty: 1 L.H. REAR UPPER LEVER $3,049.73
Location: 2 Prev | Next Part: 130202 *Qty: 2 BALL JOINT $751.63
Location: 3 Prev | Next Part: 10569279 *Qty: 8 WASHER $0.90
Location: 4 Prev | Next Part: 14305124 *Qty: 8 SCREW $0.90
Location: 5 Prev | Next Part: 150143 *Qty: 2 WASHER $25.59
Location: 6 Prev | Next Part: 12575915 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: 153746 *Qty: 4 BALL JOINT $504.20
Location: 8 Prev | Next Part: 166502 *Qty: 1 L.H. BALL JOINT PROTECTION $166.41
Location: 8 Prev | Next Part: 166504 *Qty: 1 R.H. BALL JOINT PROTECTION $116.16
Location: 9 Prev | Next Part: 150083 *Qty: 2 PIN $54.07
Location: 10 Prev | Next Part: 10732531 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 156260 *Qty: 4 WASHER -Th. mm. 0,2- $1.61
Location: 11 Prev | Next Part: 156261 *Qty: 4 WASHER -Th. mm. 0,3- -As an alternative $1.61
Location: 11 Prev | Next Part: 156262 *Qty: 4 WASHER -Th. mm. 0,5- -As an alternative $1.61
Location: 11 Prev | Next Part: 156263 *Qty: 4 WASHER -Th. mm. 0,6- -As an alternative $1.63
Location: 11 Prev | Next Part: 156264 *Qty: 4 WASHER -Th. mm. 0,7- -As an alternative $1.61
Location: 11 Prev | Next Part: 156265 *Qty: 4 WASHER -Th. mm. 0,8- -As an alternative Call
Location: 11 Prev | Next Part: 156266 *Qty: 4 WASHER -Th. mm. 1,0- -As an alternative $1.61
Location: 12 Prev | Next Part: 149125 *Qty: 2 BALL JOINT $606.06
Location: 13 Prev | Next Part: 132876 *Qty: 2 NUT $51.12
Location: 14 Prev | Next Part: 10717477 *Qty: 2 NUT $2.08
Location: 15 Prev | Next Part: 165660 *Qty: 2 REAR SHOCK ABSORBER CONTROL ROD $1,528.11
Location: 16 Prev | Next Part: 149124 *Qty: 2 NUT $5.51
Location: 17 Prev | Next Part: 149126 *Qty: 2 BALL JOINT $606.06
Location: 18 Prev | Next Part: 161958 *Qty: 2 PIN $185.67
Location: 19 Prev | Next Part: 10730721 *Qty: 2 WASHER -Not as spare part $0.90
Location: 19 Prev | Next Part: 101016 *Qty: 6 WASHER $21.60
Location: 20 Prev | Next Part: 132876 *Qty: 6 NUT $51.12
Location: 20 Prev | Next Part: 12575725 *Qty: 6 NUT -As an alternative- Call
Location: 21 Prev | Next Part: 161962 *Qty: 2 REAR LOWER LEVER Call
Location: 22 Prev | Next Part: 163918 *Qty: 2 BALL JOINT $124.91
Location: 23 Prev | Next Part: 150141 *Qty: 2 PIN $243.38
Location: 24 Prev | Next Part: 163703 *Qty: 4 BALL JOINT $1,096.77
Location: 25 Prev | Next Part: 150151 *Qty: 2 PIN $123.75
Location: 26 Prev | Next Part: 160470 *Qty: 2 BALL JOINT $1,045.41
Location: 27 Prev | Next Part: 10717477 *Qty: 2 NUT $2.08
Location: 28 Prev | Next Part: 149182 *Qty: 2 SPRAG $500.74
Location: 29 Prev | Next Part: 149124 *Qty: 2 L.H. THREADED NUT $5.51
Location: 30 Prev | Next Part: 160471 *Qty: 2 BALL JOINT $1,045.41
Location: 31 Prev | Next Part: 150150 *Qty: 2 RING NUT $189.33
Location: 32 Prev | Next Part: 166500 *Qty: 6 PROTECTION $119.60
Location: 33 Prev | Next Part: 150144 *Qty: 8 WASHER -Thickness mm. 1,0- $4.29
Location: 33 Prev | Next Part: 150145 *Qty: 8 WASHER -Thickness mm. 1,5- $4.68
Location: 33 Prev | Next Part: 150146 *Qty: 8 WASHER -Thickness mm. 2,0- $5.08
Location: 34 Prev | Next Part: 102901 *Qty: 16 WASHER $0.90
Location: 35 Prev | Next Part: 133216 *Qty: 16 NUT $5.11

* Quantity shown indicates the number of pieces used in the diagram.
