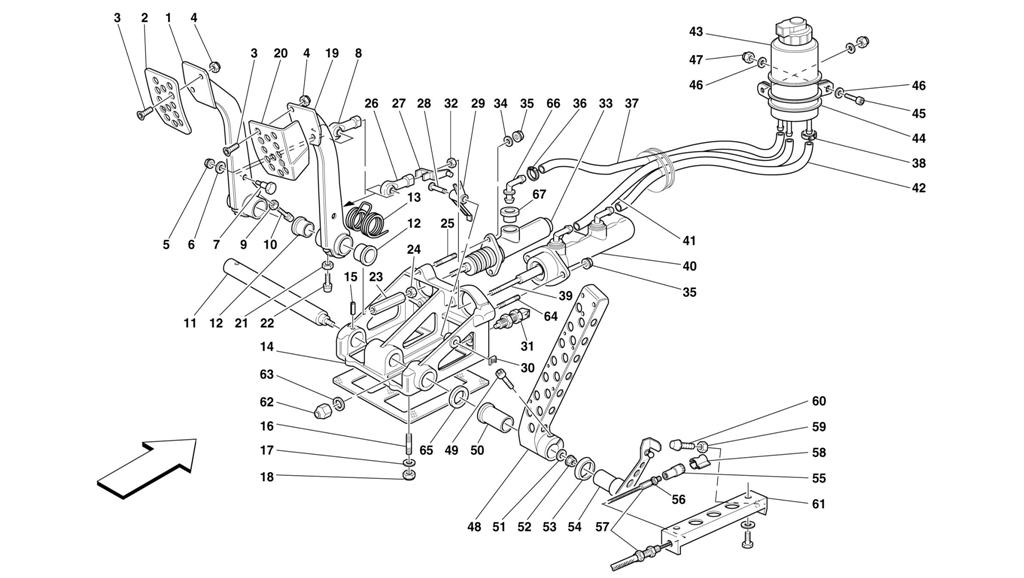

PEDAL ASSY

Go to Split View

PEDAL ASSY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 163236 *Qty: 1 CLUTCH PEDAL $490.88
Location: 2 Prev | Next Part: 152847 *Qty: 1 CLUTCH PEDAL DRILLED PLATE $83.91
Location: 3 Prev | Next Part: 14441434 *Qty: 4 SCREW $2.64
Location: 4 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 5 Prev | Next Part: 133215 *Qty: 2 NUT $3.75
Location: 6 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 130926 *Qty: 2 SCREW $9.31
Location: 8 Prev | Next Part: 145482 *Qty: 1 BALL JOINT $74.17
Location: 9 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 10 Prev | Next Part: 152620 *Qty: 1 PEDAL ADJUSTEMENT PIN $66.70
Location: 11 Prev | Next Part: 152562 *Qty: 1 PIN FOR PEDALS $625.46
Location: 12 Prev | Next Part: 128612 *Qty: 4 SELF-LUBRICATING BUSHING $60.78
Location: 13 Prev | Next Part: 152808 *Qty: 1 LUTCH PEDAL BACK RETURNING SPRING $26.32
Location: 14 Prev | Next Part: 170083 *Qty: 1 PEDAL SUPPORT $1,725.08
Location: 14 Prev | Next Part: 151861 *Qty: 1 PEDAL SUPPORT -Not as spare part now -Replaced by 170083 Call
Location: 15 Prev | Next Part: 112166 *Qty: 1 FLEXIBLE PIN $0.90
Location: 16 Prev | Next Part: 13543524 *Qty: 4 STUD $0.90
Location: 16 Prev | Next Part: 12429524 *Qty: 4 STUD -Not as spare part now -Replaced by 13543524 $2.15
Location: 17 Prev | Next Part: 12638524 *Qty: 4 WASHER $0.90
Location: 18 Prev | Next Part: 133215 *Qty: 4 NUT $3.75
Location: 19 Prev | Next Part: 163235 *Qty: 1 BRAKE PEDAL $452.45
Location: 20 Prev | Next Part: 152848 *Qty: 1 BRAKE PEDAL DRILLED PLATE $156.63
Location: 21 Prev | Next Part: 10725914 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 152620 *Qty: 2 PEDAL ADJUSTEMENT PIN $66.70
Location: 23 Prev | Next Part: 152565 *Qty: 1 SPACER $52.69
Location: 24 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 25 Prev | Next Part: 12429324 *Qty: 2 STUD $1.83
Location: 26 Prev | Next Part: 145482 *Qty: 1 BALL JOINT $74.17
Location: 27 Prev | Next Part: 163560 *Qty: 1 SPACER $15.05
Location: 28 Prev | Next Part: 152632 *Qty: 1 PIN $10.84
Location: 29 Prev | Next Part: 152561 *Qty: 1 CONTROL LEVER FOR SWITCH $121.63
Location: 30 Prev | Next Part: 14228074 *Qty: 1 PLATE -Not as spare part now -Replaced by 14228076 Call
Location: 30 Prev | Next Part: 14228076 *Qty: 1 PLATE $2.42
Location: 31 Prev | Next Part: 133555 *Qty: 1 STOP LIGHTS CONTROL SWITCH $39.81
Location: 32 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 33 Prev | Next Part: 169430 *Qty: 1 CLUTCH CONTROL PUMP $723.99
Location: 33 Prev | Next Part: 175211 *Qty: 1 CLUTCH CONTROL PUMP -Not as spare part for F50 now -Replace by 169430 $354.42
Location: 34 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 133215 *Qty: 4 NUT $3.75
Location: 36 Prev | Next Part: 169362 *Qty: 3 SCREW COLLAR $3.14
Location: 36 Prev | Next Part: 12179690 *Qty: 3 SCREW COLLAR -Not as spare part for F50 now -Replace by 169362 Call
Location: 37 Prev | Next Part: 154888 *Qty: 1 PIPE FROM TANK TO CLUTCH PUMP $14.92
Location: 38 Prev | Next Part: 13423379 *Qty: 3 ELASTIC COLLAR Call
Location: 39 Prev | Next Part: 152564 *Qty: 1 BRAKE PUMP KNUCKLE $48.20
Location: 40 Prev | Next Part: 154995 *Qty: 1 BRAKES CONTROL PUMP Call
Location: 41 Prev | Next Part: 154886 *Qty: 1 PIPE FROM TANK TO FRONT BRAKES PUMP Call
Location: 42 Prev | Next Part: 154887 *Qty: 1 PIPE FROM TANK TO REAR BRAKES PUMP $12.65
Location: 43 Prev | Next Part: 154884 *Qty: 1 OIL TANK $39.72
Location: 44 Prev | Next Part: 154885 *Qty: 1 PUMP SUPPORT BRACKET $27.49
Location: 45 Prev | Next Part: 14305324 *Qty: 1 SCREW $0.90
Location: 46 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 14048115 *Qty: 1 NUT $0.90
Location: 48 Prev | Next Part: 163557 *Qty: 1 ACCELERATOR PEDAL ASSEMBLY $338.64
Location: 49 Prev | Next Part: 13027387 *Qty: 1 SCREW -Not as spare part now -Replace by 141399 $1.67
Location: 49 Prev | Next Part: 141399 *Qty: 1 SCREW $10.37
Location: 50 Prev | Next Part: 152566 *Qty: 1 SELF-LUBRICATING BUSHING $19.99
Location: 51 Prev | Next Part: 10730321 *Qty: 1 WASHER $0.90
Location: 52 Prev | Next Part: 133215 *Qty: 1 NUT $3.75
Location: 53 Prev | Next Part: 157575 *Qty: 1 RING $1.97
Location: 54 Prev | Next Part: 164966 *Qty: 1 ACCELERATOR CONTROL LEVER $203.38
Location: 55 Prev | Next Part: 10123811 *Qty: 1 BALL JOINT HEAD $25.81
Location: 56 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 57 Prev | Next Part: 154379 *Qty: 1 ACCELERATOR CABLE $76.48
Location: 58 Prev | Next Part: 174001 *Qty: 1 CLIP $0.90
Location: 59 Prev | Next Part: 10725914 *Qty: 2 NUT $0.90
Location: 60 Prev | Next Part: 170030 *Qty: 1 PEDAL ADJUSTEMENT PIN $17.67
Location: 60 Prev | Next Part: 152620 *Qty: 1 PEDAL ADJUSTEMENT PIN -Not as spare part for F50 now -Replaced by 170030 $66.70
Location: 61 Prev | Next Part: 164600 *Qty: 1 SUPPORT FOR ACCELERATOR CABLE $73.50
Location: 62 Prev | Next Part: 168981 *Qty: 1 COUNTER NUT $11.32
Location: 63 Prev | Next Part: 12544574 *Qty: 1 WASHER $3.07
Location: 64 Prev | Next Part: 12429524 *Qty: 2 STUD $2.15
Location: 65 Prev | Next Part: 112127 *Qty: 1 WASHER -mm. 0,9 $0.90
Location: 65 Prev | Next Part: 112128 *Qty: 1 WASHER -mm. 1,0 $0.90
Location: 65 Prev | Next Part: 112129 *Qty: 1 WASHER -mm. 1,1 $0.90
Location: 65 Prev | Next Part: 171351 *Qty: 1 WASHER -mm. 0,8 $18.00
Location: 65 Prev | Next Part: 112130 *Qty: 1 WASHER -mm. 1,2 $1.00
Location: 65 Prev | Next Part: 112131 *Qty: 1 WASHER -mm. 1,3 $0.90
Location: 66 Prev | Next Part: 184497 *Qty: 1 UNION $44.60
Location: 67 Prev | Next Part: 175189 *Qty: 1 SEAL RING $25.50

* Quantity shown indicates the number of pieces used in the diagram.
