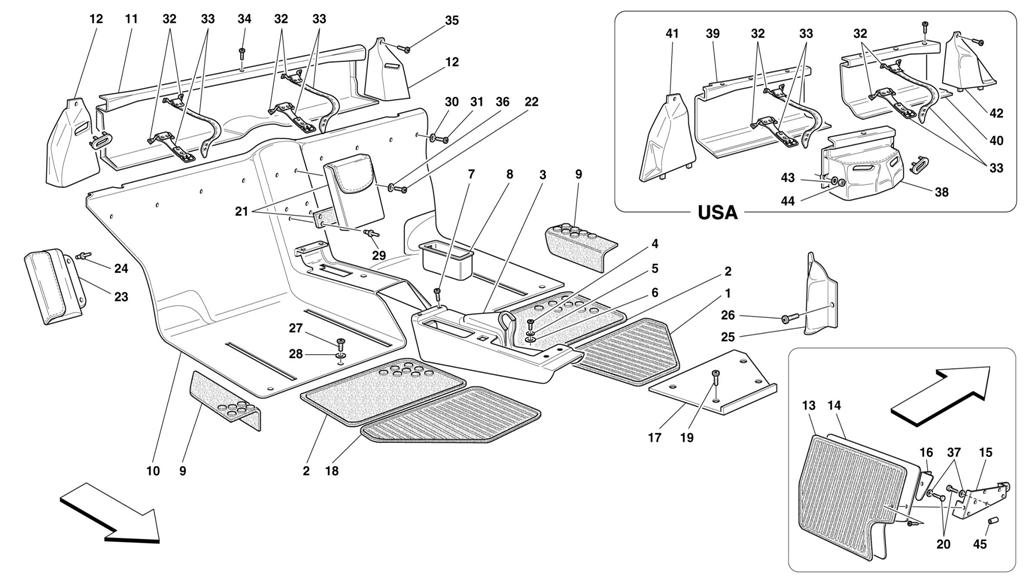

INNER TRIMS

Go to Split View

INNER TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 163505 *Qty: 1 PILOT SIDE CARPET $78.43
Location: 2 Prev | Next Part: 163506 *Qty: 2 CARPET NEAR THE SEAT $49.02
Location: 3 Prev | Next Part: 65095500 *Qty: 1 HAND BRAKE CONSOLE Call
Location: 4 Prev | Next Part: 13274177 *Qty: 1 SCREW $0.90
Location: 5 Prev | Next Part: 166467 *Qty: 1 WASHER $1.18
Location: 6 Prev | Next Part: 14496377 *Qty: 1 WASHER $1.13
Location: 7 Prev | Next Part: 13301577 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 64193300 *Qty: 1 LATERAL DRAWER $1,402.43
Location: 9 Prev | Next Part: 163249 *Qty: 2 CROSSMEMBER PROTECTION $118.66
Location: 10 Prev | Next Part: 64774500 *Qty: 1 WALL PANEL $6,527.94
Location: 11 Prev | Next Part: 64885700 *Qty: 1 UNDER REAR WINDOW VERTICAL FRAMEWORK -Not for USA $5,027.55
Location: 12 Prev | Next Part: 64885800 *Qty: 1 BELTS COVERING R.H. FRAMEWORK -Not for USA $832.14
Location: 12 Prev | Next Part: 64885900 *Qty: 1 BELTS COVERING L.H. FRAMEWORK -Not for USA $832.14
Location: 13 Prev | Next Part: 64761600 *Qty: 1 FOOT-REST RUBBER FOR PASSENGER $84.58
Location: 14 Prev | Next Part: 63674700 *Qty: 1 FOOT-REST FOR PASSENGER $76.87
Location: 15 Prev | Next Part: 64673300 *Qty: 1 R.H. BRACKET FOR FOOT-REST $93.57
Location: 16 Prev | Next Part: 64673400 *Qty: 1 L.H. BRACKET FOR FOOT-REST $73.50
Location: 17 Prev | Next Part: 64876800 *Qty: 1 FOOTREST SUPPORT H. 20 $1,841.22
Location: 17 Prev | Next Part: 167508 *Qty: 1 FOOTREST SUPPORT H. 20 -Not as spare part now -Replaced by 64876800 Call
Location: 17 Prev | Next Part: 64876500 *Qty: 1 FOOTREST SUPPORT H. 35 $1,530.00
Location: 18 Prev | Next Part: 163504 *Qty: 1 PASSENGER SIDE CARPET $52.28
Location: 19 Prev | Next Part: 13298277 *Qty: 2 SCREW -Valid for support 64876800 $0.90
Location: 19 Prev | Next Part: 13298577 *Qty: 2 SCREW -Valid for support 64876500 Call
Location: 19 Prev | Next Part: 13297877 *Qty: 2 SCREW -Valid for support 64876800 $0.90
Location: 20 Prev | Next Part: 13274177 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 63940600 *Qty: 1 DOCUMENT BAG $520.16
Location: 22 Prev | Next Part: 65054300 *Qty: 2 SCREW $2.48
Location: 23 Prev | Next Part: 65003900 *Qty: 1 LATERAL BAG $503.67
Location: 24 Prev | Next Part: 60225901 *Qty: 2 RIVET $1.22
Location: 25 Prev | Next Part: 64976900 *Qty: 1 FOOT-REST FOR DRIVER CLUTCH SIDE -Valid for support 64876800 $1,079.79
Location: 25 Prev | Next Part: 64761800 *Qty: 1 FOOT-REST FOR DRIVER CLUTCH SIDE -Valid for support 64876500 $1,095.39
Location: 26 Prev | Next Part: 169611 *Qty: 3 SCREW $1.58
Location: 27 Prev | Next Part: 13274177 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 29 Prev | Next Part: 60225901 *Qty: 4 RIVET $1.22
Location: 30 Prev | Next Part: 12638177 *Qty: 8 WASHER Superseded
Location: 31 Prev | Next Part: 13274972 *Qty: 8 SCREW $0.90
Location: 32 Prev | Next Part: 65021700 *Qty: 4 BRACKET Call
Location: 33 Prev | Next Part: 65021600 *Qty: 2 CAPOTTE HOLDING BELT $209.38
Location: 34 Prev | Next Part: 147365 *Qty: 1 SCREW -Not for USA $3.74
Location: 35 Prev | Next Part: 147365 *Qty: 2 SCREW $3.74
Location: 36 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 37 Prev | Next Part: 166467 *Qty: 4 WASHER $1.18
Location: 38 Prev | Next Part: 64886800 *Qty: 1 CENTRAL BELTS COVERING FRAMEWORK -Valid for USA $1,381.16
Location: 39 Prev | Next Part: 64886600 *Qty: 1 R.H.UNDER REAR WINDOW VERTICAL FRAMEWORK -Valid for USA Call
Location: 40 Prev | Next Part: 64886700 *Qty: 1 L.H.UNDER REAR WINDOW VERTICAL FRAMEWORK -Valid for USA $783.90
Location: 41 Prev | Next Part: 64886900 *Qty: 1 BELTS COVERING R.H. FRAMEWORK -Valid for USA $811.80
Location: 42 Prev | Next Part: 64887000 *Qty: 1 BELTS COVERING L.H. FRAMEWORK -Valid for USA $811.80
Location: 43 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 44 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 45 Prev | Next Part: 64673500 *Qty: 4 BUSHING $11.49

* Quantity shown indicates the number of pieces used in the diagram.
