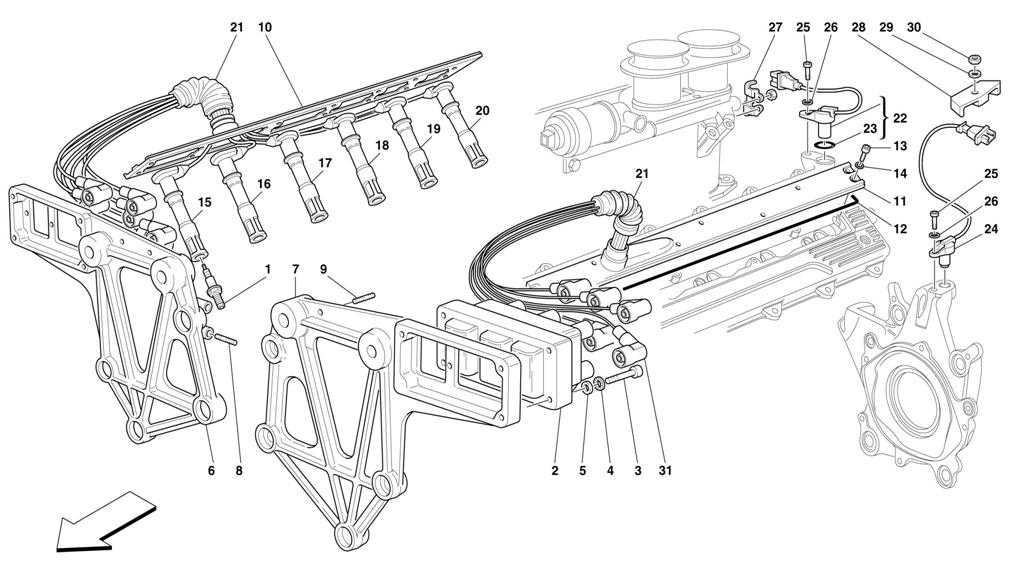

IGNITION SYSTEM

Go to Split View

IGNITION SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 167098 *Qty: 12 SPARK PLUG Call
Location: 2 Prev | Next Part: 165854 *Qty: 2 IGNITION COIL $315.78
Location: 3 Prev | Next Part: 95880322 *Qty: 8 SCREW Call
Location: 4 Prev | Next Part: 12605371 *Qty: 8 WASHER $0.90
Location: 5 Prev | Next Part: 60698400 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 164914 *Qty: 1 R.H. PLATE $1,054.94
Location: 7 Prev | Next Part: 164913 *Qty: 1 L.H. PLATE $1,054.94
Location: 8 Prev | Next Part: 10980114 *Qty: 2 STUD $1.15
Location: 9 Prev | Next Part: 11499924 *Qty: 4 STUD Call
Location: 10 Prev | Next Part: 153371 *Qty: 1 R.H. COVER $660.36
Location: 11 Prev | Next Part: 153372 *Qty: 1 L.H. COVER $657.86
Location: 12 Prev | Next Part: 153361 *Qty: 2 GASKET $23.66
Location: 13 Prev | Next Part: 153359 *Qty: 18 SCREW -Not as spare part now -Replaced by 14303024 $2.26
Location: 13 Prev | Next Part: 14303024 *Qty: 18 SCREW $1.10
Location: 14 Prev | Next Part: 12604079 *Qty: 18 WASHER $1.83
Location: 15 Prev | Next Part: 156951 *Qty: 1 SPARK PLUG CABLE -CYLINDER 1 $129.28
Location: 15 Prev | Next Part: 156962 *Qty: 1 SPARK PLUG CABLE -CYLINDER 12 $129.99
Location: 16 Prev | Next Part: 156952 *Qty: 1 SPARK PLUG CABLE -CYLINDER 2 $130.21
Location: 16 Prev | Next Part: 156961 *Qty: 1 SPARK PLUG CABLE -CYLINDER 11 $130.21
Location: 17 Prev | Next Part: 156953 *Qty: 1 SPARK PLUG CABLE -CYLINDER 3 $129.99
Location: 17 Prev | Next Part: 156960 *Qty: 1 SPARK PLUG CABLE -CYLINDER 10 $130.21
Location: 18 Prev | Next Part: 156954 *Qty: 1 SPARK PLUG CABLE -CYLINDER 4 $129.99
Location: 18 Prev | Next Part: 156959 *Qty: 1 SPARK PLUG CABLE -CYLINDER 9 $130.15
Location: 19 Prev | Next Part: 156955 *Qty: 1 SPARK PLUG CABLE -CYLINDER 5 $130.21
Location: 19 Prev | Next Part: 156958 *Qty: 1 SPARK PLUG CABLE -CYLINDER 8 $130.21
Location: 20 Prev | Next Part: 156956 *Qty: 1 SPARK PLUG CABLE -CYLINDER 6 $130.19
Location: 20 Prev | Next Part: 156957 *Qty: 1 SPARK PLUG CABLE -CYLINDER 7 $130.21
Location: 21 Prev | Next Part: 159562 *Qty: 2 BOOT $41.20
Location: 22 Prev | Next Part: 150866 *Qty: 2 PHASE SENSOR $133.45
Location: 23 Prev | Next Part: 150867 *Qty: 2 SEAL RING $2.16
Location: 24 Prev | Next Part: 167939 *Qty: 1 L.H. ANGOLAR SPEED SENSOR $60.75
Location: 24 Prev | Next Part: 158714 *Qty: 1 R.H. ANGOLAR SPEED SENSOR Call
Location: 25 Prev | Next Part: 14305224 *Qty: 4 SCREW $0.90
Location: 26 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 168115 *Qty: 1 BRACKET $174.49
Location: 28 Prev | Next Part: 146654 *Qty: 1 SUPPORT $90.40
Location: 29 Prev | Next Part: 10519377 *Qty: 1 WASHER $0.90
Location: 30 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 162640 *Qty: 12 90? BOOT Call

* Quantity shown indicates the number of pieces used in the diagram.
