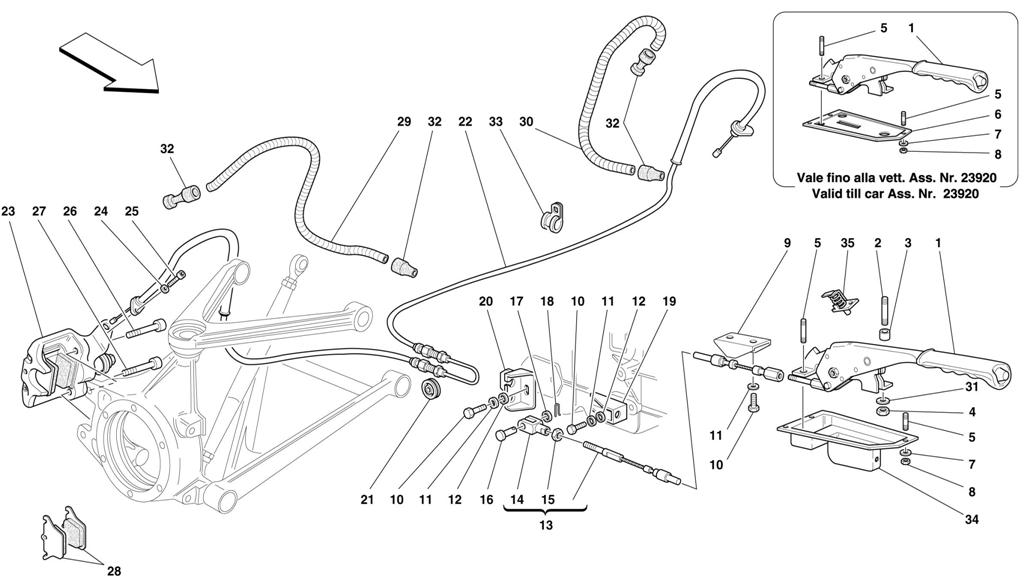

HAND-BRAKE CONTROL AND CALIPER

Go to Split View

HAND-BRAKE CONTROL AND CALIPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 167900 *Qty: 1 COMPLETE HAND-BRAKE LEVER $287.22
Location: 2 Prev | Next Part: 13517224 *Qty: 1 STUD $1.03
Location: 3 Prev | Next Part: 136670 *Qty: 1 SPACER $5.72
Location: 4 Prev | Next Part: 133215 *Qty: 2 NUT $3.75
Location: 5 Prev | Next Part: 13516624 *Qty: 1 STUD $0.90
Location: 6 Prev | Next Part: 167406 *Qty: 1 GASKET -Valid till car Ass. Nr. 23920 $111.10
Location: 7 Prev | Next Part: 14496324 *Qty: 3 WASHER $4.02
Location: 8 Prev | Next Part: 113647 *Qty: 3 NUT $0.90
Location: 9 Prev | Next Part: 154615 *Qty: 1 SUPPORT FOR HAND-BRAKE CABLE $76.45
Location: 10 Prev | Next Part: 16043534 *Qty: 4 SCREW $0.90
Location: 11 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 12642024 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 154380 *Qty: 1 HAND-BRAKE CONTROL FRONT CABLE $66.63
Location: 14 Prev | Next Part: 105424 *Qty: 1 END Call
Location: 15 Prev | Next Part: 16102315 *Qty: 1 NUT $3.65
Location: 16 Prev | Next Part: 10050814 *Qty: 1 PIN $3.29
Location: 17 Prev | Next Part: 13550301 *Qty: 1 WASHER $0.90
Location: 18 Prev | Next Part: 10734201 *Qty: 1 SPLIT PIN Call
Location: 19 Prev | Next Part: 151805 *Qty: 1 BRACKET FOR FRONT CABLE $37.57
Location: 20 Prev | Next Part: 151821 *Qty: 1 BRACKET FOR REAR CABLE $91.36
Location: 21 Prev | Next Part: 122091 *Qty: 1 PULLEY $9.47
Location: 22 Prev | Next Part: 162809 *Qty: 1 HAND-BRAKE CONTROL REAR CABLE $498.60
Location: 23 Prev | Next Part: 162650 *Qty: 1 R.H. CALIPER FOR HAND BRAKE $569.27
Location: 23 Prev | Next Part: 162653 *Qty: 1 L.H. CALIPER FOR HAND BRAKE Call
Location: 24 Prev | Next Part: 127493 *Qty: 2 WASHER Superseded
Location: 25 Prev | Next Part: 10977824 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 14308924 *Qty: 2 SCREW $5.17
Location: 27 Prev | Next Part: 14308424 *Qty: 2 SCREW $3.90
Location: 28 Prev | Next Part: 169549 *Qty: 1 KIT OF PADS FOR HAND-BRAKE CALIPERS $227.29
Location: 29 Prev | Next Part: 169529 *Qty: 1 R.H. HEAT PROTECTION SHEATH $27.39
Location: 30 Prev | Next Part: 169612 *Qty: 1 L.H. HEAT PROTECTION SHEATH $31.67
Location: 31 Prev | Next Part: 14499401 *Qty: 4 WASHER $0.90
Location: 32 Prev | Next Part: 65090800 *Qty: 4 SHEATH $13.22
Location: 33 Prev | Next Part: 10450190 *Qty: 1 BRACKET $0.90
Location: 34 Prev | Next Part: 173481 *Qty: 1 GASKET -Valid from car Ass. Nr. 23921 $124.49
Location: 35 Prev | Next Part: 122043 *Qty: 1 SWITCH FOR BRAKE INDICATOR LAMP $94.06

* Quantity shown indicates the number of pieces used in the diagram.
