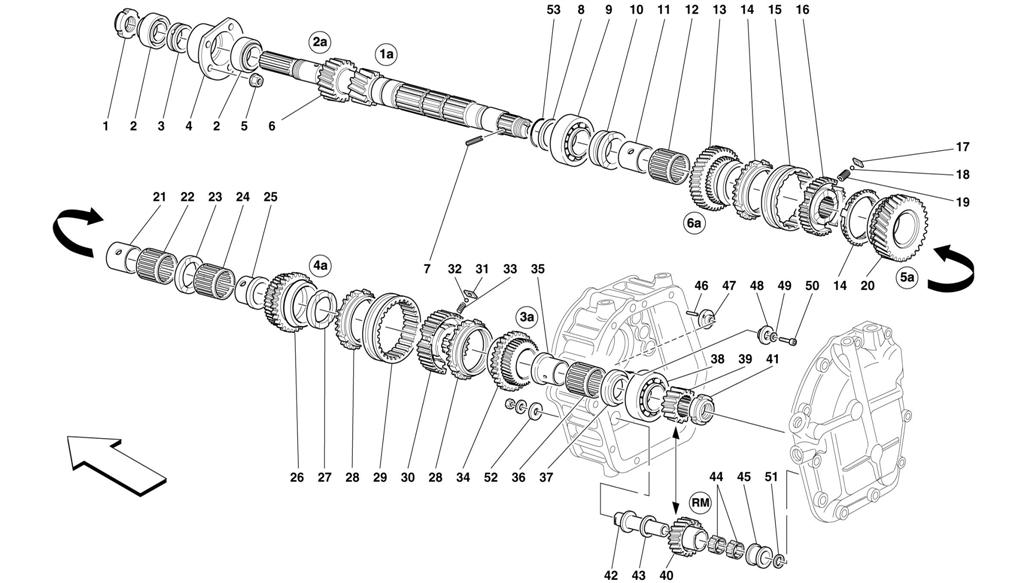

GEARBOX MAIN SHAFT

Go to Split View

GEARBOX MAIN SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 151092 *Qty: 1 RING NUT $20.73
Location: 2 Prev | Next Part: 121821 *Qty: 2 BEARING $57.69
Location: 3 Prev | Next Part: 122128 *Qty: 1 SPACER $17.11
Location: 3 Prev | Next Part: 138137 *Qty: 1 SPACER -As an alternative $12.66
Location: 4 Prev | Next Part: 156438 *Qty: 1 BAG FOR BEARINGS $169.31
Location: 5 Prev | Next Part: 133215 *Qty: 5 NUT $3.75
Location: 6 Prev | Next Part: 166980 *Qty: 1 MAIN SHAFT FOR GEAR LEVER $1,399.61
Location: 7 Prev | Next Part: 14601170 *Qty: 1 FLEXIBLE PIN $0.90
Location: 8 Prev | Next Part: 156908 *Qty: 3 SPACER 0,3 mm. -Possible fitting $9.59
Location: 8 Prev | Next Part: 156909 *Qty: 3 SPACER 0,5 mm. -Possible fitting $9.59
Location: 9 Prev | Next Part: 131056 *Qty: 1 BEARING $202.37
Location: 10 Prev | Next Part: 156896 *Qty: 1 SPACER $72.05
Location: 11 Prev | Next Part: 156917 *Qty: 1 CARRIER BUSH $80.69
Location: 12 Prev | Next Part: 159193 *Qty: 1 ROLLER CAGE $16.42
Location: 13 Prev | Next Part: 156091 *Qty: 1 PINION FOR 6th GEAR $425.48
Location: 14 Prev | Next Part: 152209 *Qty: 2 SYNCHRONIZER RING $339.20
Location: 15 Prev | Next Part: 152206 *Qty: 1 SLEEVE FOR SYNCHRONIZER $160.15
Location: 16 Prev | Next Part: 152207 *Qty: 1 SYNCHRONIZER BODY $351.09
Location: 17 Prev | Next Part: 152195 *Qty: 3 PAD FOR SYNCHRONIZER $0.90
Location: 18 Prev | Next Part: 152197 *Qty: 3 BALL $4.34
Location: 19 Prev | Next Part: 152196 *Qty: 3 SPRING $0.93
Location: 20 Prev | Next Part: 166864 *Qty: 1 PINION FOR 5th GEAR $405.55
Location: 21 Prev | Next Part: 156917 *Qty: 1 CARRIER BUSH $80.69
Location: 22 Prev | Next Part: 159193 *Qty: 1 ROLLER CAGE $16.42
Location: 23 Prev | Next Part: 156921 *Qty: 1 SPACER $71.12
Location: 24 Prev | Next Part: 159193 *Qty: 1 ROLLER CAGE $16.42
Location: 25 Prev | Next Part: 156923 *Qty: 1 CARRIER BUSH $89.21
Location: 26 Prev | Next Part: 166976 *Qty: 1 PINION FOR 4th GEAR $653.16
Location: 27 Prev | Next Part: 156940 *Qty: 1 SPACER $66.03
Location: 28 Prev | Next Part: 155155 *Qty: 2 SYNCHRONIZER RING $202.51
Location: 29 Prev | Next Part: 152198 *Qty: 1 SLEEVE FOR SYNCHRONIZER $288.79
Location: 30 Prev | Next Part: 152199 *Qty: 1 SYNCHRONIZER BODY $234.04
Location: 31 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 32 Prev | Next Part: 152197 *Qty: 3 BALL $4.34
Location: 33 Prev | Next Part: 152196 *Qty: 3 SPRING $0.93
Location: 34 Prev | Next Part: 166978 *Qty: 1 PINION FOR 3rd GEAR $2,123.73
Location: 35 Prev | Next Part: 157618 *Qty: 1 CARRIER BUSH $248.54
Location: 36 Prev | Next Part: 156162 *Qty: 1 ROLLER CAGE $19.01
Location: 37 Prev | Next Part: 151135 *Qty: 1 SPACER $41.23
Location: 38 Prev | Next Part: 108656 *Qty: 1 BEARING $643.75
Location: 39 Prev | Next Part: 156234 *Qty: 1 RM DRIVING GEAR $194.72
Location: 40 Prev | Next Part: 156248 *Qty: 1 IDLE GEAR FOR REVERSE $1,488.69
Location: 41 Prev | Next Part: 156195 *Qty: 1 RING NUT $20.73
Location: 42 Prev | Next Part: 156869 *Qty: 1 NEUTRAL GEAR PIN Call
Location: 43 Prev | Next Part: 100703 *Qty: 1 SPACER $29.34
Location: 44 Prev | Next Part: 104734 *Qty: 2 ROLLER CAGE $7.22
Location: 45 Prev | Next Part: 156892 *Qty: 1 SPACER $23.71
Location: 46 Prev | Next Part: 14159470 *Qty: 1 PIN $0.90
Location: 47 Prev | Next Part: 157010 *Qty: 1 BUSHING $11.11
Location: 48 Prev | Next Part: 157009 *Qty: 1 BUSHING $9.34
Location: 49 Prev | Next Part: 10569273 *Qty: 1 WASHER $0.90
Location: 50 Prev | Next Part: 14305224 *Qty: 1 SCREW $0.90
Location: 51 Prev | Next Part: 123622 *Qty: 1 GASKET $1.97
Location: 52 Prev | Next Part: 156891 *Qty: 1 WASHER $7.21
Location: 53 Prev | Next Part: 109724 *Qty: 1 O.R. GASKET $1.63

* Quantity shown indicates the number of pieces used in the diagram.
