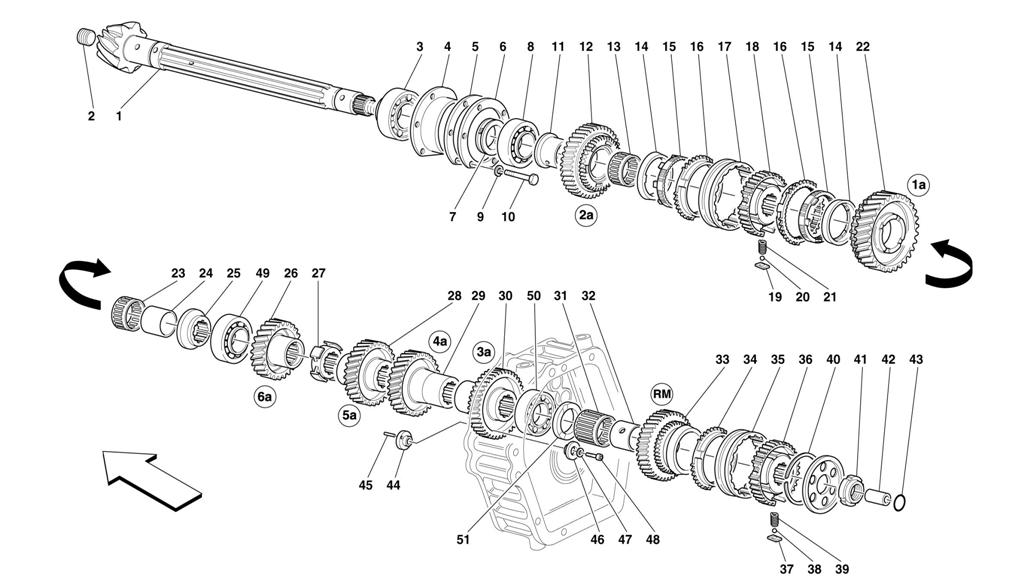

GEARBOX LAY SHAFT

Go to Split View

GEARBOX LAY SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 169544 *Qty: 1 COMPLETE CROWN WHEEL AND PINION R.10/37 -Not as spare part now -Replace by 169792 Call
Location: - Prev | Next Part: 169792 *Qty: 1 COMPLETE CROWN WHEEL AND PINION R.10/37 $5,332.07
Location: 1 Prev | Next Part: 168091 *Qty: 1 OUTPUT SHAFT -Not as spare part now -With the complete crown wheel and pinion 169792 Call
Location: 1 Prev | Next Part: 168139 *Qty: 1 OUTPUT SHAFT -Not as spare part now -With the complete crown wheel and pinion 169544 Call
Location: 2 Prev | Next Part: 10269850 *Qty: 1 PLUG -Valid till gearbox N? 32 $2.37
Location: 3 Prev | Next Part: 101636 *Qty: 1 BEARING $214.46
Location: 4 Prev | Next Part: 156376 *Qty: 1 BAG FOR BEARINGS $202.26
Location: 5 Prev | Next Part: 151279 *Qty: 1 SPACER -Th. mm.1,8- -Possible fitting $104.05
Location: 5 Prev | Next Part: 151280 *Qty: 1 SPACER -Th. mm. 2,2- -Possible fitting $104.05
Location: 5 Prev | Next Part: 151281 *Qty: 1 SPACER -Th. mm. 2,4- -Possible fitting $104.05
Location: 5 Prev | Next Part: 146715 *Qty: 1 SPACER -Th. mm. 2,0- $104.05
Location: 5 Prev | Next Part: 151278 *Qty: 1 SPACER -Th. mm. 1,6- -Possible fitting $104.05
Location: 6 Prev | Next Part: 146716 *Qty: 1 SPACER -Th. mm. 3,5- $173.47
Location: 7 Prev | Next Part: 122152 *Qty: 1 SPACER $181.38
Location: 7 Prev | Next Part: 138136 *Qty: 1 SPACER -As an alternative- $22.93
Location: 8 Prev | Next Part: 121822 *Qty: 1 BEARING $488.05
Location: 9 Prev | Next Part: 127496 *Qty: 6 WASHER $0.90
Location: 10 Prev | Next Part: 16044021 *Qty: 6 SCREW $0.90
Location: 11 Prev | Next Part: 156894 *Qty: 1 CARRIER BUSH $91.69
Location: 12 Prev | Next Part: 166969 *Qty: 1 PINION FOR 2nd GEAR $589.04
Location: 13 Prev | Next Part: 101604 *Qty: 1 ROLLER CAGE $26.15
Location: 14 Prev | Next Part: 169780 *Qty: 2 INNER RING -Valid after stock exhaustion of 152193 $100.10
Location: 15 Prev | Next Part: 169779 *Qty: 2 SYNCHRONIZER MIDDLING RING -Valid after stock exhaustion of 152194 $94.03
Location: 16 Prev | Next Part: 152191 *Qty: 2 SYNCHRONIZER RING $247.52
Location: 17 Prev | Next Part: 152189 *Qty: 1 SLEEVE $160.10
Location: 18 Prev | Next Part: 154439 *Qty: 1 SYNCHRONIZER BODY $389.57
Location: 19 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 20 Prev | Next Part: 152197 *Qty: 3 BALL $4.34
Location: 21 Prev | Next Part: 152196 *Qty: 3 SPRING $0.93
Location: 22 Prev | Next Part: 166967 *Qty: 1 PINION FOR 1st GEAR $730.52
Location: 23 Prev | Next Part: 101604 *Qty: 1 ROLLER CAGE $26.15
Location: 24 Prev | Next Part: 104704 *Qty: 1 ROLLER CAGE RACE $748.21
Location: 25 Prev | Next Part: 156895 *Qty: 1 SPACER $76.30
Location: 26 Prev | Next Part: 156224 *Qty: 1 PINION FOR 6th GEAR $282.04
Location: 27 Prev | Next Part: 150810 *Qty: 1 TRANSMITTING DISC $371.14
Location: 28 Prev | Next Part: 166880 *Qty: 1 PINION FOR 5th GEAR Call
Location: 29 Prev | Next Part: 166974 *Qty: 1 PINION FOR 4th GEAR $303.18
Location: 30 Prev | Next Part: 166973 *Qty: 1 PINION FOR 3th GEAR $1,908.01
Location: 31 Prev | Next Part: 159193 *Qty: 1 ROLLER CAGE $16.42
Location: 32 Prev | Next Part: 156948 *Qty: 1 ROLLER CAGE RACE $77.53
Location: 33 Prev | Next Part: 166880 *Qty: 1 PINION FOR 5th GEAR Call
Location: 34 Prev | Next Part: 152479 *Qty: 1 SYNCHRONIZER RING $270.05
Location: 35 Prev | Next Part: 152206 *Qty: 1 SLEEVE $160.15
Location: 36 Prev | Next Part: 154475 *Qty: 1 SYNCHRONIZER BODY $245.97
Location: 37 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 38 Prev | Next Part: 152197 *Qty: 3 BALL $4.34
Location: 39 Prev | Next Part: 152196 *Qty: 3 SPRING $0.93
Location: 40 Prev | Next Part: 156655 *Qty: 1 LOCK RING $1.70
Location: 41 Prev | Next Part: 156980 *Qty: 1 RING NUT $20.73
Location: 42 Prev | Next Part: 156975 *Qty: 1 BUSHING $19.09
Location: 43 Prev | Next Part: 101031 *Qty: 1 GASKET $4.77
Location: 44 Prev | Next Part: 157010 *Qty: 1 THREADED BUSHING $11.11
Location: 45 Prev | Next Part: 14159470 *Qty: 1 FLEXIBLE PIN $0.90
Location: 46 Prev | Next Part: 157009 *Qty: 1 BUSHING $9.34
Location: 47 Prev | Next Part: 10569273 *Qty: 1 WASHER $0.90
Location: 48 Prev | Next Part: 14305224 *Qty: 1 SCREW $0.90
Location: 49 Prev | Next Part: 131056 *Qty: 1 BEARING $202.37
Location: 50 Prev | Next Part: 108656 *Qty: 1 BEARING $643.75
Location: 51 Prev | Next Part: 151135 *Qty: 1 SPACER $41.23

* Quantity shown indicates the number of pieces used in the diagram.
