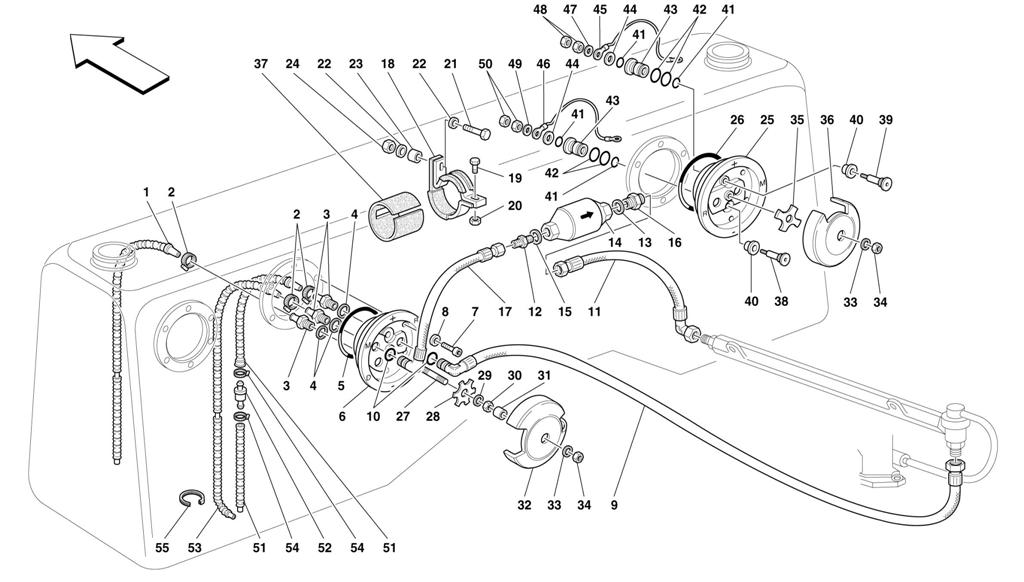

FUEL INJECTION SYSTEM

Go to Split View

FUEL INJECTION SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 170067 *Qty: 1 FUEL FLOWING BACK PIPE $98.98
Location: 2 Prev | Next Part: 13431570 *Qty: 5 SCREW COLLAR -Not as spare part now -Replaced by 171406 $1.51
Location: 2 Prev | Next Part: 171406 *Qty: 5 SCREW COLLAR $0.99
Location: 3 Prev | Next Part: 164331 *Qty: 5 UNION $47.86
Location: 4 Prev | Next Part: 11270150 *Qty: 5 GASKET $0.90
Location: 5 Prev | Next Part: 164330 *Qty: 2 GASKET $4.00
Location: 6 Prev | Next Part: 165775 *Qty: 1 L.H. FLANGE $1,572.02
Location: 7 Prev | Next Part: 164329 *Qty: 12 SCREW $1.27
Location: 8 Prev | Next Part: 12601274 *Qty: 12 WASHER $0.90
Location: 9 Prev | Next Part: 162863 *Qty: 1 R.H. FUEL FLOWING BACK PIPE Call
Location: 9 Prev | Next Part: 162862 *Qty: 1 L.H. FUEL FLOWING BACK PIPE $744.51
Location: 10 Prev | Next Part: 127816 *Qty: 8 GASKET $4.65
Location: 11 Prev | Next Part: 170681 *Qty: 2 PIPE FROM FILTER TO FLAUTE -Valid after stock exhaustion of 162860 Call
Location: 11 Prev | Next Part: 162860 *Qty: 2 PIPE FROM FILTER TO FLAUTE -Valid till stock exhaustion Call
Location: 12 Prev | Next Part: 109889 *Qty: 2 UNION Call
Location: 13 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 14 Prev | Next Part: 186922 *Qty: 2 FUEL FILTER $38.00
Location: 15 Prev | Next Part: 113910 *Qty: 6 GASKET Superseded
Location: 16 Prev | Next Part: 109797 *Qty: 2 UNION $45.03
Location: 17 Prev | Next Part: 162856 *Qty: 2 PIPE FROM TANK TO FILTER Call
Location: 18 Prev | Next Part: 152885 *Qty: 2 BRACKET WITH SHEATH $10.67
Location: 19 Prev | Next Part: 10902524 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 115200 *Qty: 2 SCREW $8.87
Location: 22 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 166730 *Qty: 2 SPACER $8.02
Location: 24 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 164334 *Qty: 1 R.H. FLANGE $1,572.02
Location: 26 Prev | Next Part: 154102 *Qty: 2 GASKET $9.27
Location: 27 Prev | Next Part: 165928 *Qty: 2 STUD $14.18
Location: 28 Prev | Next Part: 165776 *Qty: 1 L.H. SAFETY PLATE $51.84
Location: 29 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 165929 *Qty: 2 SPACER $7.95
Location: 32 Prev | Next Part: 165999 *Qty: 1 L.H. HEAT SHIELD SMALL SUMP $80.71
Location: 33 Prev | Next Part: 14496204 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 14084015 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 129316 *Qty: 1 R.H. SAFETY PLATE Call
Location: 36 Prev | Next Part: 168348 *Qty: 1 R.H. HEAT SHIELD SMALL SUMP $73.79
Location: 37 Prev | Next Part: 164206 *Qty: 2 FILTER INSULATION $102.25
Location: 38 Prev | Next Part: 169933 *Qty: 2 GROUND PIN $33.81
Location: 39 Prev | Next Part: 169934 *Qty: 2 GROUND PIN $33.81
Location: 40 Prev | Next Part: 170072 *Qty: 4 BUSHING FOR FLANGE $22.52
Location: 41 Prev | Next Part: 14452681 *Qty: 8 GASKET $0.90
Location: 42 Prev | Next Part: 134705 *Qty: 8 GASKET $0.90
Location: 43 Prev | Next Part: 170017 *Qty: 4 BUSHING $228.71
Location: 44 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 45 Prev | Next Part: 170069 *Qty: 2 POSITIVE ELECTRIC CABLE $227.86
Location: 46 Prev | Next Part: 170070 *Qty: 2 NEGATIVE ELECTRIC CABLE $31.89
Location: 47 Prev | Next Part: 10615470 *Qty: 2 WASHER Call
Location: 48 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 49 Prev | Next Part: 149951 *Qty: 2 WASHER Superseded
Location: 50 Prev | Next Part: 15896414 *Qty: 4 NUT $0.90
Location: 51 Prev | Next Part: 170698 *Qty: 4 FUEL FLOWING BACK PIPE Call
Location: 52 Prev | Next Part: 166540 *Qty: 2 NONRETURN VALVE $31.93
Location: 53 Prev | Next Part: 170067 *Qty: 2 FUEL DELIVERY TUBE $98.98
Location: 54 Prev | Next Part: 13431570 *Qty: 4 SCREW COLLAR -Not as spare part now -Replaced by 171406 $1.51
Location: 54 Prev | Next Part: 171406 *Qty: 4 SCREW COLLAR $0.99
Location: 55 Prev | Next Part: 14560180 *Qty: 4 CLAMP Call

* Quantity shown indicates the number of pieces used in the diagram.
