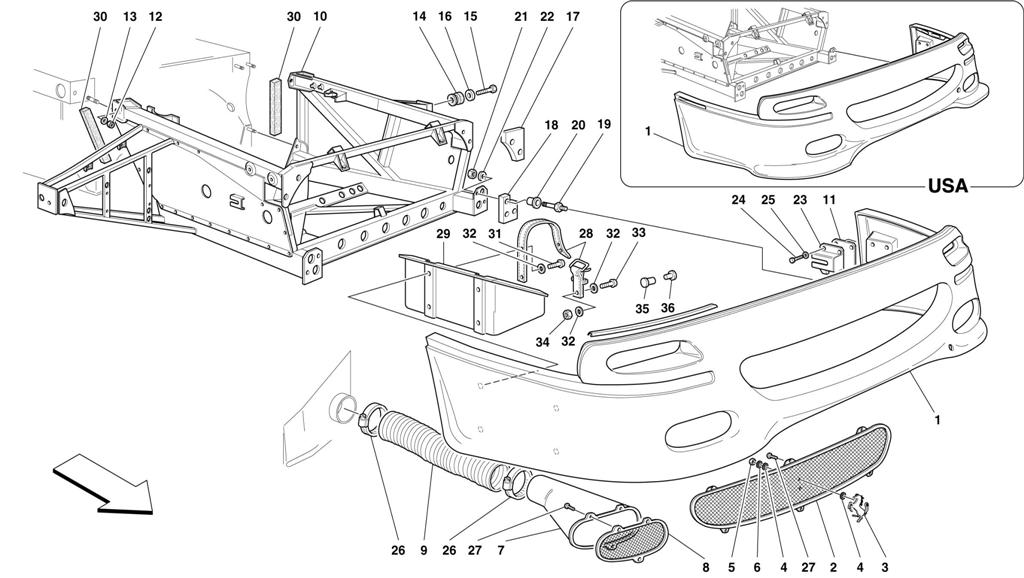

FRONT FRAME AND BUMPER

Go to Split View

FRONT FRAME AND BUMPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64634810 *Qty: 1 COMPLETE FRONT BUMPER -Valid for USA $18,529.13
Location: 1 Prev | Next Part: 64130210 *Qty: 1 COMPLETE FRONT BUMPER -Not for USA $30,856.50
Location: 2 Prev | Next Part: 63535400 *Qty: 1 BUMPER GRILL FOR RADIATOR $976.03
Location: 3 Prev | Next Part: 60032109 *Qty: 1 CAVALLINO RAMPANTE $41.18
Location: 4 Prev | Next Part: 60995100 *Qty: 4 RUBBER RING $3.39
Location: 5 Prev | Next Part: 61002200 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 12639401 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 64130700 *Qty: 1 R.H. BRAKES AIR INLET $2,017.72
Location: 7 Prev | Next Part: 64130800 *Qty: 1 L.H. BRAKES AIR INLET $2,017.72
Location: 8 Prev | Next Part: 63673300 *Qty: 2 BUMPER GRILL FOR AIR INLET $291.83
Location: 9 Prev | Next Part: 63654500 *Qty: 2 AIR DELIVERY TUBE $686.90
Location: 10 Prev | Next Part: 164271 *Qty: 1 DEFORMABLE FRAME $15,554.83
Location: 11 Prev | Next Part: 64133300 *Qty: 2 SPACER $78.71
Location: 12 Prev | Next Part: 133215 *Qty: 10 NUT $3.75
Location: 13 Prev | Next Part: 10730321 *Qty: 10 WASHER $0.90
Location: 14 Prev | Next Part: 65017300 *Qty: 2 SPACER $30.11
Location: 15 Prev | Next Part: 11306934 *Qty: 2 SCREW $0.90
Location: 16 Prev | Next Part: 12646801 *Qty: 2 WASHER $1.65
Location: 17 Prev | Next Part: 64132400 *Qty: 2 UPPER SMALL BLOCK Call
Location: 18 Prev | Next Part: 64132500 *Qty: 2 LOWER SMALL BLOCK $21.50
Location: 19 Prev | Next Part: 64132600 *Qty: 10 PIN $195.53
Location: 20 Prev | Next Part: 65020400 *Qty: 10 SPACER $33.42
Location: 21 Prev | Next Part: 15896214 *Qty: 10 NUT $0.90
Location: 22 Prev | Next Part: 12643724 *Qty: 10 WASHER $0.90
Location: 23 Prev | Next Part: 64133100 *Qty: 1 BUMPER LATERAL FIXING R.H. BRACKET $320.93
Location: 23 Prev | Next Part: 64133200 *Qty: 1 BUMPER LATERAL FIXING L.H. BRACKET $245.44
Location: 24 Prev | Next Part: 10902124 *Qty: 6 SCREW $0.90
Location: 25 Prev | Next Part: 12644424 *Qty: 6 WASHER $0.90
Location: 26 Prev | Next Part: 13001290 *Qty: 4 SCREW COLLAR $2.48
Location: 27 Prev | Next Part: 13274472 *Qty: 12 SCREW $0.90
Location: 28 Prev | Next Part: 65021000 *Qty: 2 BELT WITH BUCKLE Call
Location: 29 Prev | Next Part: 64994200 *Qty: 1 CONTAINER FOR TYRE REPAIR CYLINDER $1,836.57
Location: 30 Prev | Next Part: 168762 *Qty: 2 RUBBER THICKNESS $3.43
Location: 31 Prev | Next Part: 169592 *Qty: 4 SCREW -Not as spare part Call
Location: 32 Prev | Next Part: 14496377 *Qty: 8 WASHER $1.14
Location: 33 Prev | Next Part: 169593 *Qty: 4 SCREW $1.18
Location: 34 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 65099500 *Qty: 2 RIVET Call
Location: 36 Prev | Next Part: 65099600 *Qty: 2 RIVET Call

* Quantity shown indicates the number of pieces used in the diagram.
