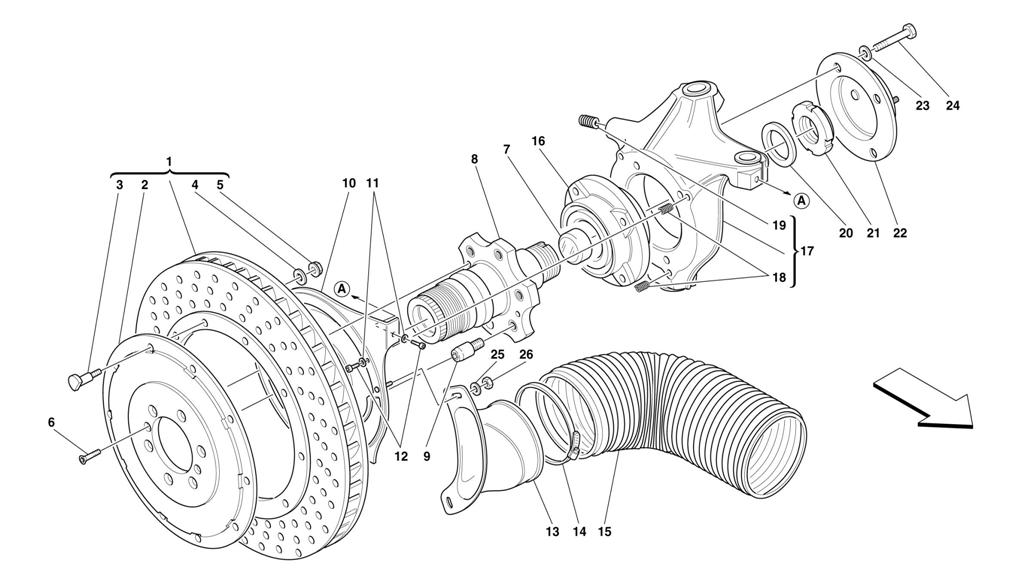

FRONT BRAKE DISC AND STEERING KNUCKLE

Go to Split View

FRONT BRAKE DISC AND STEERING KNUCKLE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165272 *Qty: 1 L.H. FRONT BRAKE DISC WITH FLANGE $2,481.08
Location: 1 Prev | Next Part: 165273 *Qty: 1 R.H. FRONT BRAKE DISC WITH FLANGE Call
Location: 2 Prev | Next Part: 165281 *Qty: 2 FLANGE FOR BRAKE DISC Call
Location: 3 Prev | Next Part: 139720 *Qty: 20 SCREW $36.55
Location: 4 Prev | Next Part: 139721 *Qty: 20 WASHER $8.74
Location: 5 Prev | Next Part: 139951 *Qty: 20 NUT $1.05
Location: 6 Prev | Next Part: 14441324 *Qty: 4 SCREW $0.90
Location: 7 Prev | Next Part: 14329201 *Qty: 2 CUP $11.30
Location: 8 Prev | Next Part: 163552 *Qty: 1 R.H. FRONT WHEEL HUB $3,968.25
Location: 8 Prev | Next Part: 163553 *Qty: 1 L.H. FRONT WHEEL HUB $3,968.25
Location: 9 Prev | Next Part: 150780 *Qty: 12 WHEEL STUD $73.78
Location: 10 Prev | Next Part: 164504 *Qty: 1 R.H. AIR INTAKE $633.94
Location: 10 Prev | Next Part: 164505 *Qty: 1 L.H. AIR INTAKE $633.94
Location: 11 Prev | Next Part: 10519377 *Qty: 10 WASHER $0.90
Location: 12 Prev | Next Part: 14304187 *Qty: 10 SCREW $0.90
Location: 13 Prev | Next Part: 157660 *Qty: 1 R.H. AIR INTAKE DUCT $1,670.07
Location: 13 Prev | Next Part: 157661 *Qty: 1 L.H. AIR INTAKE DUCT $1,670.07
Location: 14 Prev | Next Part: 13001290 *Qty: 4 SCREW COLLAR $2.55
Location: 15 Prev | Next Part: 167005 *Qty: 2 AIR DELIVERY TUBE $787.83
Location: 16 Prev | Next Part: 150608 *Qty: 2 BEARING $2,526.94
Location: 17 Prev | Next Part: 151474 *Qty: 1 COMPLETE R.H. STEERING KNUCKLE Call
Location: 17 Prev | Next Part: 151473 *Qty: 1 COMPLETE L.H. STEERING KNUCKLE $1,563.72
Location: 18 Prev | Next Part: 13521770 *Qty: 10 THREADED INSERT $2.23
Location: 19 Prev | Next Part: 13524670 *Qty: 4 THREADED INSERT $0.97
Location: 20 Prev | Next Part: 112800 *Qty: 2 WASHER $17.76
Location: 21 Prev | Next Part: 150785 *Qty: 2 RING NUT $335.61
Location: 22 Prev | Next Part: 150784 *Qty: 2 COVER $23.08
Location: 23 Prev | Next Part: 166448 *Qty: 8 WASHER $15.86
Location: 24 Prev | Next Part: 16323934 *Qty: 8 SCREW $20.47
Location: 25 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 14058311 *Qty: 4 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
