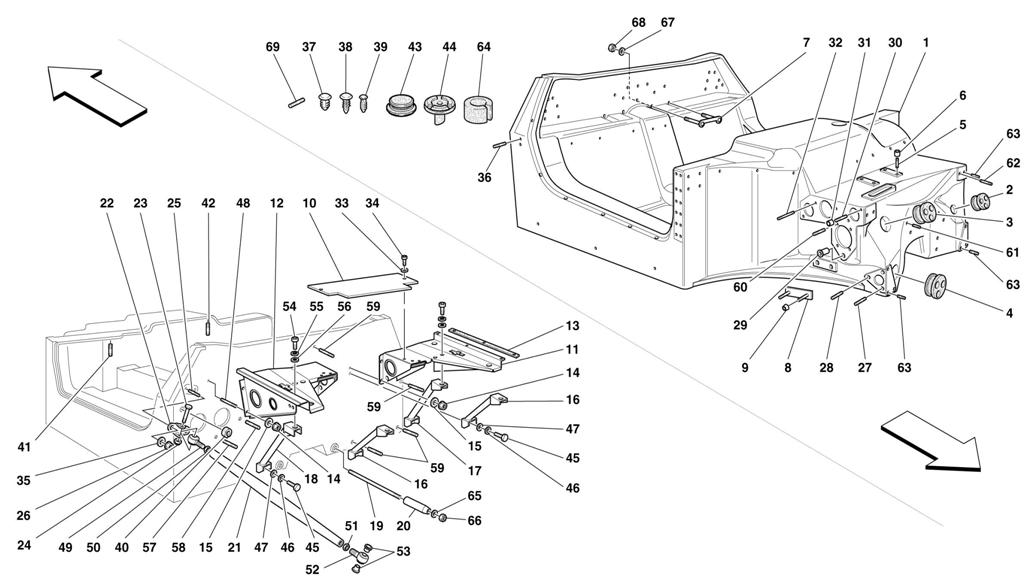

FRAME AND STRUCTURES

Go to Split View

FRAME AND STRUCTURES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155715 *Qty: 1 MONOCOQUE BODY FRAME Call
Location: 2 Prev | Next Part: 167307 *Qty: 1 CABLE GROMMET FOR PIPES $53.49
Location: 3 Prev | Next Part: 167310 *Qty: 1 CABLE GROMMET FOR PIPES $53.49
Location: 4 Prev | Next Part: 167309 *Qty: 1 CABLE GROMMET FOR PIPES $165.06
Location: 5 Prev | Next Part: 13543724 *Qty: 4 STUD $1.11
Location: 6 Prev | Next Part: 150961 *Qty: 2 CENTERING DOWEL $42.53
Location: 7 Prev | Next Part: 162686 *Qty: 2 ENGINE FIXING BRACKET $115.98
Location: 8 Prev | Next Part: 151229 *Qty: 2 BRACKET $98.94
Location: 9 Prev | Next Part: 150786 *Qty: 4 SPACER $52.22
Location: 10 Prev | Next Part: 64924700 *Qty: 1 SILENCER SHIELD Call
Location: 11 Prev | Next Part: 64135500 *Qty: 1 R.H. PLATE $1,027.02
Location: 12 Prev | Next Part: 64135600 *Qty: 1 L.H. PLATE $1,027.29
Location: 13 Prev | Next Part: 64529700 *Qty: 2 GASKET $12.75
Location: 14 Prev | Next Part: 133215 *Qty: 20 NUT $3.75
Location: 15 Prev | Next Part: 10519624 *Qty: 20 WASHER $0.90
Location: 16 Prev | Next Part: 64632200 *Qty: 2 INNER LOWER WINDBRACING $155.04
Location: 17 Prev | Next Part: 64632400 *Qty: 1 R.H. OUTER LOWER WINDBRACING $155.04
Location: 18 Prev | Next Part: 64632500 *Qty: 1 L.H. OUTER LOWER WINDBRACING $155.04
Location: 19 Prev | Next Part: 164949 *Qty: 2 STUD $37.92
Location: 20 Prev | Next Part: 152451 *Qty: 2 BUSHING $41.93
Location: 21 Prev | Next Part: 165048 *Qty: 2 TAPERED SPRAG $513.65
Location: 22 Prev | Next Part: 151879 *Qty: 2 FORK $113.58
Location: 23 Prev | Next Part: 151883 *Qty: 4 SCREW $6.39
Location: 24 Prev | Next Part: 148020 *Qty: 4 NUT $2.42
Location: 25 Prev | Next Part: 12429524 *Qty: 4 STUD $2.15
Location: 26 Prev | Next Part: 133215 *Qty: 4 NUT $3.75
Location: 27 Prev | Next Part: 156705 *Qty: 4 STUD Call
Location: 28 Prev | Next Part: 12429724 *Qty: 2 STUD $6.21
Location: 29 Prev | Next Part: 151642 *Qty: 2 BUSHING $33.41
Location: 30 Prev | Next Part: 13543734 *Qty: 6 STUD $1.76
Location: 31 Prev | Next Part: 150961 *Qty: 4 CENTERING DOWEL $42.53
Location: 32 Prev | Next Part: 13544334 *Qty: 4 STUD $3.19
Location: 33 Prev | Next Part: 12642877 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 15688875 *Qty: 2 SCREW $0.90
Location: 35 Prev | Next Part: 12638524 *Qty: 4 WASHER $0.90
Location: 36 Prev | Next Part: 12354524 *Qty: 4 STUD $21.12
Location: 37 Prev | Next Part: 14592587 *Qty: 2 BUTTON $0.90
Location: 38 Prev | Next Part: 143862 *Qty: 2 PLUG $0.90
Location: 39 Prev | Next Part: 61568600 *Qty: 4 BUTTON Call
Location: 40 Prev | Next Part: 63393900 *Qty: 3 SEALING $4.84
Location: 41 Prev | Next Part: 13543224 *Qty: 4 STUD Call
Location: 42 Prev | Next Part: 13541124 *Qty: 4 STUD $8.43
Location: 43 Prev | Next Part: 14507787 *Qty: 4 PLUG $0.90
Location: 44 Prev | Next Part: 60731300 *Qty: 1 PLUG $4.49
Location: 45 Prev | Next Part: 16043434 *Qty: 4 SCREW $0.90
Location: 46 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90
Location: 48 Prev | Next Part: 13543324 *Qty: 20 STUD $0.90
Location: 49 Prev | Next Part: 151799 *Qty: 2 BALL JOINT $176.32
Location: 50 Prev | Next Part: 149124 *Qty: 2 L.H. THREADED NUT $6.68
Location: 51 Prev | Next Part: 10717477 *Qty: 2 NUT $2.08
Location: 52 Prev | Next Part: 151798 *Qty: 2 BALL JOINT $135.48
Location: 53 Prev | Next Part: 151794 *Qty: 8 BUSHING $25.31
Location: 54 Prev | Next Part: 14359274 *Qty: 2 SCREW $71.78
Location: 55 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 56 Prev | Next Part: 12642024 *Qty: 2 WASHER $0.90
Location: 57 Prev | Next Part: 13541324 *Qty: 1 STUD $1.15
Location: 58 Prev | Next Part: 11501024 *Qty: 1 STUD $1.15
Location: 59 Prev | Next Part: 13541124 *Qty: 6 STUD $8.43
Location: 60 Prev | Next Part: 12429524 *Qty: 8 STUD $2.15
Location: 61 Prev | Next Part: 11001224 *Qty: 2 STUD $1.20
Location: 62 Prev | Next Part: 13543424 *Qty: 1 STUD $0.90
Location: 63 Prev | Next Part: 13543324 *Qty: 9 STUD $0.90
Location: 64 Prev | Next Part: 63566000 *Qty: 3 RING $1.09
Location: 65 Prev | Next Part: 152537 *Qty: 2 WASHER $16.44
Location: 66 Prev | Next Part: 101040 *Qty: 2 NUT $4.55
Location: 67 Prev | Next Part: 164963 *Qty: 4 WASHER $16.92
Location: 68 Prev | Next Part: 132876 *Qty: 4 NUT $56.19
Location: 69 Prev | Next Part: 121983 *Qty: 1 STUD $16.53

* Quantity shown indicates the number of pieces used in the diagram.
