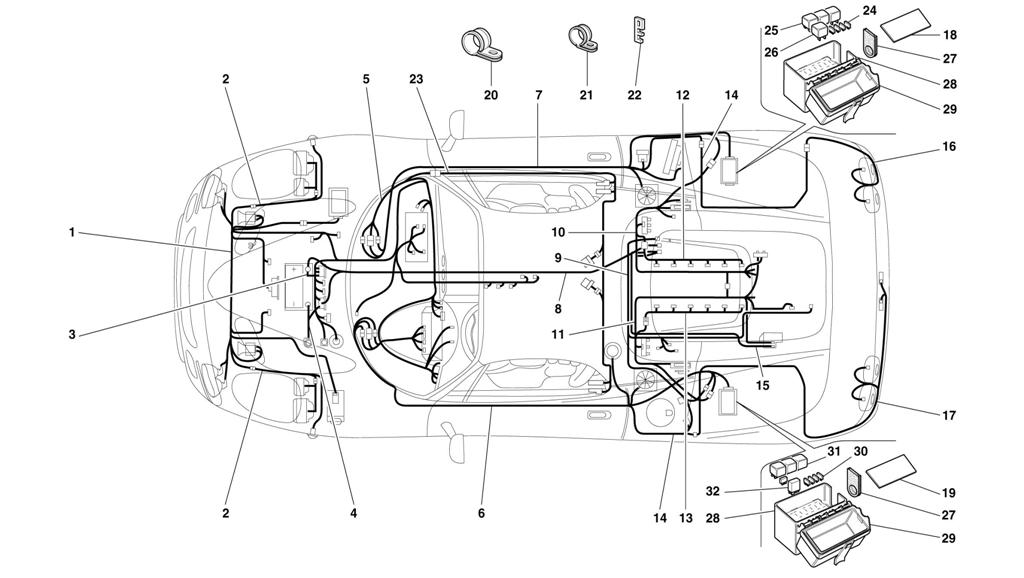

ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 161423 *Qty: 1 FRONT PART CONNECTING CABLES -Not for USA $1,265.85
Location: 1 Prev | Next Part: 168447 *Qty: 1 FRONT PART CONNECTING CABLES -Valid for USA $1,029.16
Location: 2 Prev | Next Part: 161433 *Qty: 2 HIGH BEAM/LOW BEAM AND DIRECTION LIGHT CONNECTING LIGHT $217.23
Location: 3 Prev | Next Part: 161438 *Qty: 1 COPPER CABLE $145.02
Location: 4 Prev | Next Part: 164434 *Qty: 1 CUT-OUT SWITCH CONNECTING COPPER PLAIT $203.23
Location: 5 Prev | Next Part: 161424 *Qty: 1 DASHBOARD CONNECTION CABLES -Not for USA Call
Location: 5 Prev | Next Part: 163638 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid for USA $2,608.65
Location: 6 Prev | Next Part: 161426 *Qty: 1 L.H. REAR CONNECTING CABLES $1,267.07
Location: 7 Prev | Next Part: 161425 *Qty: 1 R.H. REAR CONNECTING CABLES $1,163.46
Location: 8 Prev | Next Part: 161435 *Qty: 1 BATTERY-STARTING MOTOR- ALTERNATOR CONNECTING CABLE $284.04
Location: 9 Prev | Next Part: 161432 *Qty: 1 CONNECTION CABLES FOR MOTOR UTILITIES $227.22
Location: 10 Prev | Next Part: 161430 *Qty: 1 R.H. SIDE INJECTION CONNECTING CABLES (CYL. 1-6) -Not for USA $1,724.17
Location: 10 Prev | Next Part: 168479 *Qty: 1 R.H. SIDE INJECTION CONNECTING CABLES (CYL. 1-6) -Valid for USA $3,392.72
Location: 11 Prev | Next Part: 161431 *Qty: 1 L.H. SIDE INJECTION CONNECTING CABLES (CYL. 7-12) -Not for USA $1,068.12
Location: 11 Prev | Next Part: 168480 *Qty: 1 L.H. SIDE INJECTION CONNECTING CABLES (CYL. 7-12) -Valid for USA $3,392.72
Location: 12 Prev | Next Part: 164428 *Qty: 1 INJECTORS CONNECTING CABLES (CYL. 1-6) $260.61
Location: 13 Prev | Next Part: 164537 *Qty: 1 INJECTORS CONNECTING CABLES (CYL. 7-12) $260.61
Location: 14 Prev | Next Part: 161427 *Qty: 2 REAR CONNECTING CABLES WITH LIGHTS CABLES $996.96
Location: 15 Prev | Next Part: 166832 *Qty: 1 CABLE FROM STARTING MOTOR TO ALTERNATOR $144.83
Location: 16 Prev | Next Part: 163639 *Qty: 1 R.H. REAR LIGHTS CONNECTING CABLES -Valid for USA $161.98
Location: 16 Prev | Next Part: 161428 *Qty: 1 R.H. REAR LIGHTS CONNECTING CABLES -Not for USA $267.04
Location: 17 Prev | Next Part: 163640 *Qty: 1 L.H. REAR LIGHTS CONNECTING CABLES -Valid for USA, AUS and FAR EAST $197.55
Location: 17 Prev | Next Part: 161429 *Qty: 1 L.H. REAR LIGHTS CONNECTING CABLES -Not for USA, AUS and FAR EAST $267.04
Location: 18 Prev | Next Part: 167897 *Qty: 1 R.H. RELAYS AND FUSES NAMEPLATE $60.97
Location: 19 Prev | Next Part: 167896 *Qty: 1 L.H. RELAYS AND FUSES NAMEPLATE $9.80
Location: 20 Prev | Next Part: 10442190 *Qty: 4 BRACKET $0.97
Location: 21 Prev | Next Part: 10441290 *Qty: 2 BRACKET $0.90
Location: 22 Prev | Next Part: 162606 *Qty: 2 CLIP $1.09
Location: 23 Prev | Next Part: 168448 *Qty: 1 PASSIVE BELTS CONNECTING CABLES -Valid for USA $566.28
Location: 24 Prev | Next Part: 125241 *Qty: 2 10 A. FUSE $0.90
Location: 24 Prev | Next Part: 125242 *Qty: 2 15 A. FUSE $0.90
Location: 25 Prev | Next Part: 175318 *Qty: 1 R. H. INJECTOR CONTROL RELAY $35.85
Location: 25 Prev | Next Part: 157802 *Qty: 1 AIR PUMP CONTROL RELAY $35.00
Location: 26 Prev | Next Part: 123509 *Qty: 1 TIMER FOR ENGIN BONNET ELECTRO FAN $158.66
Location: 27 Prev | Next Part: 162652 *Qty: 2 RUBBER BOOT $6.71
Location: 28 Prev | Next Part: 162649 *Qty: 2 RELE AND FUSE CONTAINER Call
Location: 29 Prev | Next Part: 162651 *Qty: 2 COVER $82.16
Location: 30 Prev | Next Part: 125241 *Qty: 2 10 A. FUSE $0.90
Location: 30 Prev | Next Part: 125242 *Qty: 1 15 A. FUSE $0.90
Location: 30 Prev | Next Part: 126031 *Qty: 1 25 A. FUSE $0.90
Location: 30 Prev | Next Part: 131941 *Qty: 1 30 A. FUSE Call
Location: 31 Prev | Next Part: 157991 *Qty: 1 STARTER MOTOR CONTROL RELAY $35.83
Location: 31 Prev | Next Part: 175318 *Qty: 1 L.H. FUEL PUMP CONTROL RELAY $35.85
Location: 32 Prev | Next Part: 161590 *Qty: 1 OIL RADIATOR FAN CONTROL MICRORELAY $26.19

* Quantity shown indicates the number of pieces used in the diagram.
