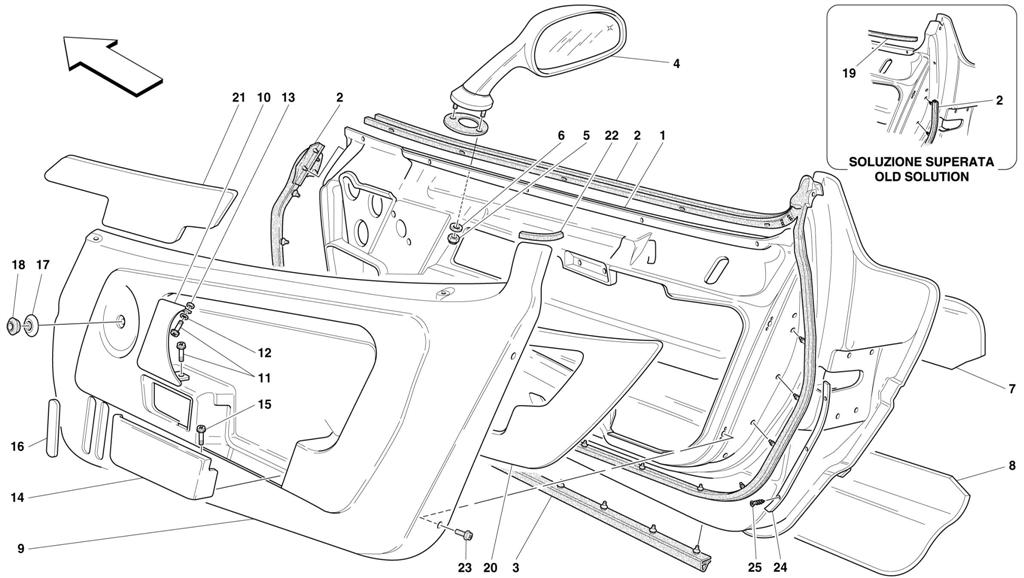

DOORS - TRIMS AND REAR WIEW MIRROR

Go to Split View

DOORS - TRIMS AND REAR WIEW MIRROR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64694610 *Qty: 1 R.H. DOOR $10,100.75
Location: 1 Prev | Next Part: 64694710 *Qty: 1 L.H. DOOR Call
Location: 2 Prev | Next Part: 64481300 *Qty: 1 GASKET FOR R.H. DOOR OPENING -Not as spare part now -Replaced by 65080600 Call
Location: 2 Prev | Next Part: 64481400 *Qty: 1 GASKET FOR L.H. DOOR OPENING -Not as spare part now -Replaced by 65080700 Call
Location: 2 Prev | Next Part: 65080600 *Qty: 1 GASKET FOR R.H. DOOR OPENING Call
Location: 2 Prev | Next Part: 65080700 *Qty: 1 GASKET FOR L.H. DOOR OPENING $787.87
Location: 3 Prev | Next Part: 64515300 *Qty: 2 UNDER DOOR GASKET $68.87
Location: 4 Prev | Next Part: 63530210 *Qty: 1 L.H. OUTER REAR VIEW MIRROR $1,517.44
Location: 4 Prev | Next Part: 65080910 *Qty: 1 R.H. OUTER REAR VIEW MIRROR -Valid for USA $1,517.46
Location: 4 Prev | Next Part: 64764210 *Qty: 1 R.H. OUTER REAR VIEW MIRROR -Not for USA Call
Location: 5 Prev | Next Part: 101139 *Qty: 4 NUT $0.90
Location: 6 Prev | Next Part: 13550301 *Qty: 4 WASHER $19.34
Location: 7 Prev | Next Part: 64764000 *Qty: 1 R.H. UPPER SILENCER $98.81
Location: 7 Prev | Next Part: 64764100 *Qty: 1 L.H. UPPER SILENCER $98.81
Location: 8 Prev | Next Part: 64924100 *Qty: 1 R.H. LOWER SILENCER $98.81
Location: 8 Prev | Next Part: 64924200 *Qty: 1 L.H. LOWER SILENCER $98.81
Location: 9 Prev | Next Part: 63537300 *Qty: 1 R.H. DOOR INNER PANEL $4,269.66
Location: 9 Prev | Next Part: 63537400 *Qty: 1 L.H. DOOR INNER PANEL $4,138.69
Location: 10 Prev | Next Part: 64868200 *Qty: 1 COVERED R.H. HANDLE $421.35
Location: 10 Prev | Next Part: 64868300 *Qty: 1 COVERED L.H. HANDLE $421.35
Location: 11 Prev | Next Part: 147365 *Qty: 6 SCREW $3.86
Location: 12 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 13 Prev | Next Part: 12677811 *Qty: 2 NUT Call
Location: 14 Prev | Next Part: 64868600 *Qty: 1 COVERED R.H. UTILITY POCKET Call
Location: 14 Prev | Next Part: 64868700 *Qty: 1 COVERED L.H. UTILITY POCKET Call
Location: 15 Prev | Next Part: 14441037 *Qty: 6 SCREW $0.90
Location: 16 Prev | Next Part: 161492 *Qty: 8 DOOR PROTECTION $8.05
Location: 17 Prev | Next Part: 62584500 *Qty: 2 UNDER-HANDLE RING Call
Location: 18 Prev | Next Part: 64976800 *Qty: 2 SPACER $33.00
Location: 19 Prev | Next Part: 64869200 *Qty: 2 GASKET $52.72
Location: 20 Prev | Next Part: 64924300 *Qty: 1 R.H. INNER PANNEL INSULATION $181.05
Location: 20 Prev | Next Part: 64924400 *Qty: 1 L.H. INNER PANNEL INSULATION Call
Location: 21 Prev | Next Part: 64924500 *Qty: 1 R.H. INNER CENTRAL PANNEL INSULATION $181.05
Location: 21 Prev | Next Part: 64924600 *Qty: 1 L.H. INNER CENTRAL PANNEL INSULATION Call
Location: 22 Prev | Next Part: 62955600 *Qty: 2 GASKET $20.91
Location: 23 Prev | Next Part: 169813 *Qty: 18 SCREW $1.24
Location: 24 Prev | Next Part: 65085600 *Qty: 1 R.H. CARPET SHIELD UNDER-GASKET $21.05
Location: 24 Prev | Next Part: 65085700 *Qty: 1 L.H. CARPET SHIELD UNDER-GASKET $21.05
Location: 25 Prev | Next Part: 15914977 *Qty: 6 SCREW $1.60

* Quantity shown indicates the number of pieces used in the diagram.
