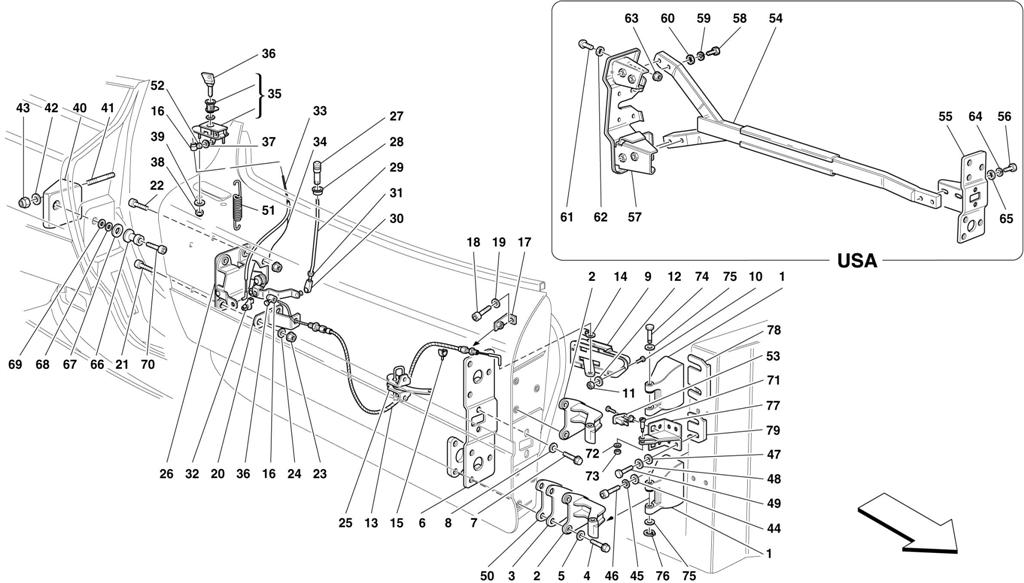

DOORS - HINGES AND OPENING CONTROL

Go to Split View

DOORS - HINGES AND OPENING CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63532900 *Qty: 4 FIXED HINGE $198.24
Location: 2 Prev | Next Part: 63533100 *Qty: 4 MOBILE HINGE $156.69
Location: 3 Prev | Next Part: 64151100 *Qty: 8 THICKNESS $90.52
Location: 4 Prev | Next Part: 16286224 *Qty: 12 SCREW -Not as spare part now -Replaced by 16286324 $3.34
Location: 4 Prev | Next Part: 16286324 *Qty: 12 SCREW $0.90
Location: 5 Prev | Next Part: 12644424 *Qty: 12 WASHER $0.90
Location: 6 Prev | Next Part: 64198100 *Qty: 1 REINFORCEMENT R.H. PLATE -Not for USA $376.34
Location: 6 Prev | Next Part: 64198200 *Qty: 1 REINFORCEMENT L.H. PLATE -Not for USA $376.34
Location: 7 Prev | Next Part: 16286224 *Qty: 4 SCREW $3.34
Location: 8 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 63530900 *Qty: 1 L.H. INNER HANDLE FOR DOOR OPENING Call
Location: 9 Prev | Next Part: 63530800 *Qty: 1 R.H. INNER HANDLE FOR DOOR OPENING Call
Location: 10 Prev | Next Part: 13272270 *Qty: 8 SCREW $0.90
Location: 11 Prev | Next Part: 62790300 *Qty: 8 NUT $0.90
Location: 12 Prev | Next Part: 12601074 *Qty: 8 WASHER $0.90
Location: 13 Prev | Next Part: 64153000 *Qty: 2 HANDLE BOWDEN CABLE $25.38
Location: 14 Prev | Next Part: 63291200 *Qty: 2 CLIP $1.04
Location: 15 Prev | Next Part: 14573480 *Qty: 2 CLIP $0.90
Location: 16 Prev | Next Part: 62780800 *Qty: 4 CONNECTION $1.06
Location: 17 Prev | Next Part: 64892000 *Qty: 2 BRACKET $35.95
Location: 18 Prev | Next Part: 169611 *Qty: 2 SCREW $1.63
Location: 18 Prev | Next Part: 64047400 *Qty: 2 SCREW -Not as spare part now -Replaced by 169611 Call
Location: 19 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 20 Prev | Next Part: 64619000 *Qty: 1 L.H. BRACKET $60.68
Location: 20 Prev | Next Part: 64638400 *Qty: 1 R.H. BRACKET $60.68
Location: 21 Prev | Next Part: 64684700 *Qty: 6 SCREW $1.94
Location: 22 Prev | Next Part: 69847800 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 102741 *Qty: 6 NUT $0.51
Location: 24 Prev | Next Part: 14496424 *Qty: 6 WASHER Superseded
Location: 25 Prev | Next Part: 64549700 *Qty: 2 TIE ROD ASSEMBLY Call
Location: 26 Prev | Next Part: 64178300 *Qty: 1 R.H. DOOR LOCK $1,024.34
Location: 26 Prev | Next Part: 64178400 *Qty: 1 L.H. DOOR LOCK $1,024.34
Location: 27 Prev | Next Part: 62800900 *Qty: 2 KNOB FOR SAFETY ROD Call
Location: 28 Prev | Next Part: 61617500 *Qty: 2 BUSHING $3.29
Location: 29 Prev | Next Part: 64153400 *Qty: 2 TIE ROD $18.22
Location: 30 Prev | Next Part: 62794000 *Qty: 2 FLEXIBLE JOINT $1.50
Location: 31 Prev | Next Part: 10794011 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 40063208 *Qty: 2 CLIP Call
Location: 33 Prev | Next Part: 64725200 *Qty: 2 DOOR OPENING CABLE $8.15
Location: 34 Prev | Next Part: 64727100 *Qty: 1 L.H. BRACKET $128.73
Location: 34 Prev | Next Part: 64725700 *Qty: 1 R.H. BRACKET $128.73
Location: 35 Prev | Next Part: 65058310 *Qty: 1 COMPLETE HANDLE SET $671.96
Location: 36 Prev | Next Part: 95401165 *Qty: 1 BLANK KEY $60.44
Location: 37 Prev | Next Part: 64929700 *Qty: 2 BUSHING $1.61
Location: 38 Prev | Next Part: 113647 *Qty: 4 NUT $0.90
Location: 39 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 40 Prev | Next Part: 64609700 *Qty: 1 R.H. DOOR STRIKER SUPPORT $253.85
Location: 40 Prev | Next Part: 64609800 *Qty: 1 L.H. DOOR STRIKER SUPPORT $253.85
Location: 41 Prev | Next Part: 12354524 *Qty: 4 STUD $21.12
Location: 42 Prev | Next Part: 13550301 *Qty: 4 WASHER $19.34
Location: 43 Prev | Next Part: 16104121 *Qty: 4 NUT Superseded
Location: 44 Prev | Next Part: 12638578 *Qty: 16 WASHER -Not as spare part now -Replaced by 10519624 $0.90
Location: 44 Prev | Next Part: 10519624 *Qty: 16 WASHER $0.90
Location: 45 Prev | Next Part: 127496 *Qty: 16 WASHER $0.90
Location: 46 Prev | Next Part: 14359274 *Qty: 16 SCREW $71.78
Location: 47 Prev | Next Part: 12638177 *Qty: 8 WASHER Superseded
Location: 48 Prev | Next Part: 166467 *Qty: 8 WASHER $1.22
Location: 49 Prev | Next Part: 10977687 *Qty: 8 SCREW $0.90
Location: 50 Prev | Next Part: 64971200 *Qty: 2 THICKNESS Call
Location: 51 Prev | Next Part: 62537000 *Qty: 2 SPRING FOR HANDLE $8.79
Location: 52 Prev | Next Part: 10444521 *Qty: 4 SCREW $0.90
Location: 53 Prev | Next Part: 153069 *Qty: 2 MICRO-SWITCH -Q.ty 4 for USA $7.38
Location: 54 Prev | Next Part: 64198300 *Qty: 1 R.H. DOOR REINFORCEMENT -Valid for USA Call
Location: 54 Prev | Next Part: 64198400 *Qty: 1 L.H. DOOR REINFORCEMENT -Valid for USA Call
Location: 55 Prev | Next Part: 64640400 *Qty: 1 R.H. FRONT SUPPORT -Valid for USA $987.61
Location: 55 Prev | Next Part: 64640500 *Qty: 1 L.H. FRONT SUPPORT -Valid for USA $454.43
Location: 56 Prev | Next Part: 16043424 *Qty: 4 SCREW $0.90
Location: 57 Prev | Next Part: 64640600 *Qty: 1 R.H. REAR SUPPORT -Valid for USA $896.20
Location: 57 Prev | Next Part: 64640700 *Qty: 1 L.H. REAR SUPPORT -Valid for USA $896.20
Location: 58 Prev | Next Part: 16043934 *Qty: 8 SCREW $0.90
Location: 59 Prev | Next Part: 10571779 *Qty: 8 WASHER $0.90
Location: 60 Prev | Next Part: 12646724 *Qty: 8 WASHER $0.90
Location: 61 Prev | Next Part: 64674300 *Qty: 8 SCREW $3.43
Location: 62 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 63 Prev | Next Part: 12578211 *Qty: 8 NUT $0.90
Location: 64 Prev | Next Part: 10571779 *Qty: 4 WASHER $0.90
Location: 65 Prev | Next Part: 12646724 *Qty: 4 WASHER $0.90
Location: 66 Prev | Next Part: 60670100 *Qty: 2 DOOR CLOSING STRIKER -Not for USA Call
Location: 66 Prev | Next Part: 65013700 *Qty: 2 DOOR CLOSING STRIKER -Valid for USA $72.93
Location: 67 Prev | Next Part: 60775900 *Qty: 2 GASKET $1.20
Location: 68 Prev | Next Part: 12642001 *Qty: 2 WASHER $0.90
Location: 69 Prev | Next Part: 65080800 *Qty: 2 WASHER $3.07
Location: 70 Prev | Next Part: 64991500 *Qty: 2 SCREW -Valid for USA $55.77
Location: 70 Prev | Next Part: 60673700 *Qty: 2 SCREW -Not for USA Call
Location: 71 Prev | Next Part: 64629100 *Qty: 2 PIN $13.77
Location: 72 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 73 Prev | Next Part: 102741 *Qty: 2 NUT $0.51
Location: 74 Prev | Next Part: 64199900 *Qty: 4 PIN $18.38
Location: 75 Prev | Next Part: 64199800 *Qty: 8 WASHER $3.77
Location: 76 Prev | Next Part: 16160976 *Qty: 4 SEEGER RING $0.90
Location: 77 Prev | Next Part: 63670000 *Qty: 2 BRACKET $29.49
Location: 78 Prev | Next Part: 64151200 *Qty: 8 THICKNESS $11.68
Location: 79 Prev | Next Part: 64151500 *Qty: 8 THICKNESS -Not as spare part now $29.39

* Quantity shown indicates the number of pieces used in the diagram.
