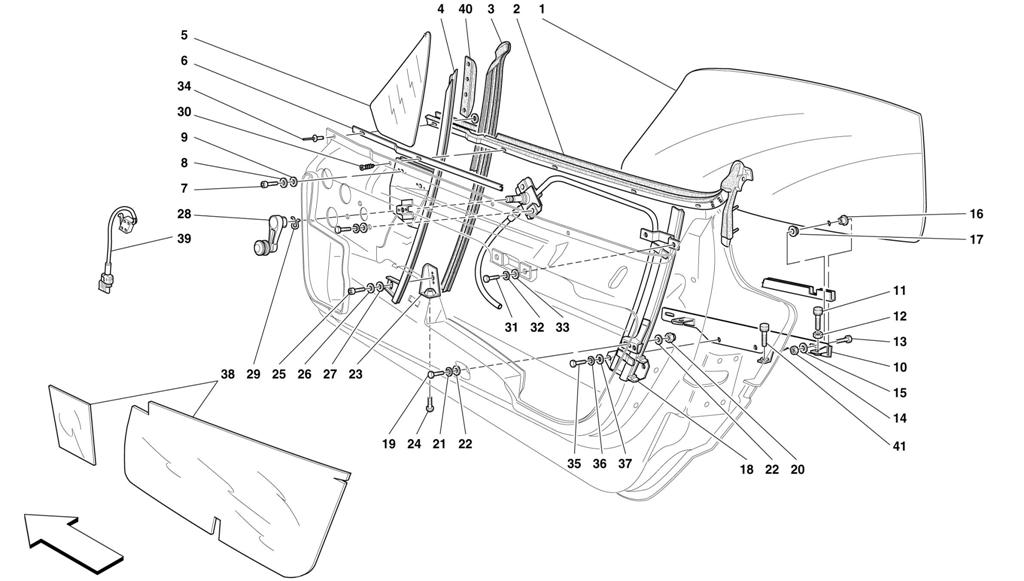

DOORS - GLASS LIFTING DEVICE

Go to Split View

DOORS - GLASS LIFTING DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64697500 *Qty: 1 R.H. DOOR GLASS $274.41
Location: 1 Prev | Next Part: 64697600 *Qty: 1 L.H. DOOR GLASS $274.41
Location: 2 Prev | Next Part: 64721100 *Qty: 1 R.H. GASKET -Not as spare part now -Replaced by 65080600 Call
Location: 2 Prev | Next Part: 65080600 *Qty: 1 R.H. GASKET Call
Location: 2 Prev | Next Part: 65080700 *Qty: 1 L.H. GASKET $787.87
Location: 3 Prev | Next Part: 64480900 *Qty: 1 L.H. GASKET $275.86
Location: 3 Prev | Next Part: 64155400 *Qty: 1 R.H. GASKET $275.86
Location: 4 Prev | Next Part: 64198500 *Qty: 1 R.H. BUTTERFLY WINDOW FRAME $819.49
Location: 4 Prev | Next Part: 64198600 *Qty: 1 L.H. BUTTERFLY WINDOW FRAME $819.49
Location: 5 Prev | Next Part: 64147300 *Qty: 1 R.H. BUTTERFLY WINDOW $109.81
Location: 5 Prev | Next Part: 64147400 *Qty: 1 L.H. BUTTERFLY WINDOW $109.81
Location: 6 Prev | Next Part: 64144800 *Qty: 1 R.H. PLATE $414.15
Location: 6 Prev | Next Part: 64144900 *Qty: 1 L.H. PLATE $414.15
Location: 7 Prev | Next Part: 13026187 *Qty: 6 SCREW $2.41
Location: 8 Prev | Next Part: 166467 *Qty: 6 WASHER $1.18
Location: 9 Prev | Next Part: 12638177 *Qty: 6 WASHER Superseded
Location: 10 Prev | Next Part: 64148300 *Qty: 1 R.H. LOWER BRACKET $149.43
Location: 10 Prev | Next Part: 64148400 *Qty: 1 L.H. LOWER BRACKET $149.43
Location: 11 Prev | Next Part: 62008400 *Qty: 4 STOP BUFFER $7.04
Location: 12 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 15 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 62106600 *Qty: 4 OUTER BUSHING $0.90
Location: 17 Prev | Next Part: 62106700 *Qty: 2 INNER BUSHING $0.90
Location: 18 Prev | Next Part: 64191200 *Qty: 1 R.H. GLASS LIFT ASSEMBLY $345.29
Location: 18 Prev | Next Part: 64191300 *Qty: 1 L.H. GLASS LIFT ASSEMBLY $345.29
Location: 19 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 10 WASHER $0.90
Location: 22 Prev | Next Part: 12643724 *Qty: 12 WASHER $0.90
Location: 23 Prev | Next Part: 64145500 *Qty: 1 R.H. LOWER BRACKET $74.19
Location: 23 Prev | Next Part: 64145600 *Qty: 1 L.H. LOWER BRACKET $74.19
Location: 24 Prev | Next Part: 147365 *Qty: 2 SCREW $3.74
Location: 25 Prev | Next Part: 14304224 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 166467 *Qty: 2 WASHER $1.18
Location: 27 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 28 Prev | Next Part: 63537700 *Qty: 2 WINDOW REGULATOR HANDLE $485.96
Location: 29 Prev | Next Part: 62584600 *Qty: 2 CLIP $0.90
Location: 30 Prev | Next Part: 15901470 *Qty: 8 SCREW $0.90
Location: 31 Prev | Next Part: 10902124 *Qty: 8 SCREW $0.90
Location: 32 Prev | Next Part: 127494 *Qty: 8 WASHER $0.90
Location: 33 Prev | Next Part: 12643724 *Qty: 8 WASHER $0.90
Location: 34 Prev | Next Part: 64488900 *Qty: 2 RIVET $0.90
Location: 35 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 36 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 38 Prev | Next Part: 63000900 *Qty: 2 WATER PROTECTION CLOTH Call
Location: 39 Prev | Next Part: 154762 *Qty: 2 MICRO-SWITCH $81.71
Location: 40 Prev | Next Part: 64869900 *Qty: 1 R.H. AIR DEFLECTOR $224.65
Location: 40 Prev | Next Part: 64870000 *Qty: 1 L.H. AIR DEFLECTOR $224.65
Location: 41 Prev | Next Part: 50087709 *Qty: 2 STOP BUFFER $7.91

* Quantity shown indicates the number of pieces used in the diagram.
