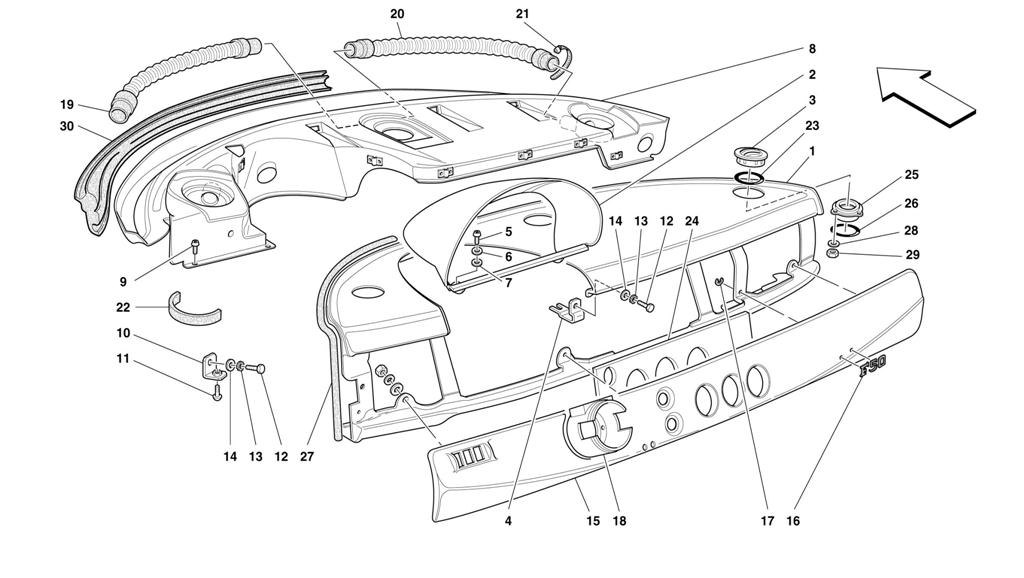

DASHBOARD

Go to Split View

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64157000 *Qty: 1 UPPER LINING $1,903.78
Location: 1 Prev | Next Part: 64157100 *Qty: 1 LOWER UPHOLSTERY $1,027.96
Location: 1 Prev | Next Part: 64854800 *Qty: 1 COVERED COMPLETE DASHBOARD FRAMEWORK $5,139.78
Location: 2 Prev | Next Part: 63531100 *Qty: 1 DASH BOARD $1,621.19
Location: 3 Prev | Next Part: 60656500 *Qty: 3 AIR DIFFUSOR OPENING Call
Location: 4 Prev | Next Part: 64769400 *Qty: 1 DASHBOARD FIXING CENTRAL BRACKET $101.29
Location: 5 Prev | Next Part: 13274972 *Qty: 2 SCREW $0.90
Location: 6 Prev | Next Part: 166467 *Qty: 2 WASHER $1.18
Location: 7 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 8 Prev | Next Part: 64140700 *Qty: 1 TAIL WINDSHIELD FRONT TRIM $6,152.16
Location: 9 Prev | Next Part: 169611 *Qty: 16 SCREW $1.58
Location: 9 Prev | Next Part: 64047400 *Qty: 16 SCREW -Not as spare part now -Replaced by 169611 Call
Location: 10 Prev | Next Part: 64176200 *Qty: 2 SIDE BRACKET $39.51
Location: 11 Prev | Next Part: 14778818 *Qty: 2 SCREW Call
Location: 12 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 13 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: 12643724 *Qty: 3 WASHER $0.90
Location: 15 Prev | Next Part: 63536500 *Qty: 1 CETRAL INSERT IN THE DASH BOARD $6,254.90
Location: 16 Prev | Next Part: 167022 *Qty: 1 F 50 MARK $251.21
Location: 17 Prev | Next Part: 14227474 *Qty: 2 MARK FIXING PLATE $0.90
Location: 18 Prev | Next Part: 63940800 *Qty: 1 COLUMN COVER $1,995.01
Location: 19 Prev | Next Part: 64310700 *Qty: 1 AIR DELIVERY TUBE TO L.H. AIR INLET Call
Location: 20 Prev | Next Part: 64142400 *Qty: 1 AIR DELIVERY TUBE TO R.H. AIR INLET $317.96
Location: 21 Prev | Next Part: 145855 *Qty: 4 CLAMP $0.90
Location: 22 Prev | Next Part: 64141700 *Qty: 3 GASKET $1.53
Location: 23 Prev | Next Part: 157869 *Qty: 3 GASKET $1.46
Location: 24 Prev | Next Part: 65056700 *Qty: 1 INSULATION $29.57
Location: 25 Prev | Next Part: 64191700 *Qty: 3 BUSHING HOLDER $14.52
Location: 26 Prev | Next Part: 65081200 *Qty: 3 GASKET $6.02
Location: 27 Prev | Next Part: 64968700 *Qty: 1 LINING Call
Location: 28 Prev | Next Part: 10519304 *Qty: 9 WASHER $0.90
Location: 29 Prev | Next Part: 113647 *Qty: 9 NUT $0.90
Location: 30 Prev | Next Part: 64143500 *Qty: 1 GASKET $265.49

* Quantity shown indicates the number of pieces used in the diagram.
