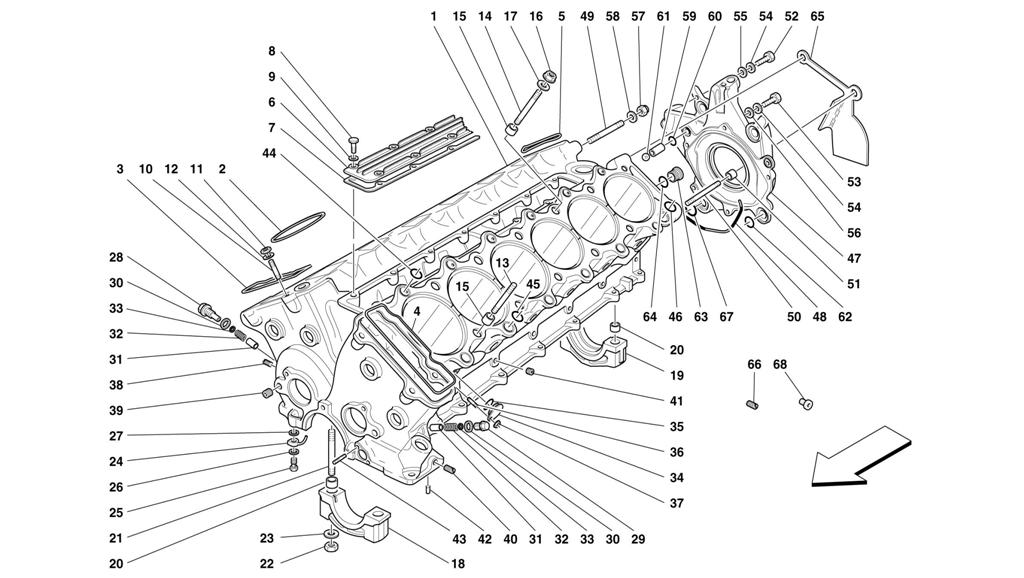

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 169538 *Qty: 1 COMPLETE CRANKCASE Call
Location: 1 Prev | Next Part: 164552 *Qty: 1 ENGINE CRANKCASE -Not as spare part -With complete crankcase Call
Location: 2 Prev | Next Part: 159144 *Qty: 12 COOPERS SEAL RING $495.13
Location: 3 Prev | Next Part: 154035 *Qty: 1 R.H. GASKET $12.70
Location: 4 Prev | Next Part: 154030 *Qty: 1 L.H. GASKET $13.05
Location: 5 Prev | Next Part: 150110 *Qty: 2 GASKET $7.38
Location: 6 Prev | Next Part: 158073 *Qty: 1 WATER DUCT COVER $623.94
Location: 7 Prev | Next Part: 158079 *Qty: 1 GASKET $22.68
Location: 8 Prev | Next Part: 10902424 *Qty: 14 SCREW $0.90
Location: 9 Prev | Next Part: 11197771 *Qty: 14 WASHER Superseded
Location: 10 Prev | Next Part: 13516824 *Qty: 4 STUD $0.90
Location: 11 Prev | Next Part: 133215 *Qty: 4 NUT $3.75
Location: 12 Prev | Next Part: 12604474 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 154072 *Qty: 14 STUD -Exhaust side $20.51
Location: 14 Prev | Next Part: 154073 *Qty: 14 STUD -Suction side $12.76
Location: 15 Prev | Next Part: 149995 *Qty: 4 DOWEL $116.21
Location: 16 Prev | Next Part: 148093 *Qty: 28 NUT $30.14
Location: 17 Prev | Next Part: 151117 *Qty: 28 WASHER $1.41
Location: 18 Prev | Next Part: 159126 *Qty: 6 FRONT AND INTERMEDIATE CAP -Not as spare part -With complete crankcase Call
Location: 19 Prev | Next Part: 159127 *Qty: 1 REAR CAP -Not as spare part -With complete crankcase Call
Location: 20 Prev | Next Part: 159196 *Qty: 14 DOWEL $20.58
Location: 21 Prev | Next Part: 159198 *Qty: 14 STUD Call
Location: 22 Prev | Next Part: 6103841 *Qty: 14 NUT $5.31
Location: 23 Prev | Next Part: 159197 *Qty: 14 WASHER $5.78
Location: 24 Prev | Next Part: 149454 *Qty: 12 NOZZLE $97.57
Location: 25 Prev | Next Part: 149453 *Qty: 12 SCREW FOR NOZZLE $15.76
Location: 26 Prev | Next Part: 11197771 *Qty: 12 WASHER Superseded
Location: 27 Prev | Next Part: 10297760 *Qty: 12 GASKET $0.90
Location: 28 Prev | Next Part: 154176 *Qty: 1 R.H. PLUG $77.26
Location: 29 Prev | Next Part: 152569 *Qty: 1 L.H. PLUG $63.87
Location: 30 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 31 Prev | Next Part: 149520 *Qty: 2 SHUTTER PISTON $22.88
Location: 32 Prev | Next Part: 149519 *Qty: 2 SPRING $6.53
Location: 33 Prev | Next Part: 152570 *Qty: 2 SPACER $7.20
Location: 34 Prev | Next Part: 149105 *Qty: 12 PLUG $24.61
Location: 35 Prev | Next Part: 134233 *Qty: 12 O.R. GASKET $0.90
Location: 36 Prev | Next Part: 149106 *Qty: 12 STUD $0.90
Location: 37 Prev | Next Part: 132877 *Qty: 12 NUT $3.78
Location: 38 Prev | Next Part: 161439 *Qty: 2 THREADED PLUG $7.03
Location: 39 Prev | Next Part: 14324811 *Qty: 2 THREADED PLUG $6.94
Location: 40 Prev | Next Part: 65928500 *Qty: 1 THREADED PLUG $21.12
Location: 41 Prev | Next Part: 14326050 *Qty: 7 THREADED PLUG $1.72
Location: 42 Prev | Next Part: 10334520 *Qty: 2 PIN $3.17
Location: 43 Prev | Next Part: 152270 *Qty: 2 STUD Call
Location: 44 Prev | Next Part: 123475 *Qty: 12 O.R. GASKET $4.63
Location: 45 Prev | Next Part: 134232 *Qty: 12 O.R. GASKET $1.65
Location: 46 Prev | Next Part: 134233 *Qty: 2 O.R. GASKET $0.90
Location: 47 Prev | Next Part: 159192 *Qty: 1 REAR COVER $1,634.06
Location: 48 Prev | Next Part: 171948 *Qty: 1 GASKET $14.00
Location: 49 Prev | Next Part: 13547034 *Qty: 2 STUD $2.71
Location: 50 Prev | Next Part: 13450234 *Qty: 1 STUD Call
Location: 51 Prev | Next Part: 125537 *Qty: 2 DOWEL $5.86
Location: 52 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 53 Prev | Next Part: 10902624 *Qty: 7 SCREW $0.90
Location: 54 Prev | Next Part: 11197771 *Qty: 8 WASHER Superseded
Location: 55 Prev | Next Part: 103044 *Qty: 1 WASHER $9.31
Location: 56 Prev | Next Part: 10519424 *Qty: 7 WASHER Call
Location: 57 Prev | Next Part: 133216 *Qty: 4 NUT $9.88
Location: 58 Prev | Next Part: 12642424 *Qty: 4 WASHER $0.90
Location: 59 Prev | Next Part: 149112 *Qty: 2 DOWEL $7.78
Location: 60 Prev | Next Part: 123475 *Qty: 2 O.R. GASKET $4.63
Location: 61 Prev | Next Part: 150557 *Qty: 2 BALL $0.90
Location: 62 Prev | Next Part: 132248 *Qty: 3 O.R. GASKET $0.90
Location: 63 Prev | Next Part: 149113 *Qty: 2 PLUG -Not as spare part now $21.28
Location: 64 Prev | Next Part: 134233 *Qty: 2 O.R. GASKET -Not as spare part now $0.90
Location: 65 Prev | Next Part: 164280 *Qty: 1 R.H. PLATE $32.38
Location: 65 Prev | Next Part: 164281 *Qty: 1 L.H. PLATE $32.38
Location: 66 Prev | Next Part: 10269150 *Qty: 1 THREADED PLUG $0.90
Location: 67 Prev | Next Part: 148225 *Qty: 1 O.R. GASKET $0.90
Location: 68 Prev | Next Part: 165962 *Qty: 2 PLUG $21.69

* Quantity shown indicates the number of pieces used in the diagram.
