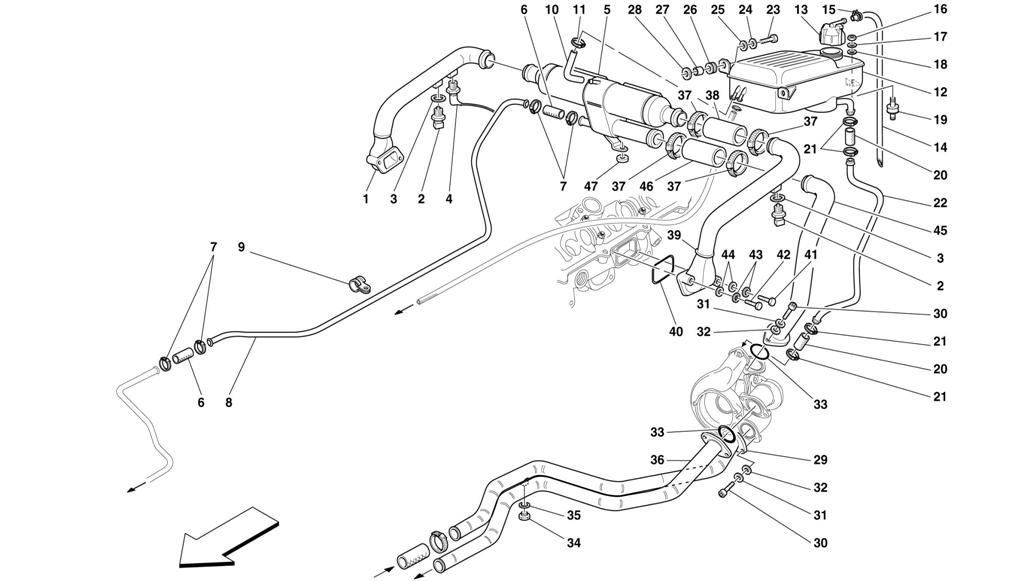

COOLING - NOURICE, HEAT EXCHANGER AND PIPES

Go to Split View

COOLING - NOURICE, HEAT EXCHANGER AND PIPES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 160978 *Qty: 1 R.H. WATER OUTLET PIPE $759.79
Location: 2 Prev | Next Part: 125769 *Qty: 2 WATER TEMPERATURE SENSOR $31.55
Location: 3 Prev | Next Part: 10296160 *Qty: 2 GASKET $0.90
Location: 4 Prev | Next Part: 104628 *Qty: 1 THERMISTOR $76.14
Location: 5 Prev | Next Part: 165957 *Qty: 1 HEAT EXCHANGER $4,429.43
Location: 6 Prev | Next Part: 64774300 *Qty: 2 SHORT SLEEVE $32.40
Location: 7 Prev | Next Part: 13000390 *Qty: 4 SCREW COLLAR $0.97
Location: 8 Prev | Next Part: 153778 *Qty: 1 PIPE FROM HEAT EXCHANGER $300.04
Location: 9 Prev | Next Part: 10441690 *Qty: 2 BRACKET WITH SHEATH -Not as spare part now for F50 now -Replaced by 10450490 $0.90
Location: 9 Prev | Next Part: 10450490 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 10 Prev | Next Part: 160898 *Qty: 1 PIPE FROM HEAT EXCHANGER TO TANK $242.81
Location: 11 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 12 Prev | Next Part: 166699 *Qty: 1 TANK FOR WATER RADIATOR $536.32
Location: 13 Prev | Next Part: 145030 *Qty: 1 TANK PLUG $56.85
Location: 14 Prev | Next Part: 156082 *Qty: 1 RUBBER PIPE $50.66
Location: 15 Prev | Next Part: 13423171 *Qty: 1 ELASTIC COLLAR $0.90
Location: 16 Prev | Next Part: 15896414 *Qty: 1 NUT $0.90
Location: 17 Prev | Next Part: 12605274 *Qty: 1 WASHER $0.90
Location: 18 Prev | Next Part: 14496377 *Qty: 1 WASHER $1.13
Location: 19 Prev | Next Part: 148835 *Qty: 1 PAD $14.95
Location: 20 Prev | Next Part: 167347 *Qty: 2 RUBBER PIPE $12.72
Location: 21 Prev | Next Part: 13000490 *Qty: 4 SCREW COLLAR Call
Location: 22 Prev | Next Part: 155434 *Qty: 1 PIPE FROM TANK TO WATER PUMP $111.71
Location: 23 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: 12605371 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $1.57
Location: 27 Prev | Next Part: 103550 *Qty: 2 SPACER $2.47
Location: 28 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 154841 *Qty: 1 HOSE FROM RADIATOR TO WATER PUMP $435.16
Location: 30 Prev | Next Part: 14305224 *Qty: 8 SCREW $0.90
Location: 31 Prev | Next Part: 12605371 *Qty: 8 WASHER $0.90
Location: 32 Prev | Next Part: 12639724 *Qty: 8 WASHER $0.90
Location: 33 Prev | Next Part: 152054 *Qty: 4 GASKET $1.53
Location: 34 Prev | Next Part: 139603 *Qty: 1 PLUG $8.18
Location: 35 Prev | Next Part: 100317 *Qty: 1 GASKET $1.46
Location: 36 Prev | Next Part: 154846 *Qty: 1 TUBE TO RIADIATOR $255.63
Location: 37 Prev | Next Part: 13000690 *Qty: 6 SCREW COLLAR Call
Location: 38 Prev | Next Part: 164498 *Qty: 2 RUBBER PIPE -Not as spare part now -Replaced by 168231 $34.47
Location: 39 Prev | Next Part: 160981 *Qty: 1 L.H. WATER OUTLET PIPE $709.15
Location: 40 Prev | Next Part: 154140 *Qty: 2 GASKET $5.39
Location: 41 Prev | Next Part: 10902524 *Qty: 2 SCREW $0.90
Location: 42 Prev | Next Part: 10903224 *Qty: 2 SCREW Superseded
Location: 43 Prev | Next Part: 10615474 *Qty: 4 WASHER $0.90
Location: 44 Prev | Next Part: 12639724 *Qty: 4 WASHER $0.90
Location: 45 Prev | Next Part: 162831 *Qty: 1 PIPE FROM HEAT EXCHANGER TO WATER PUMP Call
Location: 46 Prev | Next Part: 138981 *Qty: 1 RUBBER PIPE -Not as spare part now -Replace by 168232 $42.79
Location: 47 Prev | Next Part: 169216 *Qty: 1 BUSHING $7.51

* Quantity shown indicates the number of pieces used in the diagram.
