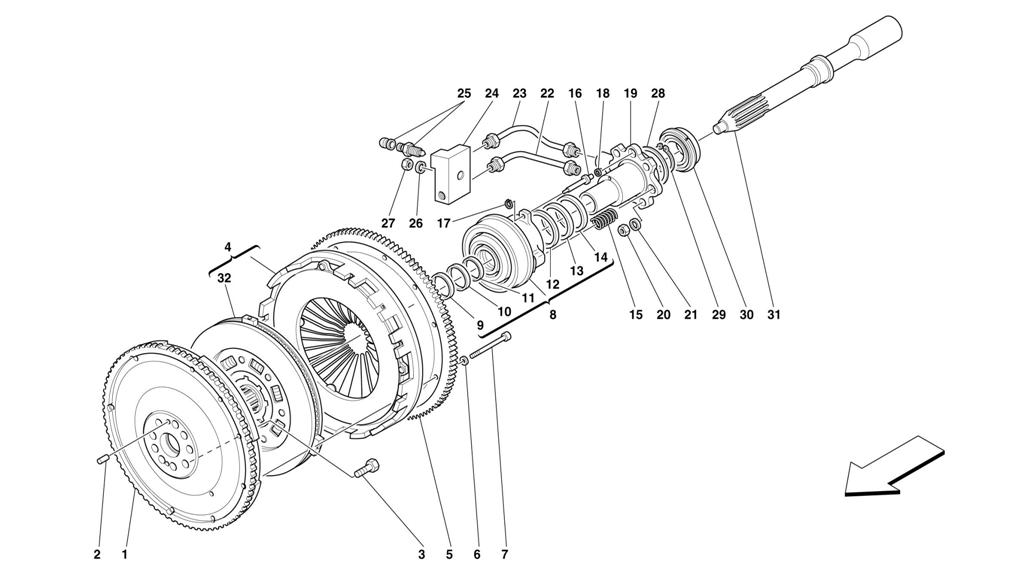

CLUTCH CONTROLS

Go to Split View

CLUTCH CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154939 *Qty: 1 ENGINE FLYWHEEL WITH TOOTHED WHEEL Call
Location: 2 Prev | Next Part: 10337530 *Qty: 2 PIN $1.10
Location: 3 Prev | Next Part: 103875 *Qty: 9 SCREW Superseded
Location: 4 Prev | Next Part: 163854 *Qty: 1 COMPLETE CLUTCH $7,319.30
Location: 5 Prev | Next Part: 155318 *Qty: 1 RING GEAR $472.45
Location: 6 Prev | Next Part: 10569274 *Qty: 9 WASHER Superseded
Location: 7 Prev | Next Part: 14303974 *Qty: 9 SCREW $0.90
Location: 8 Prev | Next Part: 166433 *Qty: 1 COMPLETE THRUST BEARING Call
Location: 9 Prev | Next Part: 154550 *Qty: 1 SCRAPER RING $25.24
Location: 10 Prev | Next Part: 154504 *Qty: 1 RING $7.32
Location: 11 Prev | Next Part: 154505 *Qty: 1 SEAL RING $13.89
Location: 12 Prev | Next Part: 154508 *Qty: 1 SEAL RING $41.51
Location: 13 Prev | Next Part: 154507 *Qty: 1 RING $4.03
Location: 14 Prev | Next Part: 154551 *Qty: 1 SCRAPER RING $28.48
Location: 15 Prev | Next Part: 121717 *Qty: 2 PRELOAD SPRING $16.18
Location: 16 Prev | Next Part: 155322 *Qty: 1 PIN $61.25
Location: 17 Prev | Next Part: 11065474 *Qty: 1 SEEGER RING $0.90
Location: 18 Prev | Next Part: 10569274 *Qty: 1 WASHER Superseded
Location: 19 Prev | Next Part: 155867 *Qty: 1 FLANGE FOR BEARING $2,734.63
Location: 20 Prev | Next Part: 16100821 *Qty: 4 NUT $3.46
Location: 21 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 155935 *Qty: 1 CLUTCH CONTROL PIPE $66.14
Location: 23 Prev | Next Part: 155929 *Qty: 1 DRAIN PIPE $64.13
Location: 24 Prev | Next Part: 235706 *Qty: 1 BLOCK $81.00
Location: 25 Prev | Next Part: 121699 *Qty: 1 BLEEDER SCREW $58.32
Location: 26 Prev | Next Part: 13579224 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 28 Prev | Next Part: 155966 *Qty: 5 SPACER $60.57
Location: 29 Prev | Next Part: 11067876 *Qty: 1 SEEGER RING $0.90
Location: 30 Prev | Next Part: 146767 *Qty: 1 BEARING Call
Location: 31 Prev | Next Part: 155883 *Qty: 1 CLUTCH SHAFT $842.44
Location: 32 Prev | Next Part: 167344 *Qty: 1 CLUTCH TWIN DISC -Not as spare part -With the assembly 163854 Call

* Quantity shown indicates the number of pieces used in the diagram.
