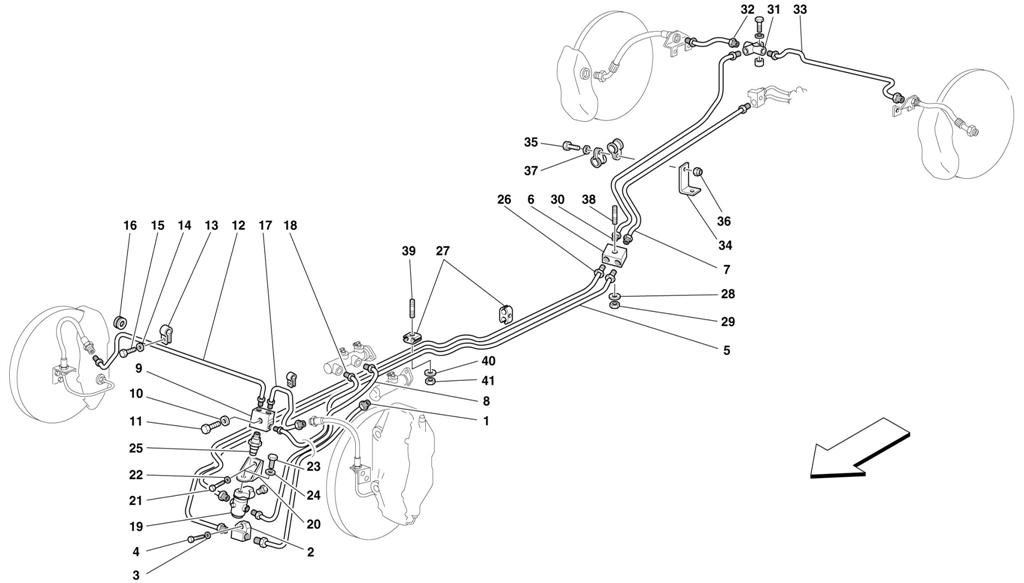

BRAKE AND CLUTCH SYSTEM

Go to Split View

BRAKE AND CLUTCH SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 166671 *Qty: 1 PIPE FROM CLUTCH PUMP TO UNION $66.13
Location: 2 Prev | Next Part: 139471 *Qty: 1 UNION $44.33
Location: 3 Prev | Next Part: 11181874 *Qty: 1 WASHER $0.90
Location: 4 Prev | Next Part: 10902624 *Qty: 1 SCREW $0.90
Location: 5 Prev | Next Part: 166672 *Qty: 1 PIPE FROM REAR UNION TO CLUTCH UNION $100.95
Location: 6 Prev | Next Part: 167528 *Qty: 1 UNION $98.77
Location: 7 Prev | Next Part: 166673 *Qty: 1 PIPE FROM REAR UNION TO CLUTCH UNION $75.20
Location: 8 Prev | Next Part: 163004 *Qty: 1 PIPE FROM BRAKE PUMP TO FRONT UNION $9.90
Location: 9 Prev | Next Part: 166590 *Qty: 1 FRONT UNION $243.63
Location: 10 Prev | Next Part: 11181874 *Qty: 1 WASHER $0.90
Location: 11 Prev | Next Part: 10903024 *Qty: 1 SCREW $0.90
Location: 12 Prev | Next Part: 163000 *Qty: 1 PIPE FROM UNION TO R.H. FRONT FLEX $104.63
Location: 13 Prev | Next Part: 10440890 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 14 Prev | Next Part: 11181874 *Qty: 1 WASHER $0.90
Location: 15 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 16 Prev | Next Part: 10396980 *Qty: 2 CABLE GROMMET $1.64
Location: 17 Prev | Next Part: 163002 *Qty: 1 PIPE FROM UNION TO L.H. FRONT FLEX $12.81
Location: 18 Prev | Next Part: 163005 *Qty: 1 PIPE FROM BRAKE PUMP TO BRAKING REGULATOR $12.77
Location: 19 Prev | Next Part: 167276 *Qty: 1 BRAKING REGULATOR $151.34
Location: 20 Prev | Next Part: 154818 *Qty: 1 SUPPORT $57.06
Location: 21 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 22 Prev | Next Part: 11181874 *Qty: 1 WASHER $0.90
Location: 23 Prev | Next Part: 16042921 *Qty: 1 SCREW $0.90
Location: 24 Prev | Next Part: 11193874 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 154309 *Qty: 1 PRESS SWITCH $39.53
Location: 26 Prev | Next Part: 163007 *Qty: 1 PIPE FROM BRAKING REGULATOR TO REAR UNION $25.73
Location: 27 Prev | Next Part: 141522 *Qty: 5 CLIP $2.15
Location: 28 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 29 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 163009 *Qty: 1 PIPE FROM UNION TO 3-WAY UNION $19.83
Location: 31 Prev | Next Part: 101394 *Qty: 1 3-WAY UNION Call
Location: 32 Prev | Next Part: 163008 *Qty: 1 PIPE FROM UNION TO R.H. REAR FLEX $12.53
Location: 33 Prev | Next Part: 163006 *Qty: 1 PIPE FROM UNION TO L.H. REAR FLEX Call
Location: 34 Prev | Next Part: 168699 *Qty: 1 BRACKET $16.53
Location: 35 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 36 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 37 Prev | Next Part: 11181874 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 11501024 *Qty: 1 STUD $1.15
Location: 39 Prev | Next Part: 11001524 *Qty: 3 STUD $2.64
Location: 40 Prev | Next Part: 12637824 *Qty: 3 WASHER $0.90
Location: 41 Prev | Next Part: 113647 *Qty: 3 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
