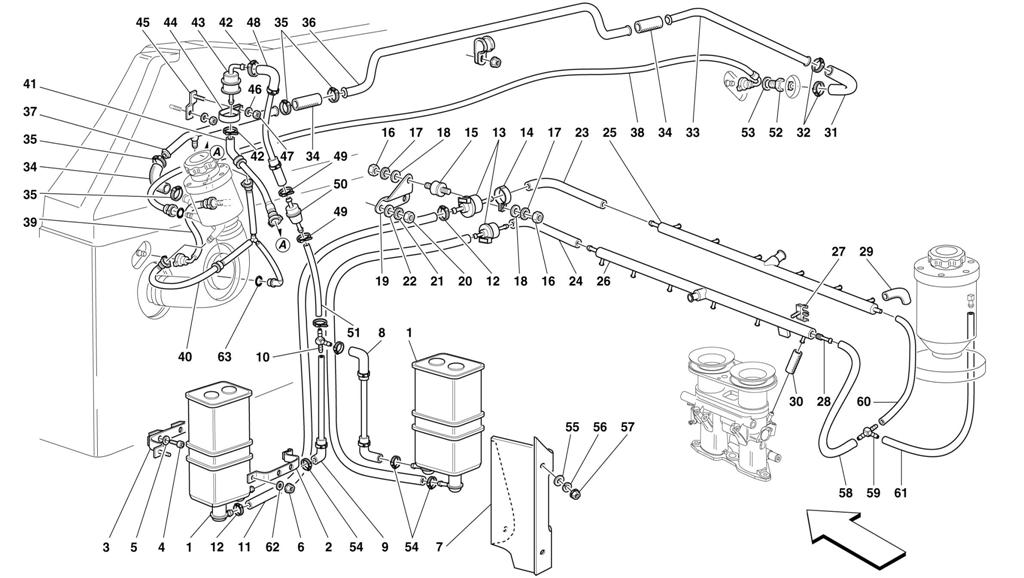

ANTIEVAPORATION DEVICE

Go to Split View

ANTIEVAPORATION DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 148413 *Qty: 2 FUEL VAPOR FILTER $156.91
Location: 2 Prev | Next Part: 154466 *Qty: 2 BRACKET $47.68
Location: 3 Prev | Next Part: 154465 *Qty: 2 BRACKET $147.07
Location: 4 Prev | Next Part: 14305124 *Qty: 4 SCREW $0.90
Location: 5 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 7 Prev | Next Part: 64780700 *Qty: 1 SHIELD $624.30
Location: 8 Prev | Next Part: 166775 *Qty: 1 PIPE FROM UNION TO REAR VAPOR FILTER $261.72
Location: 9 Prev | Next Part: 166776 *Qty: 1 PIPE TO FRONT VAPOR FILTER $278.90
Location: 10 Prev | Next Part: 167058 *Qty: 1 3-WAY UNION Call
Location: 11 Prev | Next Part: 167100 *Qty: 2 PIPE FROM VAPOR FILTER TO ENGINE $18.58
Location: 12 Prev | Next Part: 157934 *Qty: 4 SCREW COLLAR Superseded
Location: 13 Prev | Next Part: 130978 *Qty: 2 ANTI-EVAPORATION VALVE Call
Location: 14 Prev | Next Part: 147923 *Qty: 2 CLAMP $2.28
Location: 15 Prev | Next Part: 148835 *Qty: 1 PAD $14.95
Location: 16 Prev | Next Part: 15896414 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 12605274 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 14496377 *Qty: 2 WASHER $1.13
Location: 19 Prev | Next Part: 162899 *Qty: 1 PLATE $53.84
Location: 20 Prev | Next Part: 15896225 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 10615474 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 13579224 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 115412 *Qty: 1 R.H. PIPE VALVE TUBE -Not as spare part for F50 now -Replaced by 169456 $4.69
Location: 23 Prev | Next Part: 169456 *Qty: 1 R.H. PIPE VALVE TUBE $5.27
Location: 24 Prev | Next Part: 165629 *Qty: 1 L.H. PIPE VALVE TUBE -Not as spare part now -Replaced by 169455 $7.12
Location: 24 Prev | Next Part: 169455 *Qty: 1 L.H. PIPE VALVE TUBE $3.22
Location: 25 Prev | Next Part: 163084 *Qty: 1 R.H. ADDITIONAL AIR PIPE $461.45
Location: 26 Prev | Next Part: 163066 *Qty: 1 L.H. ADDITIONAL AIR PIPE $505.46
Location: 27 Prev | Next Part: 119404 *Qty: 3 CLIP $5.12
Location: 28 Prev | Next Part: 117348 *Qty: 2 THREADED UNION $9.08
Location: 29 Prev | Next Part: 165174 *Qty: 6 R.H. PIPE $28.67
Location: 30 Prev | Next Part: 163085 *Qty: 6 L.H. PIPE $29.57
Location: 31 Prev | Next Part: 166602 *Qty: 1 SLEEVE $12.87
Location: 32 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR Call
Location: 33 Prev | Next Part: 166623 *Qty: 1 R.H. TANK VENT PIPE $51.29
Location: 34 Prev | Next Part: 166622 *Qty: 2 SLEEVE Call
Location: 35 Prev | Next Part: 13000490 *Qty: 6 SCREW COLLAR Call
Location: 36 Prev | Next Part: 167057 *Qty: 1 CENTRAL VENT PIPE $82.45
Location: 37 Prev | Next Part: 166624 *Qty: 1 L.H. TANK VENT PIPE $99.53
Location: 38 Prev | Next Part: 166612 *Qty: 1 R.H. GAS VENT PIPE $253.42
Location: 39 Prev | Next Part: 166609 *Qty: 1 L.H. GAS VENT PIPE $197.79
Location: 40 Prev | Next Part: 166604 *Qty: 1 COMPLETE FUEL VAPOR FLOWING BACK PIPE $237.37
Location: 41 Prev | Next Part: 166771 *Qty: 1 VENT PIPE FROM UNION TO ANTI FLOWING BACK VALVE $215.11
Location: 42 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR Superseded
Location: 43 Prev | Next Part: 124193 *Qty: 1 ANTI FLOWING BACK VALVE Call
Location: 44 Prev | Next Part: 124226 *Qty: 1 BRACKET $8.16
Location: 45 Prev | Next Part: 167114 *Qty: 1 BRACKET $9.72
Location: 46 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 47 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 48 Prev | Next Part: 166773 *Qty: 1 PIPE FROM ANTI FLOWING BACK VALVE TO TWO WAY VALVE $268.01
Location: 49 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR Superseded
Location: 50 Prev | Next Part: 114910 *Qty: 1 TANK VENTILATION VALVE $89.66
Location: 51 Prev | Next Part: 167099 *Qty: 1 PIPE $1.65
Location: 52 Prev | Next Part: 165939 *Qty: 1 UNION $51.15
Location: 53 Prev | Next Part: 10257460 *Qty: 1 GASKET $0.90
Location: 54 Prev | Next Part: 169360 *Qty: 3 SCREW COLLAR $4.04
Location: 55 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 56 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 57 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 58 Prev | Next Part: 115666 *Qty: 1 PIPE FROM L.H. AIR PIPE TO 3-WAY UNION $21.63
Location: 59 Prev | Next Part: 121793 *Qty: 1 3-WAY UNION $0.90
Location: 60 Prev | Next Part: 169695 *Qty: 1 PIPE FROM R.H. AIR PIPE TO 3-WAY UNION $5.70
Location: 61 Prev | Next Part: 169695 *Qty: 1 PIPE FROM 3-WAY UNION TO FILLER $5.70
Location: 62 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 63 Prev | Next Part: 127816 *Qty: 2 OR GASKET $4.65

* Quantity shown indicates the number of pieces used in the diagram.
