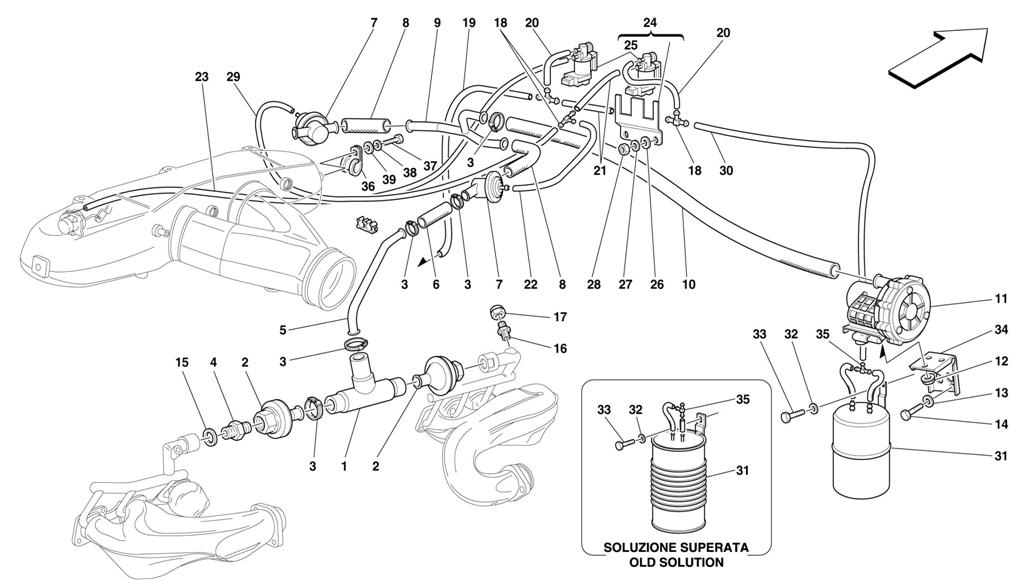

AIR INJECTION DEVICE

Go to Split View

AIR INJECTION DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165644 *Qty: 2 THREE-WAY PIPE $438.57
Location: 2 Prev | Next Part: 148494 *Qty: 4 SECONDARY AIR VALVE $39.00
Location: 3 Prev | Next Part: 13000490 *Qty: 18 SCREW COLLAR Call
Location: 4 Prev | Next Part: 152631 *Qty: 4 THREADED UNION $50.09
Location: 5 Prev | Next Part: 165643 *Qty: 2 RIGID PIPE $68.72
Location: 6 Prev | Next Part: 165446 *Qty: 2 RUBBER HOSE $32.74
Location: 7 Prev | Next Part: 147390 *Qty: 2 CUT-OFF VALVE $330.75
Location: 8 Prev | Next Part: 165641 *Qty: 2 SHAPED PIPE $161.29
Location: 9 Prev | Next Part: 165640 *Qty: 1 3-WAY RIGID PIPE $98.81
Location: 10 Prev | Next Part: 165639 *Qty: 1 PIPE FROM AIR PUMP TO 3-WAY UNION $120.29
Location: 11 Prev | Next Part: 165903 *Qty: 1 ELECTRIC AIR PUMP $883.65
Location: 12 Prev | Next Part: 15896214 *Qty: 3 NUT $0.90
Location: 13 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 10257460 *Qty: 1 GASKET $0.90
Location: 16 Prev | Next Part: 152630 *Qty: 1 THREADED UNION $67.44
Location: 17 Prev | Next Part: 150595 *Qty: 1 CAP NUT $1.20
Location: 18 Prev | Next Part: 146972 *Qty: 3 3-WAY UNION $105.26
Location: 19 Prev | Next Part: 115149 *Qty: 1 RUBBER HOSE $41.16
Location: 20 Prev | Next Part: 163092 *Qty: 2 RUBBER HOSE $1.26
Location: 21 Prev | Next Part: 115666 *Qty: 2 RUBBER HOSE -Not as spare part now -Replaced by 141235 $22.31
Location: 21 Prev | Next Part: 141235 *Qty: 2 RUBBER HOSE $11.02
Location: 22 Prev | Next Part: 165608 *Qty: 1 RUBBER HOSE $2.83
Location: 23 Prev | Next Part: 124791 *Qty: 1 RUBBER HOSE Call
Location: 24 Prev | Next Part: 159176 *Qty: 1 PLATE WITH SOLENOID VALVE $141.66
Location: 25 Prev | Next Part: 159177 *Qty: 2 SOLENOID VALVE $199.78
Location: 26 Prev | Next Part: 13579224 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 10615474 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 15896225 *Qty: 2 NUT $0.90
Location: 29 Prev | Next Part: 122126 *Qty: 1 RUBBER HOSE $11.18
Location: 30 Prev | Next Part: 117170 *Qty: 1 RUBBER HOSE Call
Location: 31 Prev | Next Part: 168038 *Qty: 1 VACUUM TANK -Valid after stock exhaustion of 63397700 $676.18
Location: 32 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 64165400 *Qty: 1 BRACKET FOR AIR PUMP Call
Location: 35 Prev | Next Part: 146972 *Qty: 1 UNION $105.26
Location: 36 Prev | Next Part: 10442190 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 37 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 38 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 39 Prev | Next Part: 11197771 *Qty: 1 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
