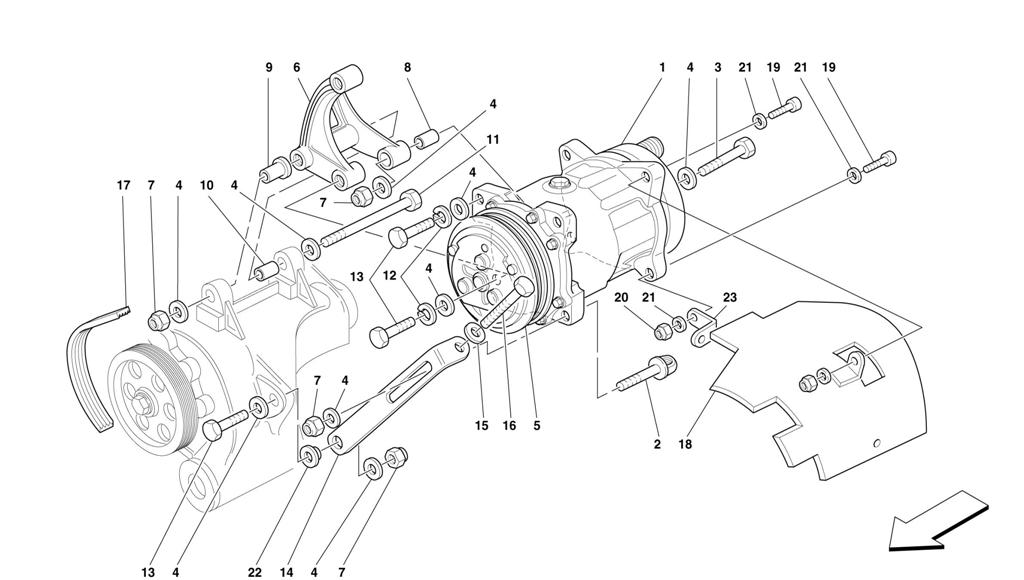

AIR CONDITIONING COMPRESSOR

Go to Split View

AIR CONDITIONING COMPRESSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154169 *Qty: 1 AIR CONDITIONING COMPRESSOR $2,981.53
Location: 2 Prev | Next Part: 160947 *Qty: 1 THREADED PIN $120.92
Location: 3 Prev | Next Part: 11288021 *Qty: 1 SCREW $0.90
Location: 4 Prev | Next Part: 14496609 *Qty: 10 WASHER $0.90
Location: 5 Prev | Next Part: 154444 *Qty: 1 ELECTRO-MAGNETIC JOINT Call
Location: 6 Prev | Next Part: 160688 *Qty: 1 COMPRESSOR SUPPORT BRACKET $547.98
Location: 7 Prev | Next Part: 12574511 *Qty: 4 NUT Superseded
Location: 8 Prev | Next Part: 123180 *Qty: 1 DOWEL $3.19
Location: 9 Prev | Next Part: 145358 *Qty: 1 BUSHING $23.67
Location: 10 Prev | Next Part: 151809 *Qty: 2 BUSHING $2.96
Location: 11 Prev | Next Part: 15972224 *Qty: 1 SCREW $2.67
Location: 12 Prev | Next Part: 127497 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 11307024 *Qty: 3 SCREW $1.25
Location: 14 Prev | Next Part: 160945 *Qty: 1 BELT TENSION ADJUSTING BRACKET $60.13
Location: 15 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 125668 *Qty: 1 SCREW $1.87
Location: 17 Prev | Next Part: 175956 *Qty: 1 BELT $189.26
Location: 18 Prev | Next Part: 150658 *Qty: 1 SHIELD FOR COMPRESSOR PROTECTION $375.29
Location: 19 Prev | Next Part: 14306524 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 133215 *Qty: 2 NUT $3.75
Location: 21 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 167524 *Qty: 1 BUSHING $12.26
Location: 23 Prev | Next Part: 142060 *Qty: 1 BRACKET $8.60

* Quantity shown indicates the number of pieces used in the diagram.
