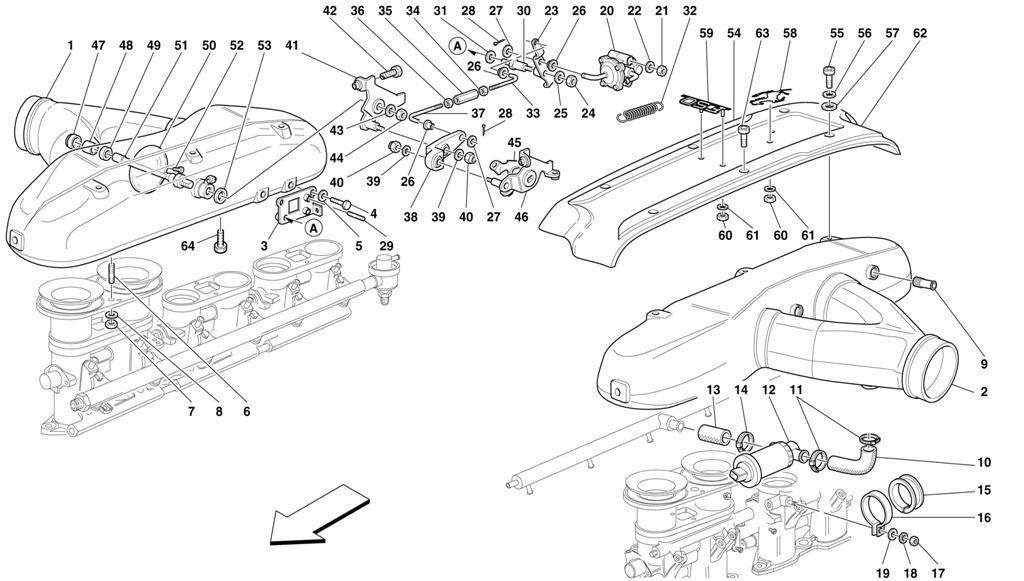

AIR BOXES AND CONTROLS

Go to Split View

AIR BOXES AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 169566 *Qty: 1 COMPLETE R.H. PLENUM CHAMBER $13,966.30
Location: 1 Prev | Next Part: 166573 *Qty: 1 COMPLETE R.H. PLENUM CHAMBER -Not as spare part now -Replaced by 169566 Call
Location: 2 Prev | Next Part: 169565 *Qty: 1 COMPLETE L.H. PLENUM CHAMBER $27,761.54
Location: 2 Prev | Next Part: 161796 *Qty: 1 COMPLETE L.H. PLENUM CHAMBER -Not as spare part now -Replaced by 169565 Call
Location: 3 Prev | Next Part: 161499 *Qty: 1 PLATE $116.64
Location: 4 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 5 Prev | Next Part: 11193274 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 11500424 *Qty: 10 STUD $0.90
Location: 7 Prev | Next Part: 102741 *Qty: 12 NUT $0.90
Location: 8 Prev | Next Part: 12604274 *Qty: 12 WASHER $0.90
Location: 9 Prev | Next Part: 154525 *Qty: 2 THREADED UNION Call
Location: 10 Prev | Next Part: 165172 *Qty: 2 PIPE $18.30
Location: 11 Prev | Next Part: 13000490 *Qty: 4 SCREW COLLAR Call
Location: 12 Prev | Next Part: 147373 *Qty: 2 REGULATOR FOR IDLE ADJUSTMENT $557.62
Location: 13 Prev | Next Part: 163065 *Qty: 1 L.H. PIPE Call
Location: 13 Prev | Next Part: 165173 *Qty: 1 R.H. PIPE $19.66
Location: 14 Prev | Next Part: 13000490 *Qty: 4 SCREW COLLAR Call
Location: 15 Prev | Next Part: 150736 *Qty: 2 SHEATH FOR BRACKET Call
Location: 16 Prev | Next Part: 151738 *Qty: 2 BRACKET $8.27
Location: 17 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 12605371 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 160887 *Qty: 1 PNEUMATIC CAPSULE $47.09
Location: 21 Prev | Next Part: 12577817 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 23 Prev | Next Part: 161501 *Qty: 1 COMPLETE LEVER $384.54
Location: 24 Prev | Next Part: 12577817 *Qty: 1 NUT $0.90
Location: 25 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 137271 *Qty: 3 BUSHING $3.24
Location: 27 Prev | Next Part: 14496201 *Qty: 6 WASHER $0.90
Location: 28 Prev | Next Part: 10794501 *Qty: 3 SPLIT PIN $0.90
Location: 29 Prev | Next Part: 11001724 *Qty: 2 STUD $2.92
Location: 30 Prev | Next Part: 137277 *Qty: 1 STUD $58.12
Location: 31 Prev | Next Part: 11193274 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 161498 *Qty: 1 SPRING $12.15
Location: 33 Prev | Next Part: 137270 *Qty: 1 R. H. THREADED TIE ROD $31.89
Location: 34 Prev | Next Part: 10791111 *Qty: 1 L.H. THREADED NUT Call
Location: 35 Prev | Next Part: 137273 *Qty: 1 ADJUSTMENT SLEEVE $3.51
Location: 36 Prev | Next Part: 10794011 *Qty: 1 NUT $0.90
Location: 37 Prev | Next Part: 137276 *Qty: 1 L. H. THREADED TIE ROD $31.89
Location: 38 Prev | Next Part: 161465 *Qty: 1 TRANSMISSION LEVER $229.80
Location: 39 Prev | Next Part: 14497801 *Qty: 2 WASHER $2.41
Location: 40 Prev | Next Part: 12577817 *Qty: 2 NUT $0.90
Location: 41 Prev | Next Part: 161466 *Qty: 1 R.H. THROTTLE CONTROL LEVER $194.40
Location: 42 Prev | Next Part: 169533 *Qty: 6 ADJUSTMENT SCREW $62.87
Location: 43 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 16102314 *Qty: 2 NUT $0.90
Location: 45 Prev | Next Part: 161468 *Qty: 1 L.H. THROTTLE CONTROL LEVER $213.84
Location: 46 Prev | Next Part: 161467 *Qty: 1 L.H. THROTTLE CONTROL TRANSMISSION LEVER $111.56
Location: 47 Prev | Next Part: 14328301 *Qty: 2 PLUG $0.90
Location: 48 Prev | Next Part: 136922 *Qty: 2 BUSHING $1.91
Location: 49 Prev | Next Part: 161474 *Qty: 2 GASKET $14.18
Location: 50 Prev | Next Part: 142936 *Qty: 2 AIR FLOW ADJUSTTING THROTTLE $97.22
Location: 51 Prev | Next Part: 161497 *Qty: 2 SHAFT FOR THROTTLE $156.32
Location: 52 Prev | Next Part: 136923 *Qty: 4 SCREW $0.90
Location: 53 Prev | Next Part: 128010 *Qty: 1 WASHER $3.77
Location: 54 Prev | Next Part: 167020 *Qty: 1 PLENUM CHAMBERS COVER Call
Location: 55 Prev | Next Part: 14305324 *Qty: 4 SCREW $0.90
Location: 56 Prev | Next Part: 12604274 *Qty: 6 WASHER $0.90
Location: 57 Prev | Next Part: 166462 *Qty: 6 WASHER $0.90
Location: 58 Prev | Next Part: 60032109 *Qty: 1 CAVALLINO RAMPANTE $41.18
Location: 59 Prev | Next Part: 167022 *Qty: 1 F50 MARK $251.21
Location: 60 Prev | Next Part: 61002200 *Qty: 2 NUT $0.90
Location: 61 Prev | Next Part: 12639401 *Qty: 2 WASHER $0.90
Location: 62 Prev | Next Part: 167020 *Qty: 1 PLENUM CHAMBERS COVER Call
Location: 63 Prev | Next Part: 14305124 *Qty: 2 SCREW $0.90
Location: 64 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
