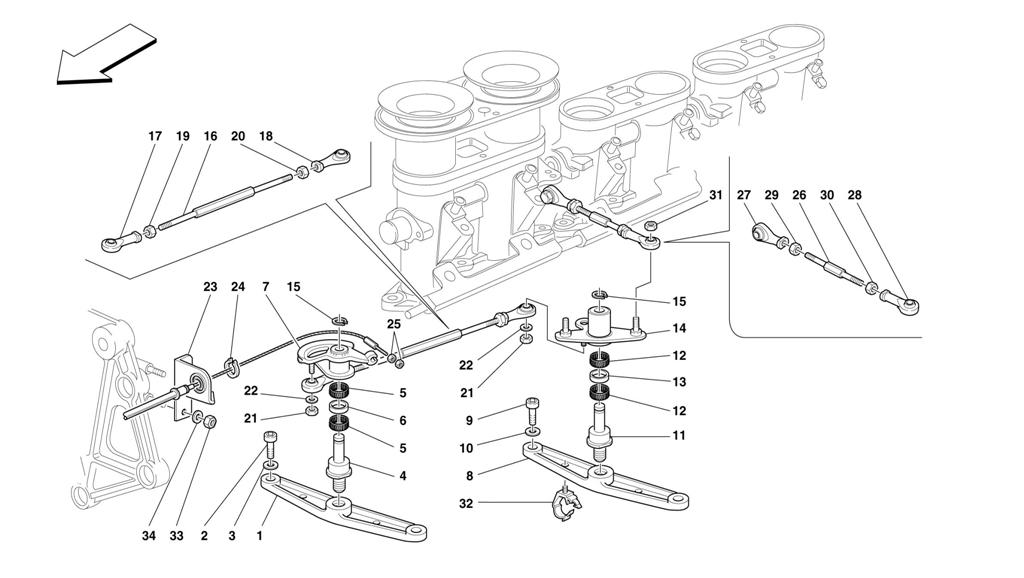

ACCELERATOR CONTROL

Go to Split View

ACCELERATOR CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165735 *Qty: 1 FRONT SUPPORT $151.39
Location: 2 Prev | Next Part: 14306424 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 165734 *Qty: 1 TRASMISSION PIN $139.20
Location: 5 Prev | Next Part: 132873 *Qty: 2 ROLLERS BEARING $5.48
Location: 6 Prev | Next Part: 136880 *Qty: 1 SPACER $30.45
Location: 7 Prev | Next Part: 166576 *Qty: 1 ACCELERATOR CONTROL FRONT LEVER $893.79
Location: 8 Prev | Next Part: 165736 *Qty: 1 SUPPORT $272.37
Location: 9 Prev | Next Part: 14306424 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 165734 *Qty: 1 TRASMISSION PIN $139.20
Location: 12 Prev | Next Part: 132873 *Qty: 2 ROLLERS BEARING $5.48
Location: 13 Prev | Next Part: 136880 *Qty: 1 SPACER $30.45
Location: 14 Prev | Next Part: 165741 *Qty: 1 THROTTLE CONTROL LEVER -Not as spare part now -Replaced by 168174 Call
Location: 14 Prev | Next Part: 168174 *Qty: 1 THROTTLE CONTROL LEVER $258.37
Location: 15 Prev | Next Part: 11065676 *Qty: 2 SEEGER RING $0.90
Location: 16 Prev | Next Part: 164532 *Qty: 1 TIE ROD $19.11
Location: 17 Prev | Next Part: 111529 *Qty: 1 FEMALE BALL JOINT $87.10
Location: 18 Prev | Next Part: 111530 *Qty: 1 FEMALE BALL JOINT $35.48
Location: 19 Prev | Next Part: 105586 *Qty: 1 NUT $5.54
Location: 20 Prev | Next Part: 15896414 *Qty: 1 NUT $0.90
Location: 21 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 12604174 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 165744 *Qty: 1 LEVER $194.40
Location: 24 Prev | Next Part: 11065676 *Qty: 1 SEEGER RING $0.90
Location: 25 Prev | Next Part: 10788815 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 160085 *Qty: 1 TIE ROD $8.84
Location: 27 Prev | Next Part: 111530 *Qty: 1 FEMALE BALL JOINT $35.48
Location: 28 Prev | Next Part: 111529 *Qty: 1 FEMALE BALL JOINT $87.10
Location: 29 Prev | Next Part: 105586 *Qty: 1 NUT $5.54
Location: 30 Prev | Next Part: 15896414 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 14631387 *Qty: 4 CLIP $0.90
Location: 33 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 34 Prev | Next Part: 12604274 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
