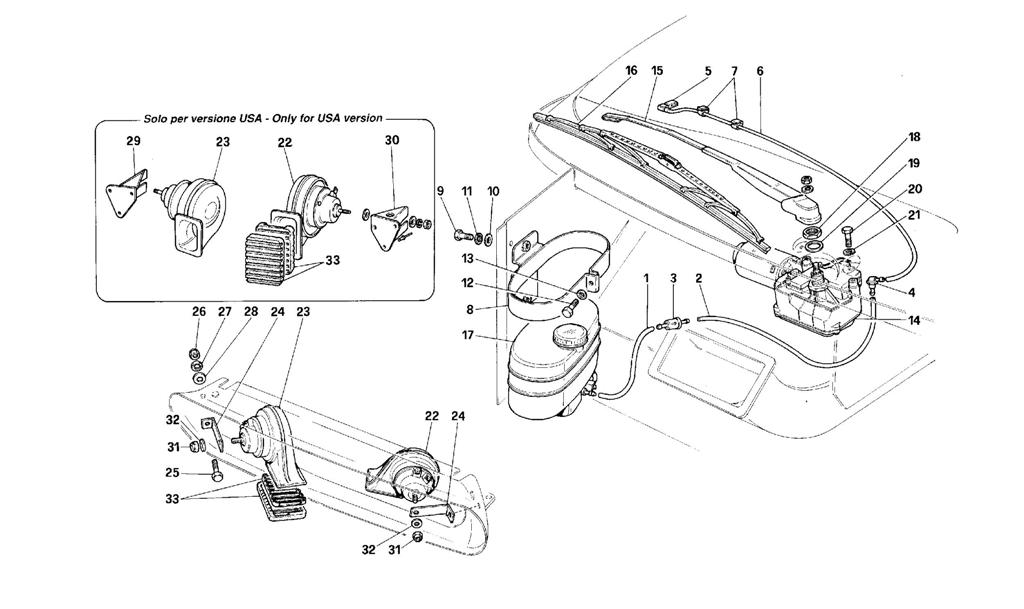

WINDSHIELD WIPER AND HORNS

Go to Split View

WINDSHIELD WIPER AND HORNS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62530800 *Qty: 1 Pipe $12.20
Location: 2 Prev | Next Part: 62530900 *Qty: 1 Pipe $39.00
Location: 3 Prev | Next Part: 50332402 *Qty: 1 Valve $10.31
Location: 4 Prev | Next Part: 61648000 *Qty: 1 Union $9.35
Location: 5 Prev | Next Part: 61537500 *Qty: 1 Jet $34.61
Location: 6 Prev | Next Part: 62488800 *Qty: 1 Pipe Call
Location: 7 Prev | Next Part: 61559400 *Qty: 2 Spring $3.10
Location: 8 Prev | Next Part: 62496700 *Qty: 1 Clip $431.28
Location: 9 Prev | Next Part: 10902011 *Qty: 2 Screw $8.96
Location: 10 Prev | Next Part: 12643724 *Qty: 2 Washer $0.90
Location: 11 Prev | Next Part: 10615474 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 10445711 *Qty: 1 Screw $0.90
Location: 13 Prev | Next Part: 10615279 *Qty: 1 Washer Call
Location: 14 Prev | Next Part: 142817 *Qty: 1 Wiper motor Superseded
Location: 15 Prev | Next Part: 62424400 *Qty: 1 Arm $37.33
Location: 16 Prev | Next Part: 62424500 *Qty: 1 Wiper blade $57.70
Location: 17 Prev | Next Part: 60375706 *Qty: 1 Washer bag Call
Location: 18 Prev | Next Part: 16103928 *Qty: 1 Nut $1.90
Location: 19 Prev | Next Part: 138183 *Qty: 1 Washer $2.37
Location: 20 Prev | Next Part: 10902387 *Qty: 2 Screw $1.08
Location: 21 Prev | Next Part: 12643778 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 62464000 *Qty: 1 Horn (lower tone) $69.73
Location: 23 Prev | Next Part: 62463900 *Qty: 1 Horn (high tone) $69.73
Location: 24 Prev | Next Part: 62506400 *Qty: 2 Horns fixing bracket -Not for USA $9.27
Location: 25 Prev | Next Part: 16043221 *Qty: 2 Screw $0.90
Location: 26 Prev | Next Part: 16100821 *Qty: 2 Nut $3.46
Location: 27 Prev | Next Part: 10615679 *Qty: 2 Washer Call
Location: 28 Prev | Next Part: 136904 *Qty: 2 Washer $3.51
Location: 29 Prev | Next Part: 62903900 *Qty: 1 R.H. horn fixing bracket -Valid for USA $30.64
Location: 30 Prev | Next Part: 62904000 *Qty: 1 L.H. horn fixing bracket -Valid for USA $30.64
Location: 31 Prev | Next Part: 102948 *Qty: 2 Nut $0.90
Location: 32 Prev | Next Part: 10519424 *Qty: 2 Washer Call
Location: 33 Prev | Next Part: 70000550 *Qty: 2 Protection horns grille $13.24

* Quantity shown indicates the number of pieces used in the diagram.
