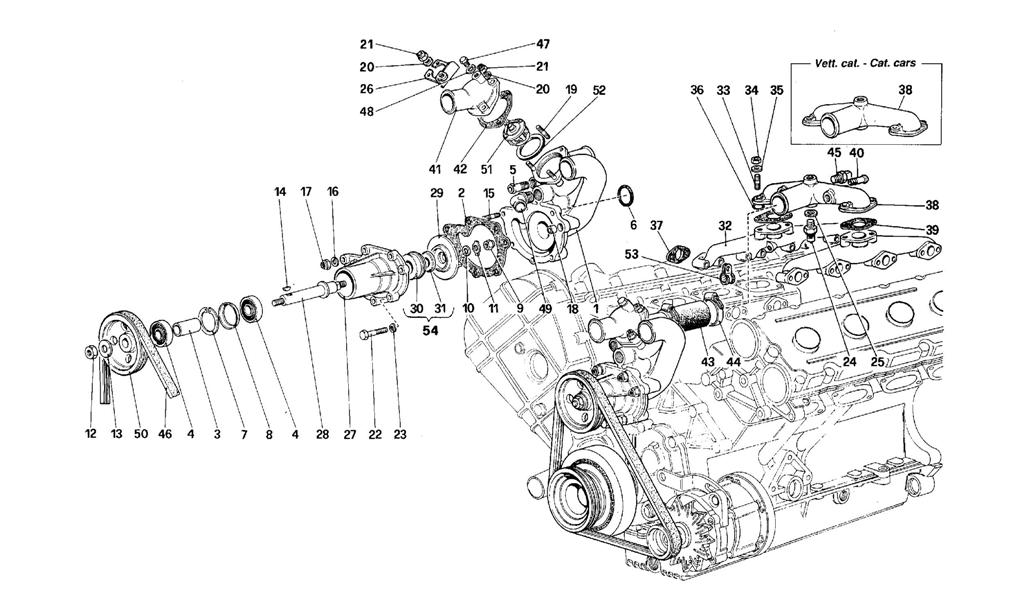

WATER PUMP AND PIPINGS

Go to Split View

WATER PUMP AND PIPINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 134086 *Qty: 1 Water pump complete (Front) Call
Location: - Prev | Next Part: 144247 *Qty: 1 Water pump complete -Valid for cars with catalyst Call
Location: - Prev | Next Part: 134084 *Qty: 1 Water pump body complete $3,249.11
Location: - Prev | Next Part: 134085 *Qty: 1 Water pump complete -Not for cars with catalyst $3,003.77
Location: 1 Prev | Next Part: 134059 *Qty: 1 Water pump body & by-pass -Not as spare parts -With assembly 134084 Call
Location: 2 Prev | Next Part: 135121 *Qty: 1 Gasket $6.10
Location: 3 Prev | Next Part: 116157 *Qty: 1 Spacer $93.33
Location: 4 Prev | Next Part: 116159 *Qty: 2 Bearing Call
Location: 5 Prev | Next Part: 106227 *Qty: 1 Fitting $8.38
Location: 6 Prev | Next Part: 105196 *Qty: 1 Sealing ring $3.86
Location: 7 Prev | Next Part: 11060076 *Qty: 1 Seeger $0.90
Location: 8 Prev | Next Part: 116158 *Qty: 1 Washer $7.01
Location: 9 Prev | Next Part: 100436 *Qty: 1 Nut $13.30
Location: 10 Prev | Next Part: 10730321 *Qty: 1 Washer $0.90
Location: 11 Prev | Next Part: 100434 *Qty: 1 Plate $9.78
Location: 12 Prev | Next Part: 16101521 *Qty: 1 Nut $0.90
Location: 13 Prev | Next Part: 11198679 *Qty: 1 Washer $1.00
Location: 14 Prev | Next Part: 10205820 *Qty: 1 Tounge $1.65
Location: 15 Prev | Next Part: 11500721 *Qty: 3 Stud $1.63
Location: 16 Prev | Next Part: 12601279 *Qty: 3 Washer Superseded
Location: 17 Prev | Next Part: 102948 *Qty: 3 Nut $0.90
Location: 18 Prev | Next Part: 102704 *Qty: 2 Dowel $2.24
Location: 19 Prev | Next Part: 13541124 *Qty: 3 Stud $8.43
Location: 20 Prev | Next Part: 12601279 *Qty: 3 Washer Superseded
Location: 21 Prev | Next Part: 102948 *Qty: 3 Nut $0.90
Location: 22 Prev | Next Part: 16044421 *Qty: 4 Screw Call
Location: 23 Prev | Next Part: 12601379 *Qty: 4 Washer Superseded
Location: 24 Prev | Next Part: 136304 *Qty: 1 Switch $58.57
Location: 25 Prev | Next Part: 10298460 *Qty: 1 Gasket $0.90
Location: 26 Prev | Next Part: 136322 *Qty: 1 Bracket $39.51
Location: 27 Prev | Next Part: 134086 *Qty: 1 Pump cover -Not as spare parts -With assembly 134086 Call
Location: 28 Prev | Next Part: 121253 *Qty: 1 Splindle for pulley Call
Location: 29 Prev | Next Part: 125964 *Qty: 1 Impeller $313.44
Location: 30 Prev | Next Part: 152051 *Qty: 1 Sealing ring -Not as spare part now -Replaced by part 54- $137.38
Location: 31 Prev | Next Part: 152051 *Qty: 1 Backplate for ring -Not as spare part now -Replaced by part 54- $137.38
Location: 32 Prev | Next Part: 136741 *Qty: 2 Manifold for water outlet -Not for cars with catalyst $92.59
Location: 32 Prev | Next Part: 144938 *Qty: 2 Manifold for water outlet -Valid for cars with catalyst $2,726.73
Location: 33 Prev | Next Part: 13516821 *Qty: 4 Stud $1.10
Location: 34 Prev | Next Part: 16100821 *Qty: 4 Nut $3.57
Location: 35 Prev | Next Part: 11198074 *Qty: 4 Washer $0.90
Location: 36 Prev | Next Part: 103039 *Qty: 4 Sealing ring $1.18
Location: 37 Prev | Next Part: 132980 *Qty: 8 Gasket $1.93
Location: 38 Prev | Next Part: 144010 *Qty: 1 Junction pipe to water outlet manifolds -Valid for cars with catalyst $394.75
Location: 38 Prev | Next Part: 134080 *Qty: 1 Junction pipe to water outlet manifolds -Not for cars with catalyst $449.43
Location: 39 Prev | Next Part: 132981 *Qty: 2 Gasket $4.60
Location: 40 Prev | Next Part: 106241 *Qty: 1 Fitting $40.00
Location: 41 Prev | Next Part: 136291 *Qty: 1 Water outlet union $44.31
Location: 42 Prev | Next Part: 105189 *Qty: 1 Gasket $4.82
Location: 43 Prev | Next Part: 134225 *Qty: 1 Sleeve $89.24
Location: 44 Prev | Next Part: 12180090 *Qty: 2 Clamp $0.90
Location: 45 Prev | Next Part: 104628 *Qty: 1 Thermistor $69.95
Location: 46 Prev | Next Part: 199821 *Qty: 1 Belt and generator $34.78
Location: 47 Prev | Next Part: 16042940 *Qty: 1 Screw $1.60
Location: 48 Prev | Next Part: 10260060 *Qty: 1 Gasket $1.50
Location: 49 Prev | Next Part: 122844 *Qty: 1 Fitting Call
Location: 50 Prev | Next Part: 142849 *Qty: 1 Pulley -Valid for cars with catalyst $151.42
Location: 50 Prev | Next Part: 133309 *Qty: 1 Pulley -Not for cars with catalyst $290.02
Location: 51 Prev | Next Part: 128991 *Qty: 1 Thermostat $197.65
Location: 52 Prev | Next Part: 105192 *Qty: 1 Gasket $21.41
Location: 53 Prev | Next Part: 10441690 *Qty: 1 Bracket $0.90
Location: 54 Prev | Next Part: 152051 *Qty: 1 Complete sealing ring $137.38

* Quantity shown indicates the number of pieces used in the diagram.
