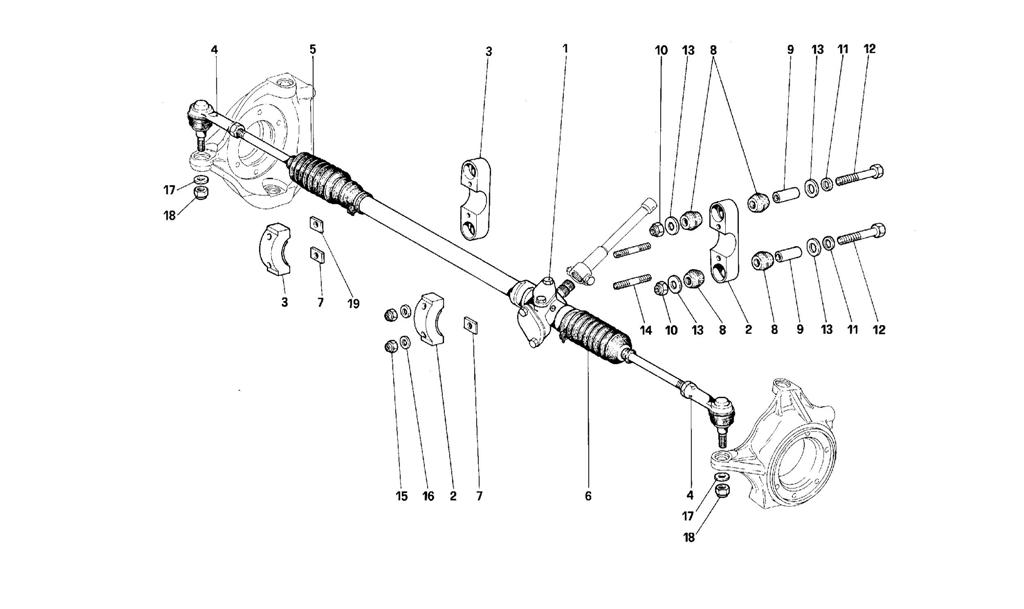

STEERING BOX AND LINKAGE

Go to Split View

STEERING BOX AND LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 139407 *Qty: 1 Steering box assembly $3,830.07
Location: 2 Prev | Next Part: 108241 *Qty: 1 Support, pinion side $99.80
Location: 3 Prev | Next Part: 115493 *Qty: 1 Support, opposite side of pinion $81.60
Location: 4 Prev | Next Part: 161128 *Qty: 2 Ball joint with nut $125.26
Location: 5 Prev | Next Part: 131650 *Qty: 1 Right bellows $160.33
Location: 6 Prev | Next Part: 139408 *Qty: 1 Left bellows $48.87
Location: 7 Prev | Next Part: 134754 *Qty: 2 Spacer $4.31
Location: 8 Prev | Next Part: 125061 *Qty: 8 Grommet $7.01
Location: 9 Prev | Next Part: 108294 *Qty: 4 Spacer pipe $114.45
Location: 10 Prev | Next Part: 16104121 *Qty: 4 Nut Superseded
Location: 11 Prev | Next Part: 10519624 *Qty: 4 Washer $0.90
Location: 12 Prev | Next Part: 16044321 *Qty: 4 Screw $0.90
Location: 13 Prev | Next Part: 116413 *Qty: 8 Stud $1.36
Location: 14 Prev | Next Part: 13543821 *Qty: 4 Nut Call
Location: 15 Prev | Next Part: 16104121 *Qty: 4 Nut Superseded
Location: 16 Prev | Next Part: 10519624 *Qty: 4 Washer $0.90
Location: 17 Prev | Next Part: 122238 *Qty: 2 Washer $5.78
Location: 18 Prev | Next Part: 134287 *Qty: 2 Nut $1.65
Location: 19 Prev | Next Part: 134755 *Qty: 1 Spacer $4.31

* Quantity shown indicates the number of pieces used in the diagram.
