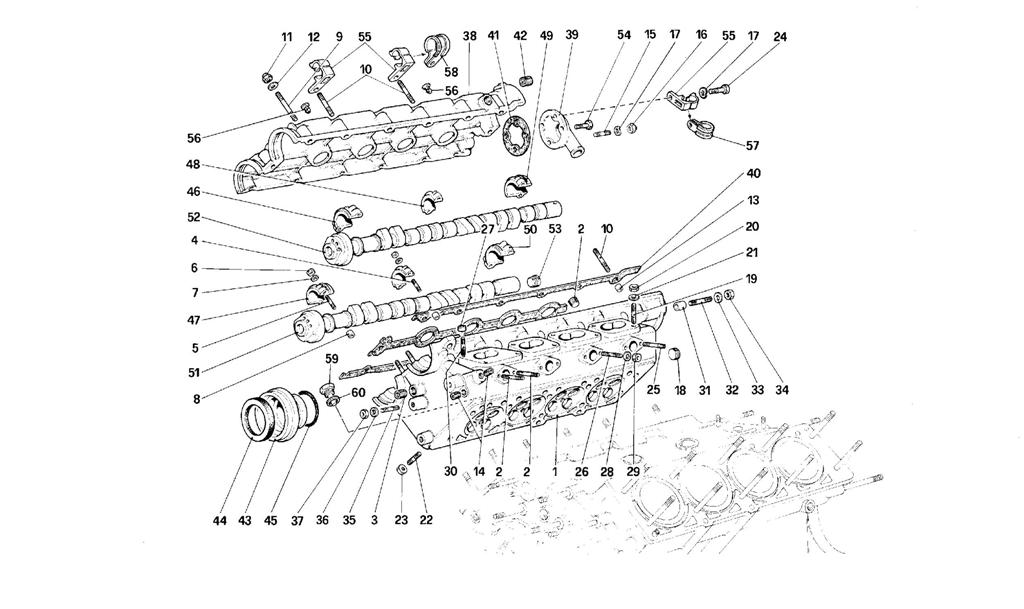

R.H. CYLINDER HEAD

Go to Split View

R.H. CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 134204 *Qty: 1 Right intake camshaft complete $1,958.21
Location: - Prev | Next Part: 134206 *Qty: 1 Right exhaust camshaft complete $2,019.40
Location: - Prev | Next Part: 134221 *Qty: 1 Right cylinder head, compl. $14,886.14
Location: - Prev | Next Part: 120795 *Qty: 1 Head cover, compl. -Not as spare parts -With assembly 134221 Call
Location: 1 Prev | Next Part: 133746 *Qty: 1 Right cylinder head -Not as spare parts - With assembly 134221 Call
Location: 2 Prev | Next Part: 10269750 *Qty: 5 Plug $2.01
Location: 3 Prev | Next Part: 13526070 *Qty: 1 Heli-coil $4.44
Location: 4 Prev | Next Part: 102735 *Qty: 12 Stud for intermediate caps $23.76
Location: 5 Prev | Next Part: 102754 *Qty: 8 Stud for outer caps $6.11
Location: 6 Prev | Next Part: 15896214 *Qty: 20 Nut $0.90
Location: 7 Prev | Next Part: 11197770 *Qty: 20 Washer Superseded
Location: 8 Prev | Next Part: 102725 *Qty: 20 Dowel $0.90
Location: 9 Prev | Next Part: 13541624 *Qty: 10 Stud $0.90
Location: 10 Prev | Next Part: 13541724 *Qty: 4 Stud $2.07
Location: 11 Prev | Next Part: 100044 *Qty: 14 Selflocking nut $0.90
Location: 12 Prev | Next Part: 11197773 *Qty: 14 Washer Superseded
Location: 13 Prev | Next Part: 121907 *Qty: 2 Dowel $20.04
Location: 14 Prev | Next Part: 14326150 *Qty: 3 Plug $0.90
Location: 15 Prev | Next Part: 11500521 *Qty: 2 Stud $2.54
Location: 16 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 17 Prev | Next Part: 12601279 *Qty: 4 Washer Superseded
Location: 18 Prev | Next Part: 10269650 *Qty: 1 Plug $1.98
Location: 19 Prev | Next Part: 13543324 *Qty: 8 Stud $4.04
Location: 20 Prev | Next Part: 16100821 *Qty: 10 Nut $3.46
Location: 21 Prev | Next Part: 11198074 *Qty: 10 Washer $0.90
Location: 22 Prev | Next Part: 144773 *Qty: 8 Stud securing exhaust manifold $30.89
Location: 23 Prev | Next Part: 138392 *Qty: 8 Nut $1.41
Location: 24 Prev | Next Part: 10902324 *Qty: 1 Screw Superseded
Location: 25 Prev | Next Part: 13541624 *Qty: 2 Short stud $0.90
Location: 26 Prev | Next Part: 13541724 *Qty: 6 Long stud $2.07
Location: 27 Prev | Next Part: 124946 *Qty: 2 Spacer $10.18
Location: 28 Prev | Next Part: 11197770 *Qty: 8 Washer Superseded
Location: 29 Prev | Next Part: 15896214 *Qty: 8 Nut $0.90
Location: 30 Prev | Next Part: 13543524 *Qty: 2 Stud for fixing suction manifold (front part) $0.96
Location: 31 Prev | Next Part: 102725 *Qty: 2 Dowel $0.90
Location: 32 Prev | Next Part: 13541124 *Qty: 2 Stud for fixing calotte support $8.18
Location: 33 Prev | Next Part: 11197773 *Qty: 2 Washer Superseded
Location: 34 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 35 Prev | Next Part: 13543324 *Qty: 3 Stud $4.04
Location: 36 Prev | Next Part: 12601379 *Qty: 3 Washer Superseded
Location: 37 Prev | Next Part: 16104411 *Qty: 3 Nut $0.90
Location: 38 Prev | Next Part: 120794 *Qty: 1 Right head cover -With complet cover Call
Location: 39 Prev | Next Part: 103808 *Qty: 1 End cover with blow-by inlet Call
Location: 40 Prev | Next Part: 150078 *Qty: 1 Gasket $89.95
Location: 41 Prev | Next Part: 151342 *Qty: 1 Gasket $4.20
Location: 42 Prev | Next Part: 120711 *Qty: 3 Heli-coil $13.25
Location: 43 Prev | Next Part: 144973 *Qty: 2 Front cover -Valid after depletion of 117257 Call
Location: 44 Prev | Next Part: 163987 *Qty: 2 Sealing ring $15.00
Location: 45 Prev | Next Part: 117275 *Qty: 2 Sealing ring $6.26
Location: 46 Prev | Next Part: 117039 *Qty: 1 Front cap inlet side -With compl. cylinder head Call
Location: 47 Prev | Next Part: 117040 *Qty: 1 Front cap exhaust side -With compl. cylinder head Call
Location: 48 Prev | Next Part: 126811 *Qty: 6 Intermediate cap -With compl. cylinder head Call
Location: 49 Prev | Next Part: 126813 *Qty: 1 Rear cap inlet side -With compl. cylinder head Call
Location: 50 Prev | Next Part: 126812 *Qty: 1 Rear cap exhaust side -With compl. cylinder head Call
Location: 51 Prev | Next Part: 134202 *Qty: 1 Right exhaust camshaft -With assembly 134206 Call
Location: 52 Prev | Next Part: 134200 *Qty: 1 Right intake camshafth -With assembly 134204 Call
Location: 53 Prev | Next Part: 10269750 *Qty: 1 Plug $2.01
Location: 54 Prev | Next Part: 10902221 *Qty: 1 Screw $1.27
Location: 55 Prev | Next Part: 129544 *Qty: 3 Clip -For cars with catalyst Q.ty 1 $2.31
Location: 56 Prev | Next Part: 14592487 *Qty: 2 Plug $0.90
Location: 57 Prev | Next Part: 10441790 *Qty: 1 Bracket -Valid for cars with catalyst $0.94
Location: 58 Prev | Next Part: 10441290 *Qty: 1 Bracket -Valid for cars with catalyst $0.90
Location: 59 Prev | Next Part: 127545 *Qty: 4 Plug -Not for cars with catalyst $30.21
Location: 60 Prev | Next Part: 10257060 *Qty: 4 Gasket -Not for cars with catalyst $0.90

* Quantity shown indicates the number of pieces used in the diagram.
