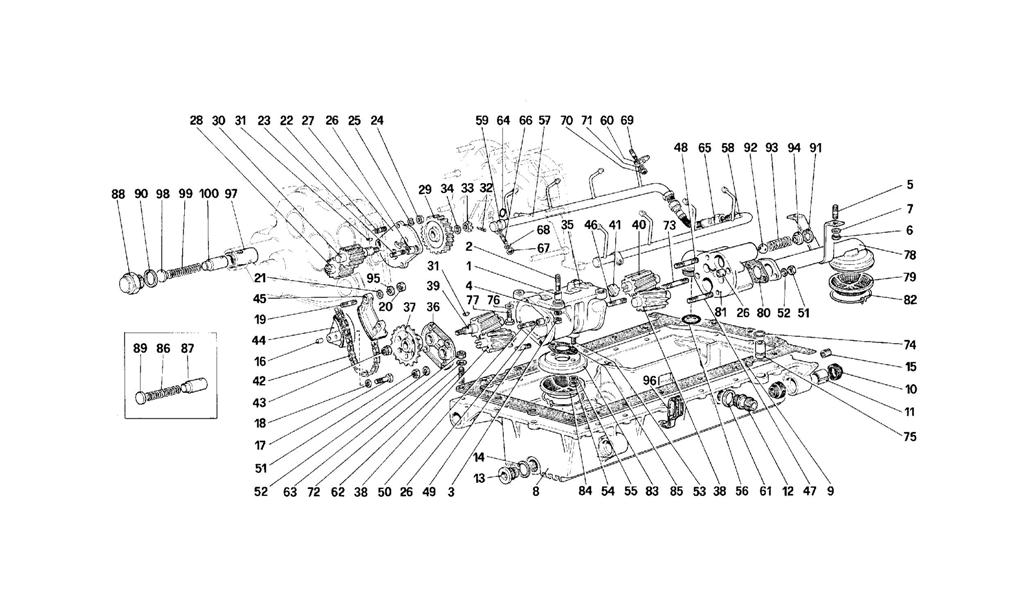

LUBRICATION - PUMPS

Go to Split View

LUBRICATION - PUMPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 134999 *Qty: 1 Oil sump complete -Cars with A.C. $3,629.83
Location: - Prev | Next Part: 122051 *Qty: 1 Scavenge pump body complete $826.90
Location: 1 Prev | Next Part: 121906 *Qty: 2 Dowel $3.23
Location: 2 Prev | Next Part: 13543624 *Qty: 2 Stud $0.90
Location: 3 Prev | Next Part: 16100821 *Qty: 2 Nut $3.46
Location: 4 Prev | Next Part: 12601379 *Qty: 2 Washer Superseded
Location: 5 Prev | Next Part: 13516421 *Qty: 2 Stud $4.59
Location: 6 Prev | Next Part: 16100821 *Qty: 2 Nut $3.46
Location: 7 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 8 Prev | Next Part: 134936 *Qty: 1 Oil sump -With assembly 13499 Call
Location: 8 Prev | Next Part: 134998 *Qty: 1 Oil sump -With assembly 136132 Call
Location: 9 Prev | Next Part: 144254 *Qty: 1 Gasket $27.08
Location: 10 Prev | Next Part: 121929 *Qty: 4 Ring Call
Location: 11 Prev | Next Part: 124467 *Qty: 2 Bush $6.80
Location: 12 Prev | Next Part: 134930 *Qty: 2 Fitting $183.77
Location: 13 Prev | Next Part: 104280 *Qty: 1 Plug $6.54
Location: 14 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 15 Prev | Next Part: 122976 *Qty: 3 Heli-coil $13.76
Location: 16 Prev | Next Part: 125716 *Qty: 1 Dowel $3.65
Location: 17 Prev | Next Part: 10902324 *Qty: 1 Screw Superseded
Location: 18 Prev | Next Part: 11197773 *Qty: 1 Washer Superseded
Location: 19 Prev | Next Part: 11500321 *Qty: 2 Stud $0.90
Location: 20 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 21 Prev | Next Part: 11197773 *Qty: 2 Washer Superseded
Location: 22 Prev | Next Part: 13540820 *Qty: 2 Short stud Superseded
Location: 23 Prev | Next Part: 13541124 *Qty: 2 Long stud $8.18
Location: 24 Prev | Next Part: 15896214 *Qty: 4 Nut $0.90
Location: 25 Prev | Next Part: 11197773 *Qty: 4 Washer Superseded
Location: 26 Prev | Next Part: 102725 *Qty: 6 Dowel $0.90
Location: 27 Prev | Next Part: 124111 *Qty: 1 Cover for oil pump $76.63
Location: 28 Prev | Next Part: 134766 *Qty: 1 Driven gear $73.08
Location: 29 Prev | Next Part: 124924 *Qty: 1 Control gear $338.45
Location: 30 Prev | Next Part: 134767 *Qty: 1 Driving gear $203.51
Location: 31 Prev | Next Part: 10205620 *Qty: 2 Key $0.90
Location: 32 Prev | Next Part: 10734301 *Qty: 1 Split pin $0.90
Location: 33 Prev | Next Part: 102900 *Qty: 1 Nut $9.68
Location: 34 Prev | Next Part: 11198570 *Qty: 1 Washer $0.90
Location: 35 Prev | Next Part: 121960 *Qty: 1 Scavenge pump body -With assembly 122051 Call
Location: 36 Prev | Next Part: 109301 *Qty: 1 Front cover for pump $236.88
Location: 37 Prev | Next Part: 125075 *Qty: 1 External gear $229.70
Location: 38 Prev | Next Part: 134744 *Qty: 2 Driven gear $1,085.01
Location: 39 Prev | Next Part: 134745 *Qty: 1 Front driving gear $529.11
Location: 40 Prev | Next Part: 134746 *Qty: 1 Rear driving gear $955.83
Location: 41 Prev | Next Part: 109309 *Qty: 1 Coupling $16.78
Location: 42 Prev | Next Part: 109326 *Qty: 1 Chain $24.33
Location: 43 Prev | Next Part: 104011 *Qty: 1 Selflocking nut $12.56
Location: 44 Prev | Next Part: 136196 *Qty: 1 Right tension pad Call
Location: 45 Prev | Next Part: 136195 *Qty: 1 Left tension pad $171.35
Location: 46 Prev | Next Part: 11501421 *Qty: 1 Stud $0.90
Location: 47 Prev | Next Part: 11501821 *Qty: 1 Stud $4.24
Location: 48 Prev | Next Part: 11501721 *Qty: 1 Stud $0.90
Location: 49 Prev | Next Part: 11500321 *Qty: 2 Stud $0.90
Location: 50 Prev | Next Part: 11500521 *Qty: 2 Stud $2.54
Location: 51 Prev | Next Part: 15896214 *Qty: 8 Nut $0.90
Location: 52 Prev | Next Part: 11197773 *Qty: 8 Washer Superseded
Location: 53 Prev | Next Part: 11500020 *Qty: 2 Stud $0.90
Location: 54 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 55 Prev | Next Part: 12601279 *Qty: 2 Washer Superseded
Location: 56 Prev | Next Part: 104213 *Qty: 1 Sealing ring $0.90
Location: 57 Prev | Next Part: 137265 *Qty: 1 Oil delivery pipe right $173.79
Location: 58 Prev | Next Part: 137264 *Qty: 1 Oil delivery pipe left $167.01
Location: 59 Prev | Next Part: 123171 *Qty: 4 Clamp $4.75
Location: 60 Prev | Next Part: 123170 *Qty: 8 Clamp $69.73
Location: 61 Prev | Next Part: 10263460 *Qty: 2 Gasket Superseded
Location: 62 Prev | Next Part: 12354524 *Qty: 1 Stud $37.74
Location: 63 Prev | Next Part: 16100821 *Qty: 1 Nut $3.46
Location: 64 Prev | Next Part: 123622 *Qty: 1 Sealing ring $1.91
Location: 65 Prev | Next Part: 123192 *Qty: 1 Pipe $63.68
Location: 66 Prev | Next Part: 11500020 *Qty: 4 Nut $0.90
Location: 67 Prev | Next Part: 13679811 *Qty: 4 Washer $0.90
Location: 68 Prev | Next Part: 14496421 *Qty: 4 Washer $0.90
Location: 69 Prev | Next Part: 13539024 *Qty: 8 Nut $0.90
Location: 70 Prev | Next Part: 139951 *Qty: 8 Nut $1.05
Location: 71 Prev | Next Part: 14496301 *Qty: 8 Washer $0.91
Location: 72 Prev | Next Part: 12601379 *Qty: 1 Washer Superseded
Location: 73 Prev | Next Part: 11501921 *Qty: 1 Stud $3.75
Location: 74 Prev | Next Part: 103839 *Qty: 2 Ring $9.47
Location: 75 Prev | Next Part: 103838 *Qty: 2 Dowel $3.06
Location: 76 Prev | Next Part: 11198074 *Qty: 1 Washer $0.90
Location: 77 Prev | Next Part: 16043834 *Qty: 1 Screw $0.90
Location: 78 Prev | Next Part: 121947 *Qty: 1 Suction pipe rear $401.58
Location: 79 Prev | Next Part: 100332 *Qty: 1 Filter $14.40
Location: 80 Prev | Next Part: 144251 *Qty: 1 Gasket $1.28
Location: 81 Prev | Next Part: 121953 *Qty: 1 Rear cover pump $912.66
Location: 82 Prev | Next Part: 103944 *Qty: 2 Sealing ring $128.16
Location: 83 Prev | Next Part: 122428 *Qty: 1 Suction pipe front $52.51
Location: 84 Prev | Next Part: 122429 *Qty: 1 Filter $14.12
Location: 85 Prev | Next Part: 144251 *Qty: 1 Gasket $1.28
Location: 86 Prev | Next Part: 106900 *Qty: 1 Spring -Valid till engine Nr. 13507 -Not for engine Nr. 13493 $4.42
Location: 87 Prev | Next Part: 125885 *Qty: 1 Piston -Valid till engine Nr. 13507 -Not for engine Nr. 13493 $165.57
Location: 88 Prev | Next Part: 106237 *Qty: 1 Plug $69.91
Location: 89 Prev | Next Part: 106238 *Qty: 1 Spacer -Valid till engine Nr. 13507 -Not for engine Nr. 13493 $1.87
Location: 90 Prev | Next Part: 10264660 *Qty: 1 Gasket $5.90
Location: 91 Prev | Next Part: 11058076 *Qty: 1 Seeger $0.90
Location: 92 Prev | Next Part: 121306 *Qty: 1 Ball $3.41
Location: 93 Prev | Next Part: 121981 *Qty: 1 Spring $4.24
Location: 94 Prev | Next Part: 121972 *Qty: 1 Washer $3.57
Location: 95 Prev | Next Part: 12644424 *Qty: 2 Washer $0.90
Location: 96 Prev | Next Part: 137233 *Qty: 1 Bracket -For cars with catalyst Q.ty 2 $4.91
Location: 97 Prev | Next Part: 125321 *Qty: 1 Bushing -Valid from engine Nr. 13508 and for engine Nr. 13493 Call
Location: 98 Prev | Next Part: 135679 *Qty: 1 Spacer -Valid from engine Nr. 13508 and for engine Nr. 13493 $2.54
Location: 99 Prev | Next Part: 133550 *Qty: 1 Spring -Valid from engine Nr. 13508 and for engine Nr. 13493 $57.96
Location: 100 Prev | Next Part: 125885 *Qty: 1 Piston -Valid from engine Nr. 13508 and for engine Nr. 13493 $165.57

* Quantity shown indicates the number of pieces used in the diagram.
