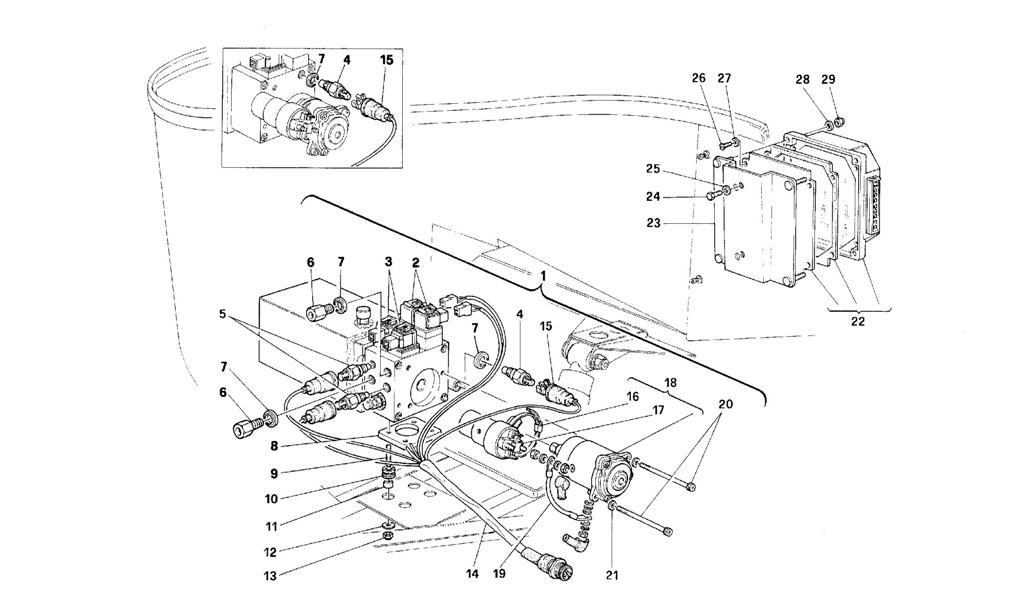

LIFTING SYSTEMS -UNITS-

Go to Split View

LIFTING SYSTEMS -UNITS-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 144512 *Qty: 1 Hydraulic unit assy -1st type - Valid for cars ... -See note $10,529.26
Location: 1 Prev | Next Part: 150246 *Qty: 1 Hydraulic unit assy -2nd type - Valid for cars ... -See note $10,584.95
Location: 2 Prev | Next Part: 141270 *Qty: 2 Solenoid valve Call
Location: 3 Prev | Next Part: 141271 *Qty: 2 Solenoid valve $1,011.73
Location: 4 Prev | Next Part: 138104 *Qty: 1 Switch $103.08
Location: 5 Prev | Next Part: 138105 *Qty: 2 Switch $103.08
Location: 6 Prev | Next Part: 137583 *Qty: 2 Union $49.73
Location: 7 Prev | Next Part: 142540 *Qty: 3 Ring $3.86
Location: 8 Prev | Next Part: 149086 *Qty: 1 Spacer $122.40
Location: 9 Prev | Next Part: 13541424 *Qty: 4 Stud bolt $0.90
Location: 10 Prev | Next Part: 103549 *Qty: 4 Fairlead $1.57
Location: 11 Prev | Next Part: 103550 *Qty: 4 Spacer $2.47
Location: 12 Prev | Next Part: 12643724 *Qty: 4 Washer $0.90
Location: 13 Prev | Next Part: 102948 *Qty: 4 Nut $0.90
Location: 14 Prev | Next Part: 150244 *Qty: 1 Cable $370.70
Location: 15 Prev | Next Part: 150581 *Qty: 3 Cap $31.22
Location: 16 Prev | Next Part: 150580 *Qty: 1 Clamp Call
Location: 17 Prev | Next Part: 143326 *Qty: 1 Switch $127.31
Location: 18 Prev | Next Part: 150556 *Qty: 1 Engine assy Call
Location: 19 Prev | Next Part: 150639 *Qty: 1 Electric cable $176.69
Location: 20 Prev | Next Part: 150637 *Qty: 2 Screw $3.38
Location: 21 Prev | Next Part: 150638 *Qty: 2 Washer Call
Location: 22 Prev | Next Part: 150248 *Qty: 1 Electronic unit assy -2nd type- -Valid for cars ... -See note $11,865.29
Location: 22 Prev | Next Part: 137967 *Qty: 1 Electronic unit assy -1st type- -Valid for cars ... -See note $5,626.92
Location: 23 Prev | Next Part: 137992 *Qty: 1 Bracket $162.06
Location: 24 Prev | Next Part: 10977624 *Qty: 2 Screw $0.90
Location: 25 Prev | Next Part: 10519377 *Qty: 2 Washer $0.90
Location: 26 Prev | Next Part: 10373211 *Qty: 4 Screw $0.90
Location: 27 Prev | Next Part: 14496101 *Qty: 4 Washer $0.90
Location: 28 Prev | Next Part: 14496424 *Qty: 4 Washer Superseded
Location: 29 Prev | Next Part: 102741 *Qty: 4 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
