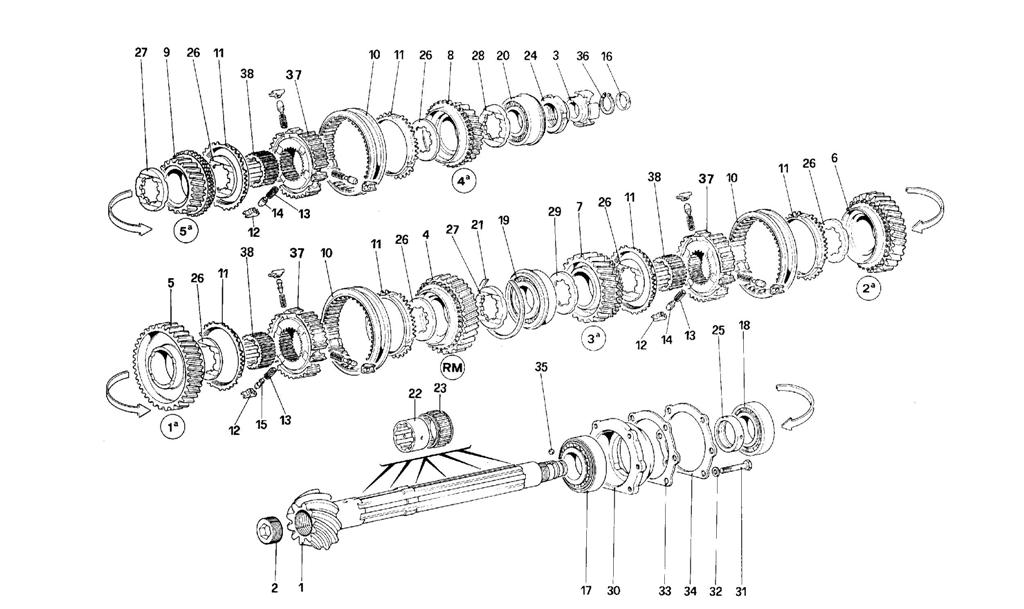

LAY SHAFT GEARS

LAY SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
- 70000623 1 4th gear complete series $4,593.63
- 70000625 1 5th gear complete series Unavailable
- 144853 1 Crown and pinion compl. -R10/29 -Valid for cars with catalyst $5,392.11
- 132413 1 Crown and pinion compl. -R11/30 -Not for cars with catalyst $8,400.71
- 70000621 1 2nd gear complete series $5,649.19
- 70000622 1 3rd gear complete series $2,147.29
1 144851 1 Output shaft -Valid for cars with catalyst -Not as spare parts -With assembly 144853 Unavailable
1 132415 1 Output shaft -Not for cars with catalyst -Not as spare parts -With assembly 132413 Unavailable
2 10270150 1 Plug $10.58
3 122145 1 Toothed wheel for pulse generator $331.82
3 70000619 0 Complete series of 1st and reverse gears $16,047.55
4 140663 1 Gear reverse -With assembly 70000619 $410.04
5 140083 1 Gear 1st speed -With assembly 70000619 $477.53
6 140084 1 Gear 2nd speed -With assembly 70000621 Unavailable
7 134294 1 Gear, 3th speed -With assembly 70000622 $827.92
8 134295 1 Gear, 4th speed -With assembly 70000623 $837.35
9 140082 1 Gear, 5th speed -With assembly 70000625 Unavailable
10 131804 3 Sleeve for synchronizer Unavailable
11 106040 6 Synchromesh ring $1,633.99
12 106042 9 Pad $243.21
13 106043 9 Spring $16.52
14 113412 6 Pin $34.06
15 106044 3 Pin $96.61
16 113087 1 Gasket $69.30
17 101636 1 Bearing $198.80
18 121822 1 Bearing $452.37
19 121819 1 Central bearing Unavailable
20 121820 1 Bearing $342.42
21 122113 1 Ring $1.20
22 104704 6 Bearing arce $693.51
23 101604 6 Roller cage $124.42
24 153068 1 Ring nut $49.00
25 122152 1 Spacer (As option Nr. 138136) $153.89
26 110175 6 Spacer Unavailable
27 122066 2 Spacer $186.80
28 122074 1 Spacer $55.01
29 110175 1 Spaer Unavailable
30 122000 1 Bush for bearing $403.83
31 16044031 6 Screw $5.42
32 127496 6 Washer $0.90
33 122080 1 Ditto, thickness mm. 2,4 $109.34
33 122076 1 Spacer thickness mm. 2 $14.74
33 122077 1 Ditto, thickness mm. 1,6 $57.81
33 122078 1 Ditto, thickness mm. 1,8 $56.07
33 122079 1 Ditto, thickness mm. 2,2 $14.74
34 122076 1 Spacer $14.74
35 101611 1 Ball Unavailable
36 11067276 1 Ring Unavailable
37 106039 3 Synchronizer body $705.91
38 146230 3 Adaptal bushing for synchronizer $584.66

* Quantity shown indicates the number of pieces used in the diagram.
