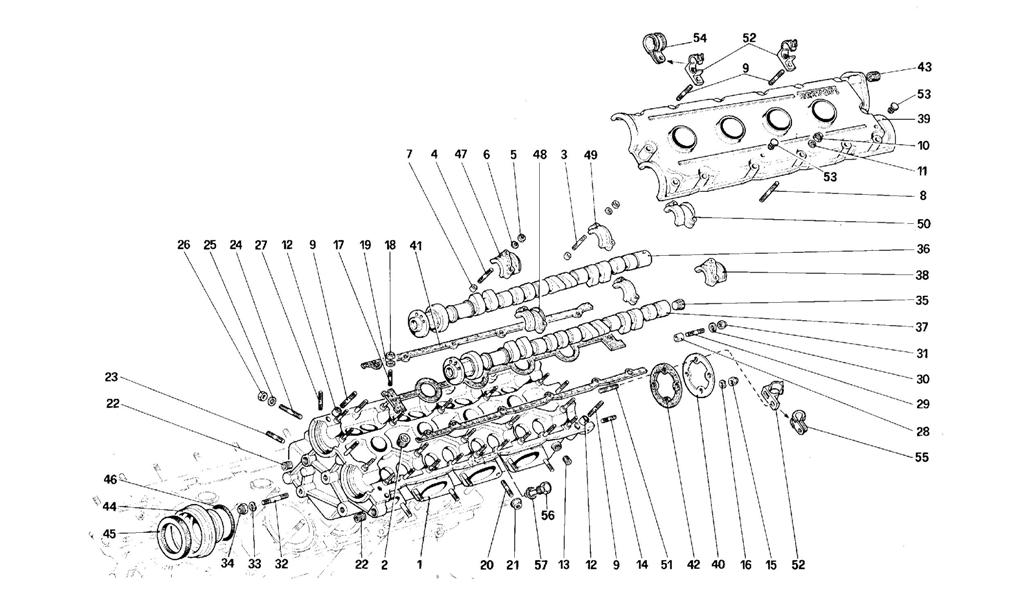

L.H. CYLINDER HEAD

Go to Split View

L.H. CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 134205 *Qty: 1 Left intake camshaft complete $2,019.40
Location: - Prev | Next Part: 134207 *Qty: 1 Left exhaust camshaft complete $2,019.40
Location: - Prev | Next Part: 134222 *Qty: 1 Left cylinder head, compl. $14,886.14
Location: - Prev | Next Part: 121896 *Qty: 1 Left head cover compl. -Not as spare parts -With assembly 134222 Call
Location: 1 Prev | Next Part: 133747 *Qty: 1 Left cylinder head -Not as spare parts - With assembly 134222 Call
Location: 2 Prev | Next Part: 10269750 *Qty: 5 Plug $2.07
Location: 3 Prev | Next Part: 102735 *Qty: 12 Stud for intermediate caps $24.51
Location: 4 Prev | Next Part: 102754 *Qty: 8 Stud for outer caps $6.30
Location: 5 Prev | Next Part: 15896214 *Qty: 20 Nut $0.90
Location: 6 Prev | Next Part: 11197770 *Qty: 20 Washer Superseded
Location: 7 Prev | Next Part: 102725 *Qty: 20 Dowel $1.14
Location: 8 Prev | Next Part: 13541624 *Qty: 10 Stud $11.05
Location: 9 Prev | Next Part: 13541724 *Qty: 4 Stud $1.38
Location: 10 Prev | Next Part: 100044 *Qty: 14 Selflocking nut $0.90
Location: 11 Prev | Next Part: 11197773 *Qty: 14 Washer Superseded
Location: 12 Prev | Next Part: 121907 *Qty: 2 Dowel $20.67
Location: 13 Prev | Next Part: 14326150 *Qty: 3 Plug $0.90
Location: 14 Prev | Next Part: 11500321 *Qty: 3 Stud $0.90
Location: 15 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 16 Prev | Next Part: 12601279 *Qty: 4 Washer Superseded
Location: 17 Prev | Next Part: 13543324 *Qty: 8 Stud $0.90
Location: 18 Prev | Next Part: 16100821 *Qty: 10 Nut $3.57
Location: 19 Prev | Next Part: 11198074 *Qty: 10 Washer $0.90
Location: 20 Prev | Next Part: 144773 *Qty: 8 Stud securing exhaust manifold $31.85
Location: 21 Prev | Next Part: 138392 *Qty: 8 Nut $2.44
Location: 22 Prev | Next Part: 13526070 *Qty: 2 Heli - coil $4.58
Location: 23 Prev | Next Part: 13541624 *Qty: 2 Short stud $11.05
Location: 24 Prev | Next Part: 13541724 *Qty: 6 Long stud $1.38
Location: 25 Prev | Next Part: 11197770 *Qty: 8 Washer Superseded
Location: 26 Prev | Next Part: 15896214 *Qty: 8 Nut $0.90
Location: 27 Prev | Next Part: 13543524 *Qty: 2 Stud for fixing suction manifold (front part) $0.90
Location: 28 Prev | Next Part: 102725 *Qty: 2 Dowel $1.14
Location: 29 Prev | Next Part: 13541124 *Qty: 2 Stud for fixing calotte support $8.43
Location: 30 Prev | Next Part: 11197773 *Qty: 2 Washer Superseded
Location: 31 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 32 Prev | Next Part: 13543721 *Qty: 3 Stud $0.90
Location: 33 Prev | Next Part: 12601379 *Qty: 3 Washer Superseded
Location: 34 Prev | Next Part: 16104411 *Qty: 3 Nut $0.90
Location: 35 Prev | Next Part: 10269750 *Qty: 1 Plug $2.07
Location: 36 Prev | Next Part: 134201 *Qty: 1 Left intake camshaft -With assembly 134205 Call
Location: 37 Prev | Next Part: 134203 *Qty: 1 Left exhaust camshaft -With assembly 134207 Call
Location: 38 Prev | Next Part: 126203 *Qty: 1 Rear cap exhaust side -With complete cylind. head Call
Location: 39 Prev | Next Part: 121959 *Qty: 1 Left head cover -With complete head cover Call
Location: 40 Prev | Next Part: 103796 *Qty: 1 Rear cover $418.46
Location: 41 Prev | Next Part: 150084 *Qty: 1 Gasket $89.95
Location: 42 Prev | Next Part: 150075 *Qty: 1 Gasket $27.53
Location: 43 Prev | Next Part: 120711 *Qty: 1 Heli-coil $13.66
Location: 44 Prev | Next Part: 144973 *Qty: 2 Front cover -Valid after depletion of 117257 Call
Location: 45 Prev | Next Part: 163987 *Qty: 2 Sealing ring $12.20
Location: 46 Prev | Next Part: 117275 *Qty: 2 Sealing ring $6.46
Location: 47 Prev | Next Part: 117042 *Qty: 1 Front cap inlet side -With compl. cylinder head $132.84
Location: 48 Prev | Next Part: 117041 *Qty: 1 Front cap exhaust side -With compl. cylinder head Call
Location: 49 Prev | Next Part: 126811 *Qty: 6 Intermediate cap -With compl. cylinder head Call
Location: 50 Prev | Next Part: 126202 *Qty: 1 Rear cap inlet side -With compl. cylinder head Call
Location: 51 Prev | Next Part: 13541124 *Qty: 1 Stud $8.43
Location: 52 Prev | Next Part: 129544 *Qty: 3 Clip -For cars with catalyst Q.ty 1 $2.39
Location: 53 Prev | Next Part: 14592487 *Qty: 2 Plug $0.90
Location: 54 Prev | Next Part: 10441290 *Qty: 1 Bracket -Valid for cars with catalyst $0.90
Location: 55 Prev | Next Part: 10441790 *Qty: 1 Bracket -Valid for cars with catalyst $0.97
Location: 56 Prev | Next Part: 127545 *Qty: 4 Plug -Not for cars with catalyst $31.15
Location: 57 Prev | Next Part: 10257060 *Qty: 4 Gasket -Not for cars with catalyst $0.90

* Quantity shown indicates the number of pieces used in the diagram.
