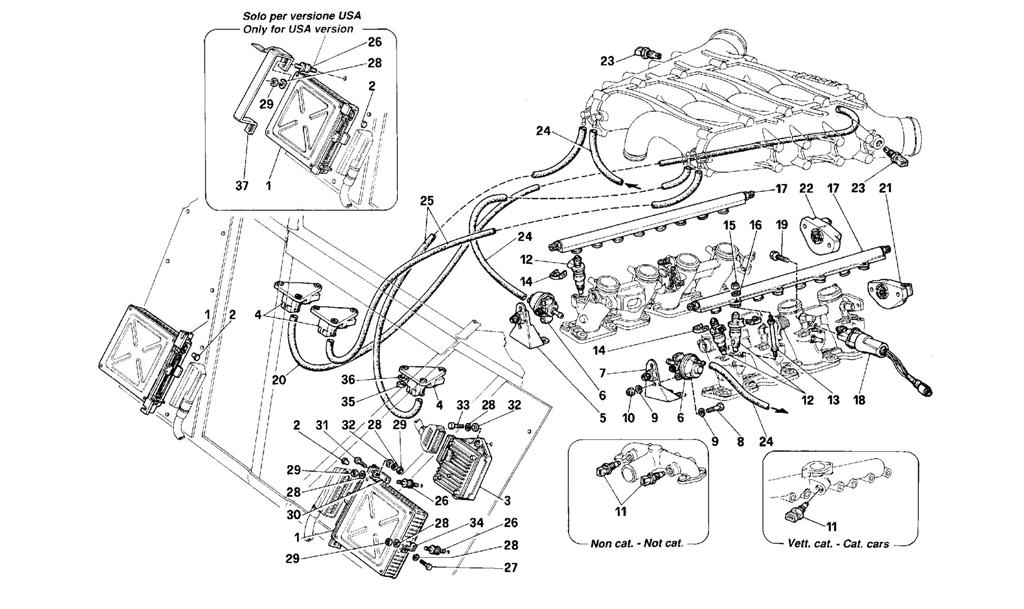

INJECTION DEVICE

Go to Split View

INJECTION DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 142778 *Qty: 2 Control unit -Valid for USA $2,962.87
Location: 1 Prev | Next Part: 134527 *Qty: 2 Control unit -Not for cars with catalyst $3,038.05
Location: 1 Prev | Next Part: 143401 *Qty: 2 Control unit -Valid for cars with catalyst -Not for USA Call
Location: 2 Prev | Next Part: 139402 *Qty: 2 Plug -Not for USA- $1.38
Location: 2 Prev | Next Part: 148199 *Qty: 2 Plug -Valid for USA- $1.06
Location: 3 Prev | Next Part: 136615 *Qty: 1 Module $3,928.85
Location: 4 Prev | Next Part: 134528 *Qty: 3 Sensor $552.30
Location: 5 Prev | Next Part: 136169 *Qty: 1 Support $350.97
Location: 6 Prev | Next Part: 134530 *Qty: 2 Regulator Call
Location: 7 Prev | Next Part: 136190 *Qty: 1 Support $164.60
Location: 8 Prev | Next Part: 10902624 *Qty: 4 Screw $0.90
Location: 9 Prev | Next Part: 12604279 *Qty: 8 Washer $0.90
Location: 10 Prev | Next Part: 102741 *Qty: 4 Nut $0.51
Location: 11 Prev | Next Part: 125380 *Qty: 2 Sensor Call
Location: 12 Prev | Next Part: 134531 *Qty: 16 Jet Call
Location: 13 Prev | Next Part: 133106 *Qty: 8 Pin $70.81
Location: 14 Prev | Next Part: 130402 *Qty: 16 Spring $5.11
Location: 15 Prev | Next Part: 15896214 *Qty: 8 Nut $0.90
Location: 16 Prev | Next Part: 12601279 *Qty: 8 Washer Superseded
Location: 17 Prev | Next Part: 133108 *Qty: 2 Tank manifold assy Call
Location: 18 Prev | Next Part: 133528 *Qty: 1 Actuator Call
Location: 19 Prev | Next Part: 138668 *Qty: 3 Screw $2.62
Location: 20 Prev | Next Part: 138505 *Qty: 1 Tube Call
Location: 21 Prev | Next Part: 137205 *Qty: 1 L.H. potentiometer Call
Location: 22 Prev | Next Part: 137206 *Qty: 1 R.H. potentiometer Call
Location: 23 Prev | Next Part: 130400 *Qty: 2 Sensor $208.15
Location: 24 Prev | Next Part: 118901 *Qty: 2 Pipe $6.26
Location: 25 Prev | Next Part: 122126 *Qty: 2 Pipe $11.18
Location: 26 Prev | Next Part: 113021 *Qty: 6 Plug $11.45
Location: 27 Prev | Next Part: 10977521 *Qty: 2 Screw $0.90
Location: 28 Prev | Next Part: 127493 *Qty: 14 Washer Superseded
Location: 29 Prev | Next Part: 15896470 *Qty: 10 Nut $0.90
Location: 30 Prev | Next Part: 138343 *Qty: 4 Bracket $1.90
Location: 31 Prev | Next Part: 10977624 *Qty: 4 Screw $0.90
Location: 32 Prev | Next Part: 12637824 *Qty: 6 Washer $0.90
Location: 33 Prev | Next Part: 10978021 *Qty: 2 Screw $0.90
Location: 34 Prev | Next Part: 138032 *Qty: 1 R.H. bracket -Not for USA- $2.23
Location: 34 Prev | Next Part: 61675800 *Qty: 1 L.H. bracket -Not for USA- $15.75
Location: 34 Prev | Next Part: 148714 *Qty: 1 R.H. bracket -Valid for USA- $5.71
Location: 34 Prev | Next Part: 148715 *Qty: 1 L.H. bracket -Valid for USA- $5.76
Location: 35 Prev | Next Part: 169180 *Qty: 9 Nut $0.90
Location: 36 Prev | Next Part: 12601174 *Qty: 9 Washer $0.90
Location: 37 Prev | Next Part: 142751 *Qty: 1 R.H. bracket -Valid for USA- $65.04
Location: 37 Prev | Next Part: 142752 *Qty: 1 L.H. bracket -Valid for USA- $65.04

* Quantity shown indicates the number of pieces used in the diagram.
