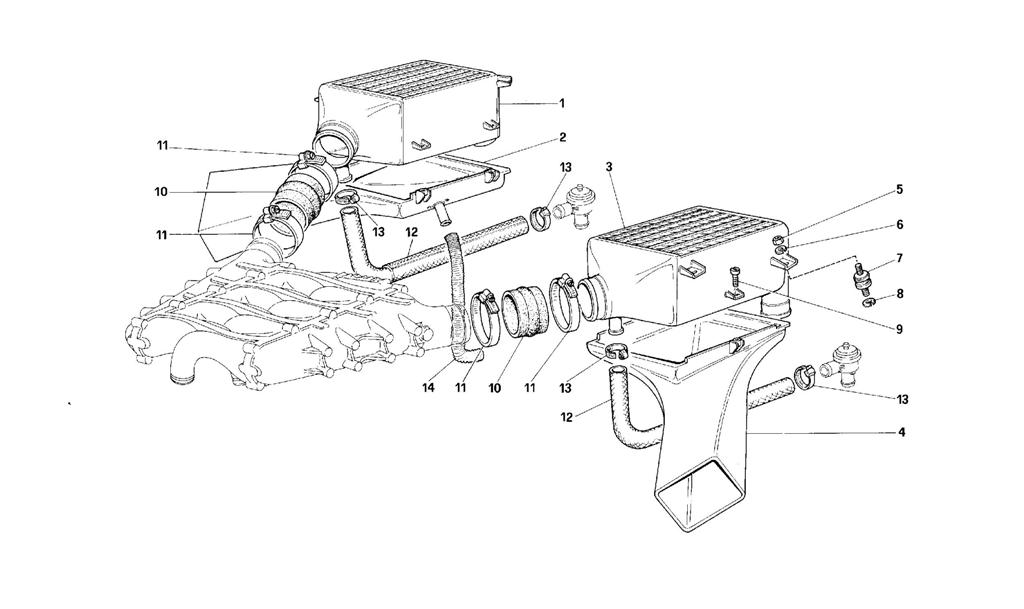

HEAT EXCHANGERS

Go to Split View

HEAT EXCHANGERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 134540 *Qty: 1 Heat exchanger $4,452.32
Location: 2 Prev | Next Part: 134542 *Qty: 1 Air inlet for R.H. exchanger -Not for USA $1,830.38
Location: 2 Prev | Next Part: 148419 *Qty: 1 Air inlet for R.H. exchanger -Valid for USA $1,185.14
Location: 3 Prev | Next Part: 134541 *Qty: 1 Heat exchanger $4,452.32
Location: 4 Prev | Next Part: 134543 *Qty: 1 Air inlet for L.H. exchanger -Not for USA $1,830.38
Location: 4 Prev | Next Part: 148420 *Qty: 1 Air inlet for L.H. exchanger -Valid for USA $1,185.14
Location: 5 Prev | Next Part: 102948 *Qty: 6 Nut $0.90
Location: 6 Prev | Next Part: 12643724 *Qty: 6 Washer $0.90
Location: 7 Prev | Next Part: 102947 *Qty: 6 Support $18.79
Location: 8 Prev | Next Part: 119363 *Qty: 6 Washer (as option) $7.18
Location: 8 Prev | Next Part: 119364 *Qty: 6 Washer (as option) $21.01
Location: 8 Prev | Next Part: 119365 *Qty: 6 Washer $10.26
Location: 9 Prev | Next Part: 13274211 *Qty: 6 Screw $0.90
Location: 10 Prev | Next Part: 134298 *Qty: 2 Pipe union $611.94
Location: 11 Prev | Next Part: 122890 *Qty: 4 Clamp $2.14
Location: 12 Prev | Next Part: 136883 *Qty: 2 Tube $342.97
Location: 13 Prev | Next Part: 168220 *Qty: 4 Clamp $0.90
Location: 14 Prev | Next Part: 148302 *Qty: 2 Pipe -Valid for USA- $37.26

* Quantity shown indicates the number of pieces used in the diagram.
