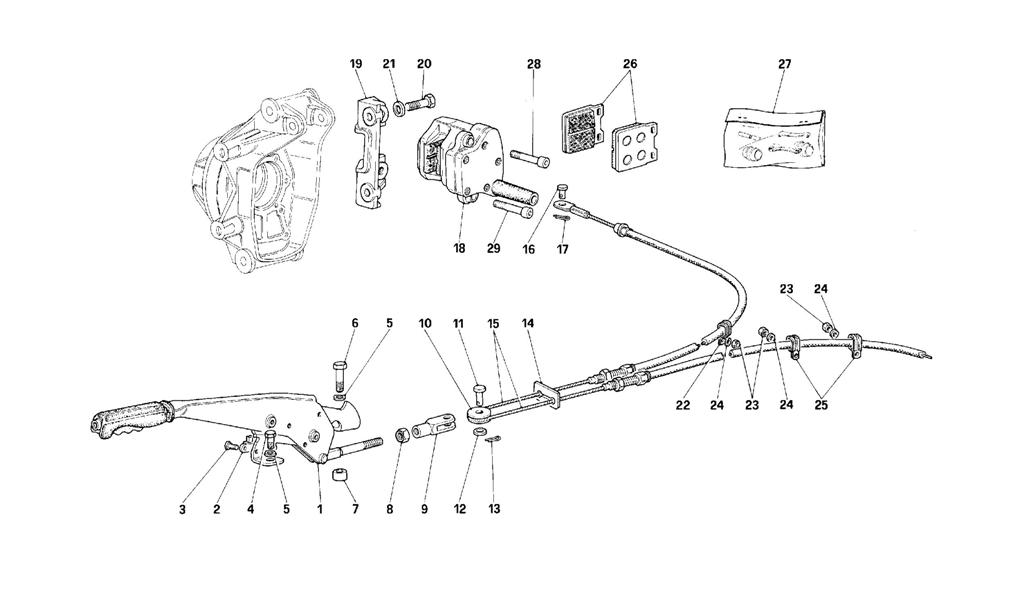

HAND-BRAKE CONTROL AND CALIPER

Go to Split View

HAND-BRAKE CONTROL AND CALIPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 125462 *Qty: 1 Hand brake lever $291.00
Location: 2 Prev | Next Part: 122043 *Qty: 1 Switch $94.06
Location: 3 Prev | Next Part: 13271911 *Qty: 2 Screw $0.90
Location: 4 Prev | Next Part: 16043221 *Qty: 1 Screw $0.90
Location: 5 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 6 Prev | Next Part: 16043724 *Qty: 1 Screw $0.90
Location: 7 Prev | Next Part: 136670 *Qty: 1 Spacer $5.72
Location: 8 Prev | Next Part: 16102314 *Qty: 1 Nut $0.90
Location: 9 Prev | Next Part: 10248271 *Qty: 1 Fork $18.58
Location: 10 Prev | Next Part: 122091 *Qty: 1 Rulley $9.47
Location: 11 Prev | Next Part: 10050814 *Qty: 1 Pin $3.29
Location: 12 Prev | Next Part: 13550301 *Qty: 1 Washer $0.90
Location: 13 Prev | Next Part: 10734201 *Qty: 1 Cotter Call
Location: 14 Prev | Next Part: 122092 *Qty: 1 Plate $1.36
Location: 15 Prev | Next Part: 135005 *Qty: 1 Cable $352.57
Location: 16 Prev | Next Part: 142531 *Qty: 2 Pin $15.38
Location: 17 Prev | Next Part: 10794801 *Qty: 2 Cotter $0.90
Location: 18 Prev | Next Part: 149248 *Qty: 1 R.H. caliper with pads Call
Location: 18 Prev | Next Part: 149249 *Qty: 1 L.H. caliper with pads $2,840.19
Location: 19 Prev | Next Part: 135142 *Qty: 2 Bracket $900.74
Location: 20 Prev | Next Part: 15540521 *Qty: 4 Screw $0.90
Location: 21 Prev | Next Part: 11198679 *Qty: 4 Washer $0.97
Location: 22 Prev | Next Part: 10441790 *Qty: 2 Bracket $0.94
Location: 22 Prev | Next Part: 10441990 *Qty: 1 Bracket (only for car with lifting system) $0.94
Location: 23 Prev | Next Part: 134041 *Qty: 3 Nut $1.20
Location: 24 Prev | Next Part: 11197770 *Qty: 3 Washer Superseded
Location: 25 Prev | Next Part: 10441290 *Qty: 2 Bracket $0.90
Location: 25 Prev | Next Part: 10441790 *Qty: 2 Bracket (only for car with lifting system) $0.94
Location: 26 Prev | Next Part: 149250 *Qty: 1 Set of pads Call
Location: 27 Prev | Next Part: 138969 *Qty: 2 Overhaul kit caliper (composed with pins and rubber boots) $269.12
Location: 28 Prev | Next Part: 14308421 *Qty: 2 Screw $2.28
Location: 29 Prev | Next Part: 139759 *Qty: 2 Screw $92.46

* Quantity shown indicates the number of pieces used in the diagram.
